Product Introduction:

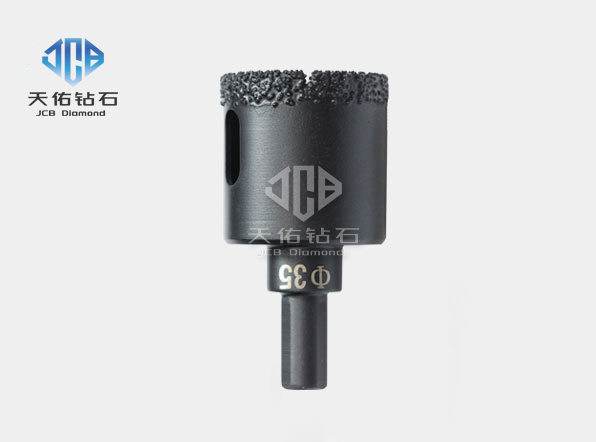

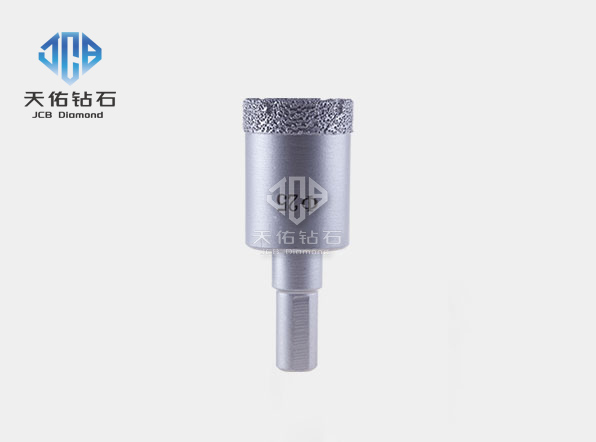

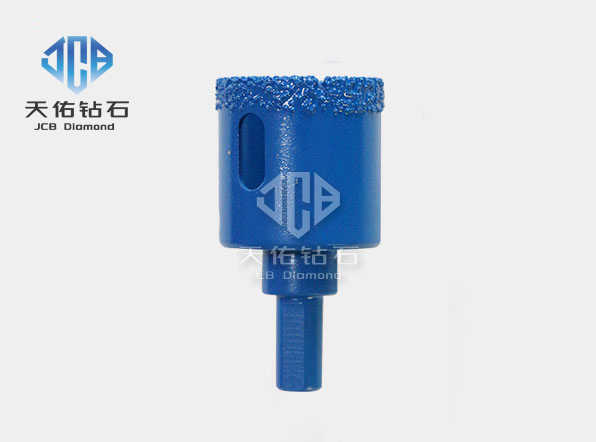

[Product Name]: Brazing Triangular Shank Drill Bit/Hexagonal Shank Drill Bit/Bath Drill Bit/M10 Angle Grinder Drill Bit/M14 Brazing Hole Opener.
[Process]: New brazing process.
[Material]: One-piece high manganese steel matrix + high-quality diamond particles.
[Product Features]: This product is specially developed for opening holes in super-hard materials such as stone. It combines the sharpness of the glass hole opener and the durability of the sintered hole opener. It can easily open holes in hard tiles/marble, etc.! A new brazing process is used, which can firmly fix the diamond particles on the substrate and is not easy to fall off. The diamond has high density, is sharp, more wear-resistant, and has good effect!
There is no need to frequently replace the grinding head, saving working time, greatly improving production and processing efficiency, and using a high-strength steel substrate, without the safety hazard caused by fragmentation and flying out.
[Scope of application]: marble, quartz stone, ceramic tile, artificial stone, glass brick, vitrified brick, ordinary glass, ceramic and other openings.
[Matching model]: hand drill, rechargeable drill, electric hammer drill, angle grinder
Specifications of brazed diamond drill bits
| Product Name | Outer Diameter（mm） | Grit |
| Round shank drill bit/triangular shank drill bit/hexagonal shank drill bit/round shank triangular shank M10 | Ø6-Ø60 | 40/60/80 |
| Brazed/Sintered M10/M14 | Ø6-Ø75 | 40/60 |
| Round handle triangular handle M10/twill triangular handle | Ø6-Ø60 | 40/60 |
| Basin Drill Bit | Ø40/Ø45/Ø50 | 40 |
Precautions：
The drill bit is tilted 45 degrees with the opening surface, the positioning crescent groove is opened, and then the hole is opened vertically.
For dry and wet opening, it is recommended to add water to extend the use time.
Make sure that the thickness of the opening plate is less than the opening depth of the drill bit.
M10 drill bit is applicable to 100-type angle grinder.
Round handle/triangular handle/hexagonal handle drill bits are applicable to hand drills.
Round handle/triangular handle/hexagonal handle drill bits are applicable to electric hammer drills.
Service
Welcome to consult offline, which can provide detailed drawings, packaging, and quotations, as well as other customized requirements.
