Product introduction:

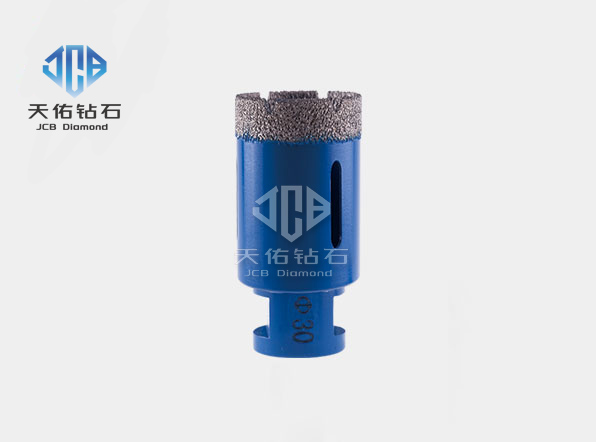

[Product name]: Brazing triangular shank drill bit/hexagonal shank drill bit/basin drill bit/M10 angle grinder drill bit/M14 brazing hole opener.
[Process]: New brazing process.
[Material]: One-piece high manganese steel matrix + high-quality diamond particles.
[Product features]: This product is specially developed for opening holes in super-hard materials such as stone. It combines the sharpness of the glass hole opener and the durability of the sintered hole opener. It can easily open holes in hard tiles/marble, etc.! The new brazing process is adopted, which can firmly fix the diamond particles on the matrix and is not easy to fall off. The diamond has a high density, is sharp, more wear-resistant, and has good effect! There is no need to replace the grinding head frequently, which saves working time and greatly improves production and processing efficiency. It uses a high-strength steel matrix without safety hazards caused by fragmentation and flying out.
[Scope of application]: Opening holes in marble, quartz stone, ceramic tile, artificial stone, glass brick, vitrified brick, ordinary glass, ceramics, etc.
【Matching models】: hand drill, cordless drill, electric hammer drill, angle grinder.
Brazed Diamond Drill Bit Specifications
| Product name | Outer diameter（mm）Diameter | Grit |
| Round shank drill bit/triangular shank drill bit/hexagonal shank drill10 | Ø6-Ø60 | 40/60/80 |
| Brazing/sintering M10/M14 | Ø6-Ø75 | 40/60 |
| Round shank triangular shank M10/twill triangular shank | Ø6-Ø60 | 40/60 |
| Bathroom drill bit | Ø40/Ø45/Ø50 | 40 |
Precautions:
The drill bit is tilted 45 degrees to the opening surface, the positioning crescent groove is opened, and then the hole is opened vertically.
For wet and dry opening, it is recommended to add water to extend the use time.
Make sure that the thickness of the opening plate is less than the opening depth of the drill bit.
M10 drill bit for 100-type angle grinder is applicable.
Round shank/triangular shank/hexagonal shank drill bits are applicable for hand drills.
Round shank/triangular shank/hexagonal shank drill bits are applicable for electric hammer drills.
