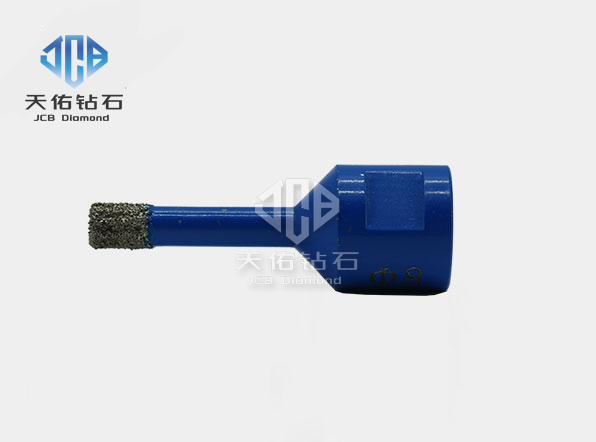

[Product name]: Brazing triangular shank drill bit/hexagonal shank drill bit/basin drill bit/M10 angle grinder drill bit/M14 brazing hole opener.
[Process]: New brazing process.
[Material]: One-piece high manganese steel matrix + high-quality diamond particles.
[Product features]: This product is specially developed for opening holes in super-hard materials such as stone. It combines the sharpness of the glass hole opener and the durability of the sintered hole opener. It can easily open holes in hard tiles/marble, etc.! The new brazing process is adopted, which can firmly fix the diamond particles on the matrix and is not easy to fall off. The diamond has high density, is sharp, more wear-resistant and has good effect! There is no need to replace the grinding head frequently, saving working time, greatly improving production and processing efficiency, and using high-strength steel matrix, there is no safety hazard caused by fragmentation and flying out.
[Scope of application]: marble, quartz stone, ceramic tile, artificial stone, glass brick, vitrified brick, ordinary glass, ceramic and other openings.
[Matching model]: hand drill, rechargeable drill, electric hammer drill, angle grinder
Specification table of brazed diamond drill bits
Round handle drill bit/triangular handle drill bit/hexagonal handle drill bit/round handle triangular handle M10
| Product name Description | Outer diameter（mm）Diameter | Material |
| Ø6-Ø60 | 40/60/80 | |
| Brazing/sintering M10/M14 | Ø6-Ø75 | 40/60 |
| Round handle triangular handle M10/twill triangular handle | Ø6-Ø60 | 40/60 |
| Bathroom drill bit | Ø40/Ø45/Ø50 | 40 |
Precautions:
The drill bit is tilted 45 degrees to the opening surface, the positioning crescent groove is opened, and then the hole is opened vertically.
For wet and dry drilling, it is recommended to add water to extend the use time.
Make sure that the thickness of the drilling plate is less than the drilling depth of the drill.
Applicable to 100-type angle grinder M10 drill.
Hand drills are suitable for round handle/triangular handle/hexagonal handle drills.
Electric hammer drills are suitable for round handle/triangular handle/hexagonal handle drills.
Service
Welcome to consult offline, which can provide detailed drawings, packaging, quotations, and other customized requirements.
