Products Description
Coarse Synthetic Diamond

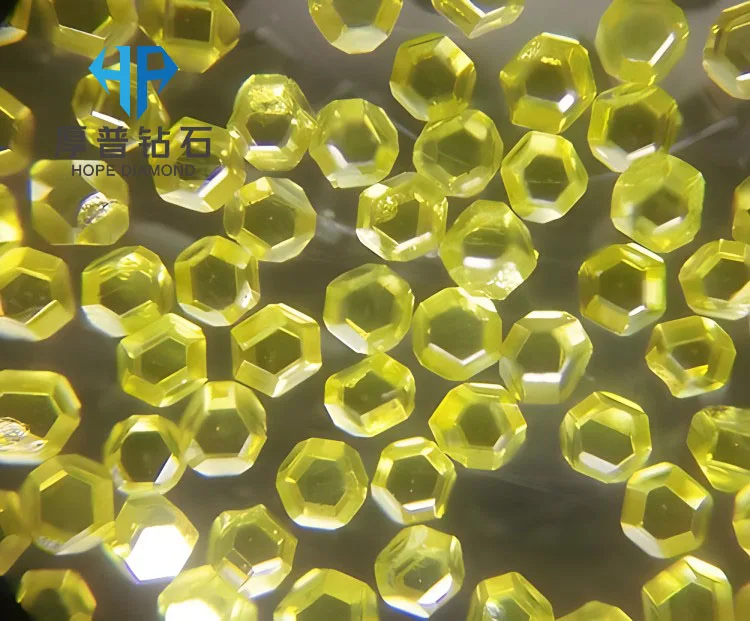

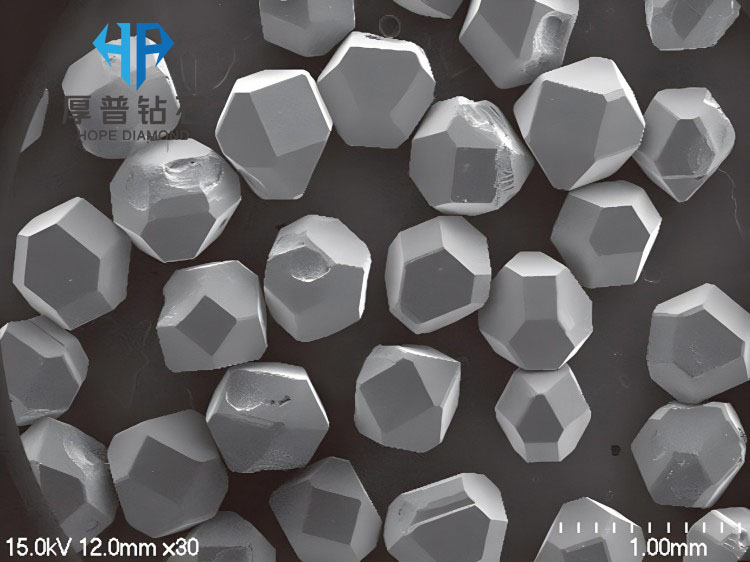

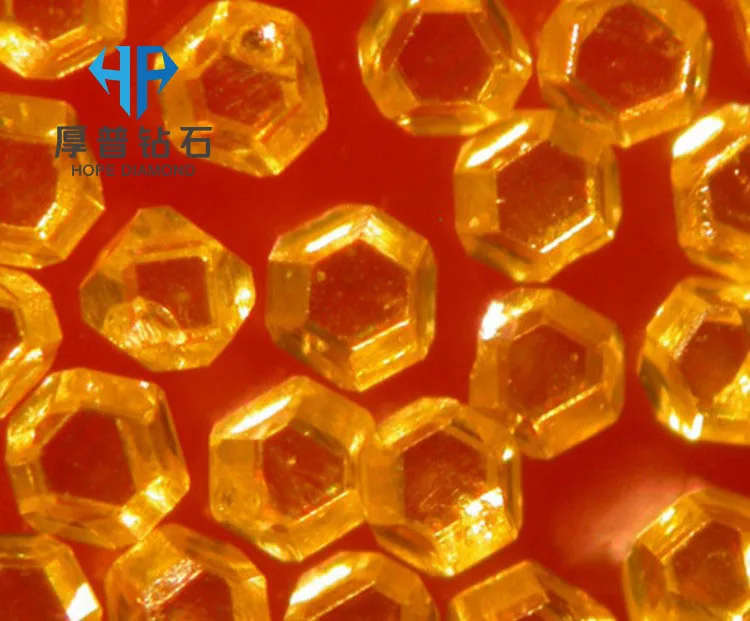

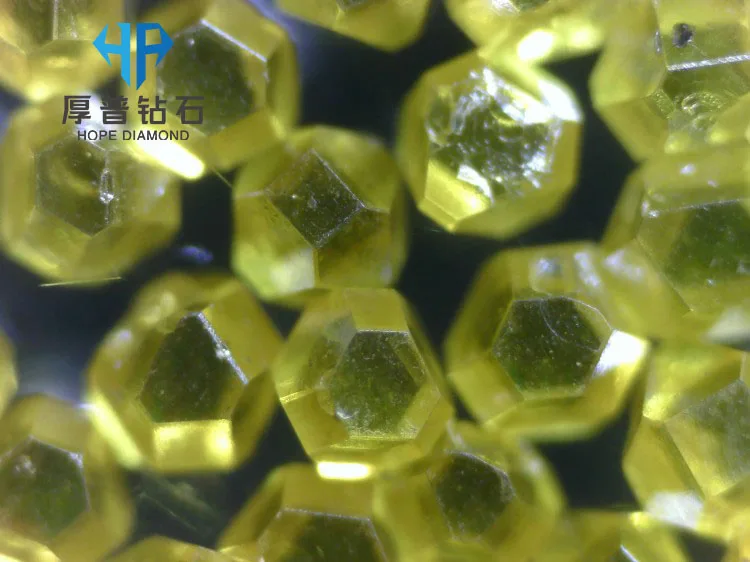

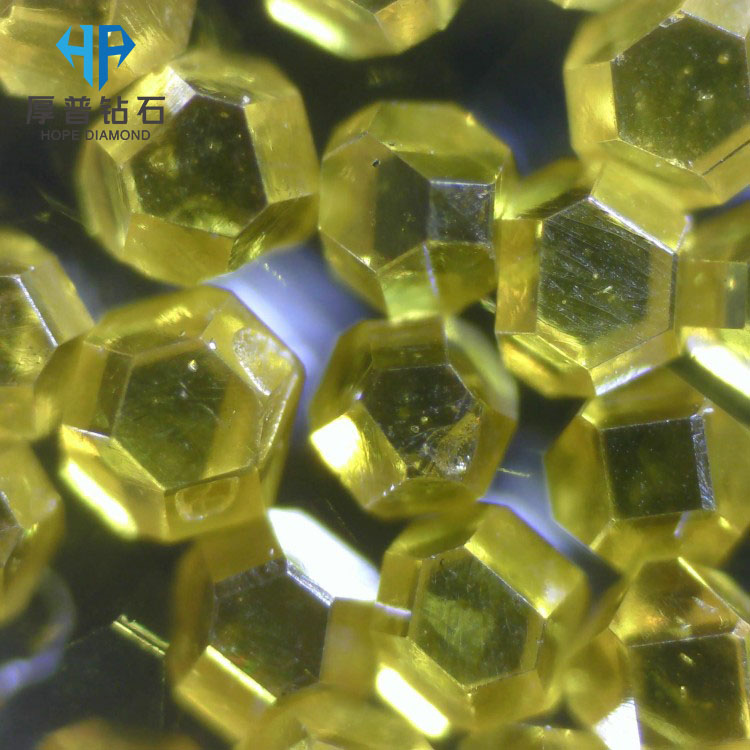

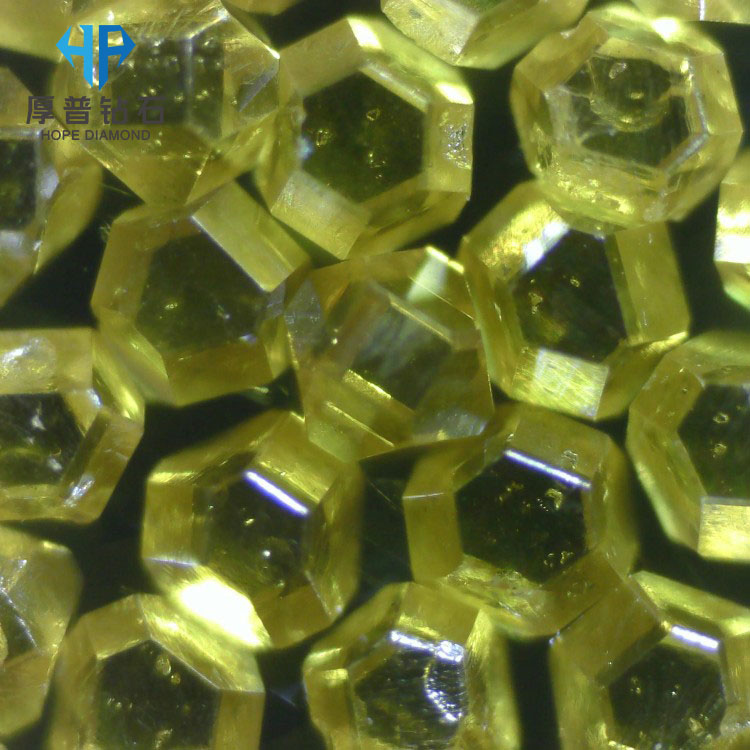

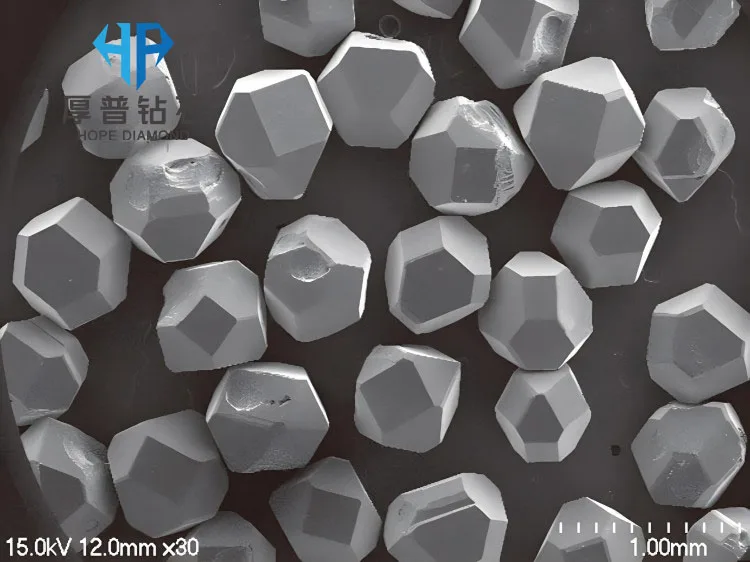

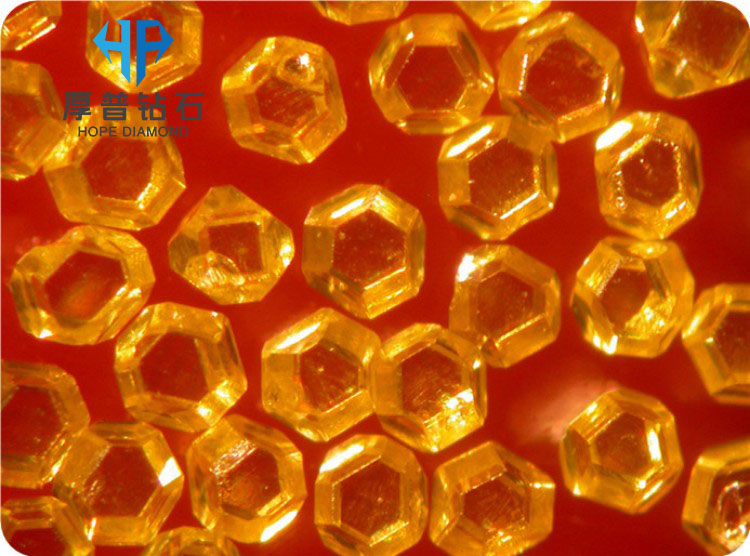

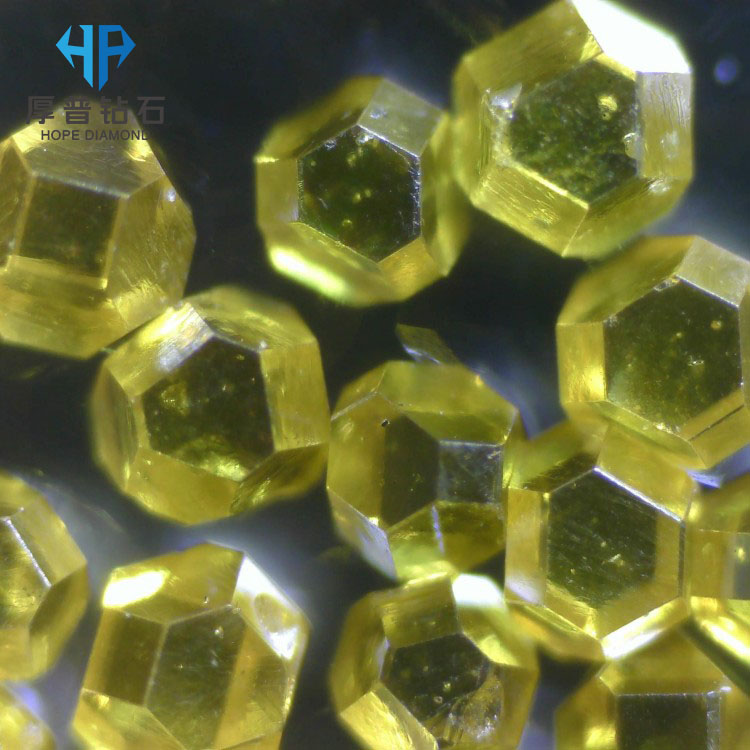

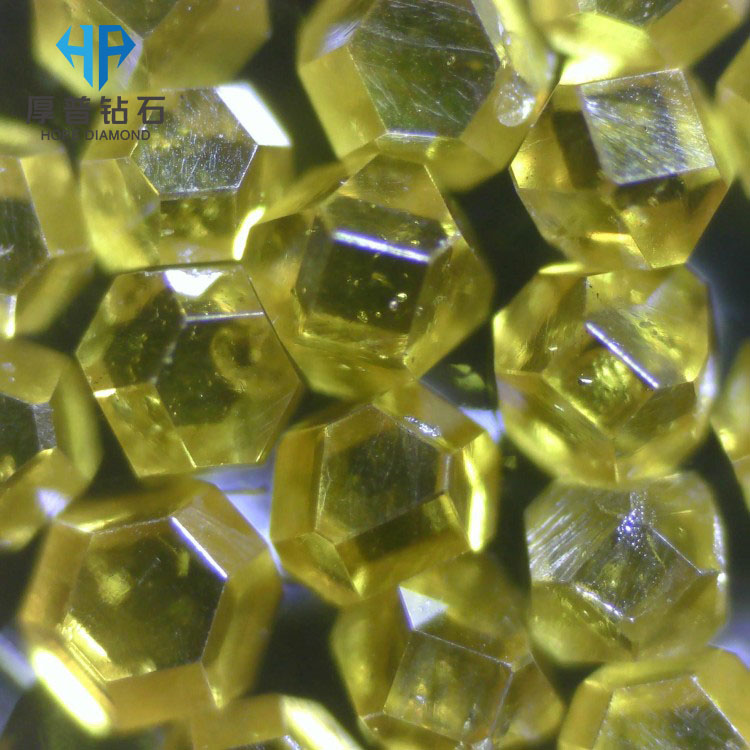

The Hope series of Synthetic single crystal diamond coarse grains refers to the coarse grain size of diamond from 20/25 to 50/60. This series of products are golden-yellow crystals with complete and hexahedral structure, low impurity content, good translucency, outstanding static strength, impact toughness and thermal stability.
The Hope series of Synthetic single crystal diamond coarse grains refers to the coarse grain size of diamond from 20/25 to 50/60. This series of products are golden-yellow crystals with complete and hexahedral structure, low impurity content, good translucency, outstanding static strength, impact toughness and thermal stability.
The Hope series diamonds are mainly used in the manufacture of diamond saw blades, diamond rope saws, diamond thin-wall drills, diamond grinding blocks, diamond rollers, geological drilling tools and brazing tools, etc. They are widely used in the industries of stone processing, cutting of reinforced concrete, construction of road and bridge, glass processing, oil and gas drilling, and mechanical processing.
Product Paramenters

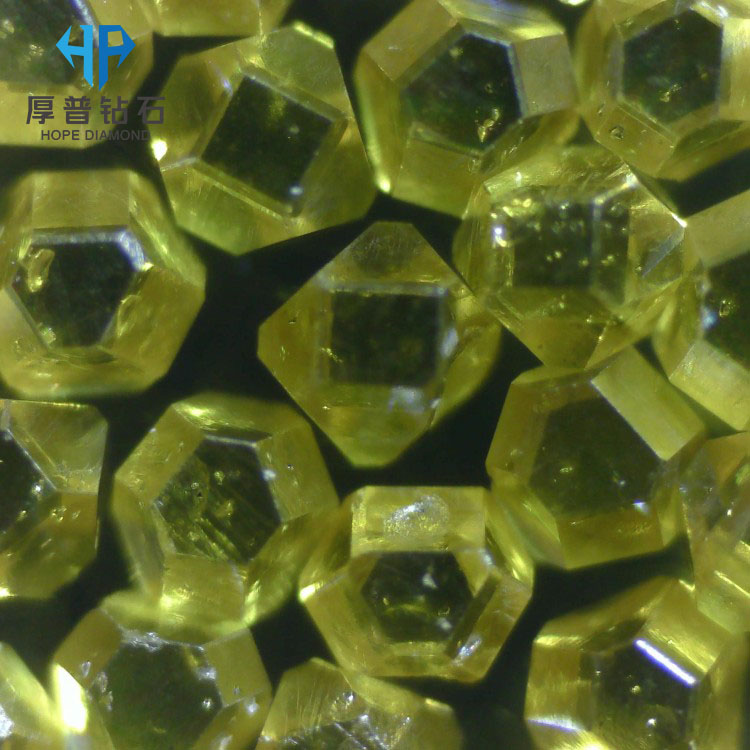

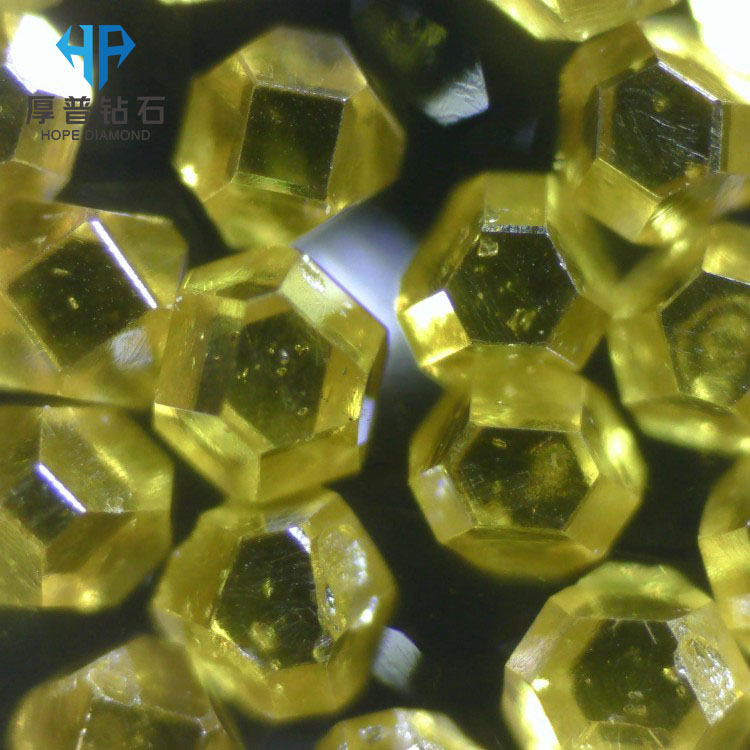

HSD90 | Features: Complete hexoctahedral crystal structure, minimal impurities, high static strength, impact toughness (TI), and thermal stability (TTI). Meets international standards with superior wear resistance. Applications: Ideal for high-intensity cutting, drilling, and brazing tools. Used in processing reinforced concrete, asphalt, hard granite (F=20), and high-performance geological drill bits. |
HSD80 | Features: Complete hexoctahedral crystal structure, minimal impurities, high static strength, impact toughness (TI), and thermal stability (TTI). Excellent wear resistance. Applications: Ideal for high-intensity cutting, drilling, brazing, and electroplating tools. Used in reinforced concrete, hard granite (F=15), high-hardness ceramics, and engineering drill bits. |
HSD70 | Features: Hexoctahedral crystal structure, few impurities, high static strength, impact toughness (TI), and thermal stability (TTI). Good wear resistance.
Applications: Suitable for cutting, drilling, brazing, and electroplating tools under high-intensity conditions. Used in concrete, hard granite (F=10), high-grade tiles, refractory materials, heavy-duty grinding, and medium-to-high-load electroplating tools. |
HSD60 | Features: Hexoctahedral structure, few impurities, moderate strength, TI, TTI. Balanced wear resistance and sharpness.
Applications: Ideal for high-speed cutting/drilling under medium intensity. Used in cement pavement, marble, granite (F=8), building materials, refractories, non-ferrous metals, heavy grinding, and medium-load electroplating tools. |
HSD50 | Features: Regular hexoctahedral structure, moderate impurities, average strength/TI/TTI, moderate wear resistance, good sharpness.
Applications: For high-speed cutting/drilling under low-to-medium intensity. Used in soft marble/sandstone (F=6-5), glass, ceramics, building materials, medium-load grinding, and low-to-medium electroplating tools. |
HSD40 | Features: 90–95% regular structure, moderate impurities, low strength/TI/TTI, average wear resistance, excellent sharpness.
Applications: For high-speed cutting/drilling under low intensity. Used in small-diameter free-cutting drills, medium-to-low load grinding, and low-load electroplating tools. |
HSD30 | Features: 85% regular structure, more impurities vs JSD40, low strength/TI/TTI, poor wear resistance, excellent sharpness.
Applications: For small-diameter free-cutting/drilling tools. Ideal for high-brittle materials like gemstones, jade, crystal, and small batches of stone/glass/tiles. Also for medium-to-low load grinding and low-load electroplating tools. |
HSD20 | Features: 70% regular structure, high impurities, rough surface, low strength/TI/TTI, poor wear resistance, extremely high sharpness.
Applications: For small free-cutting/drilling tools, ceramic/metal bond tools, and sharp electroplating tools. Used on hard alloys, magnetic materials, glass, tiles, crystal, gemstones, and other brittle materials. Can be blended with high-grade diamonds to adjust tool sharpness. |
HSD10 | Features: 50% regular structure, high impurities, rough surface, very low strength/TI/TTI, very poor wear resistance, extremely high sharpness, good self-sharpening.
Applications: For resin/ceramic/metal bond tools and sharp electroplating tools. Used on hard alloys, magnetic materials, glass, tiles, crystal, gemstones, and other brittle materials. Can blend with high-grade diamonds to adjust sharpness. |
Grade/Size | HSD10 | HSD20 | HSD30 | HSD40 | HSD50 | HSD60 | HSD70 | HSD80 | HSD90 |
20/25 | Y | Y | Y | Y | Y | Y | Y | Y | Y |
25/30 | Y | Y | Y | Y | Y | Y | Y | Y | Y |
30/35 | Y | Y | Y | Y | Y | Y | Y | Y | Y |
35/40 | Y | Y | Y | Y | Y | Y | Y | Y | Y |
40/45 | Y | Y | Y | Y | Y | Y | Y | Y | Y |
45/50 | Y | Y | Y | Y | Y | Y | Y | Y | Y |
50/60 | Y | Y | Y | Y | Y | Y | Y | Y | Y |
Hope GB/T6406-1995 | United States ANSI US Mesh # | European Federation of Producers of Abrasives FEPA D | International Standardization Organization ISO | Russia GOST9206-80 |
20/25 | 20/25 | D851 | 850/710 | 850/710 |
25/30 | 25/30 | D711 | 710/600 | 710/600 |
30/35 | 30/35 | D601 | 600/500 | 630/500 |
35/40 | 35/40 | D501 | 500/425 | 500/400 |
40/45 | 40/45 | D426 | 425/355 | 400/315 |
45/50 | 45/50 | D356 | 355/300 | 400/315 |
50/60 | 50/60 | D301 | 300/250 | 315/250 |
Company Profile
Zhengzhou Hope Superhard Material Co.,Ltd is located in Zhengzhou High-tech Industrial Development Zone. With our proprietary technologies and Self-developed Equipment, we have developed into a high-tech private company integrating scientific research, manufacturing, and sales.
We provide full-range of synthetic diamond and related products including Lab-Grown Diamond, Diamond Powder, Large Single Crystal Diamond, Diamond Micro powder, CBN Powder, MCD and PCD Wire Drawing Die Core, PCD, PDC, PCBN, CVD and Single Crystal Diamond Tool, Wire Drawing Die, Diamond Grinding Wheel etc. These products serve diverse industries such as Aerospace, Electronics, Optics, Machinery, Energy Exploration, Construction and Jewelry.
We are committed to the fundamental principles of exceptional corporate credibility and product quality, leveraging sincere customer service as a bridge to collaboratively create a bright future with our clients.

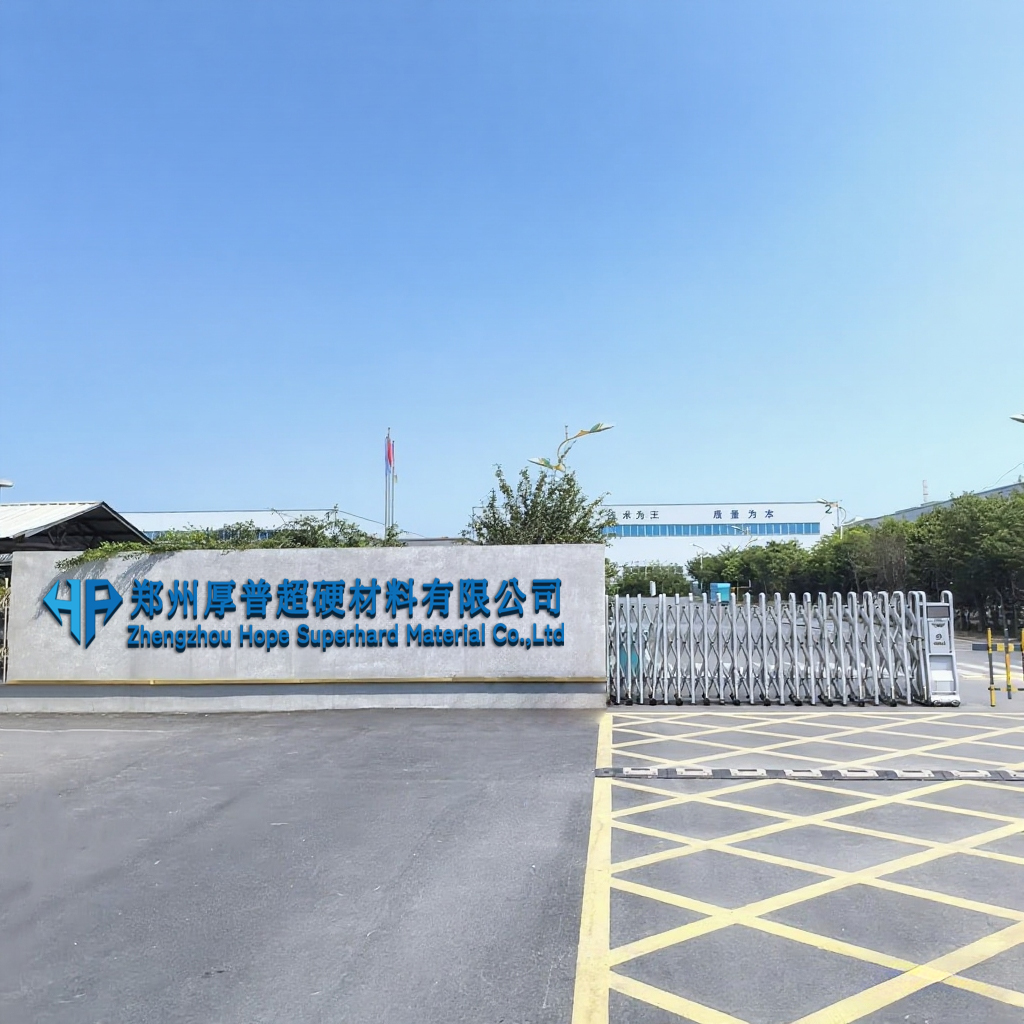

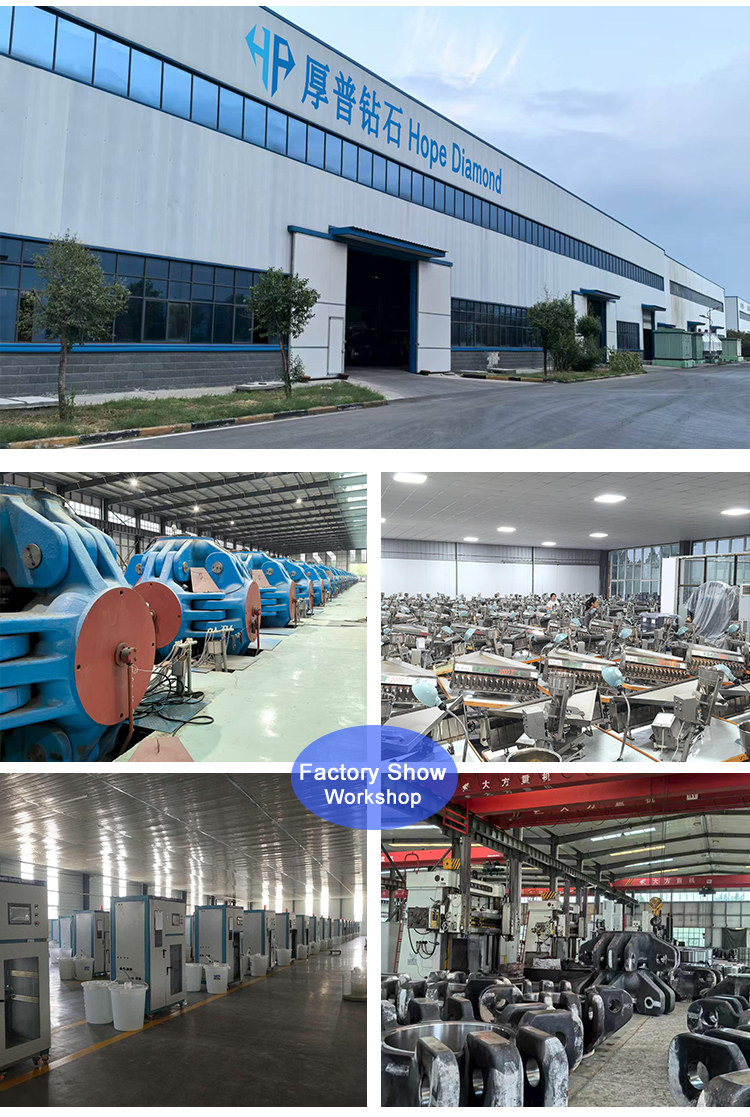

Our Factory
