Products Description
Resin Bond Diamond
The Hope HBD series of resin bond synthetic diamond is a type of polycrystalline diamond widely used in the production of resin bond diamond grinding wheels

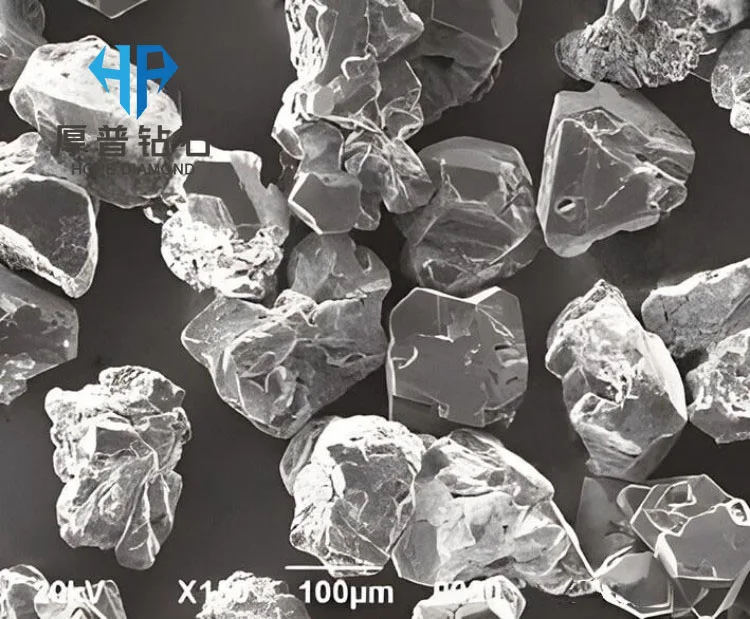

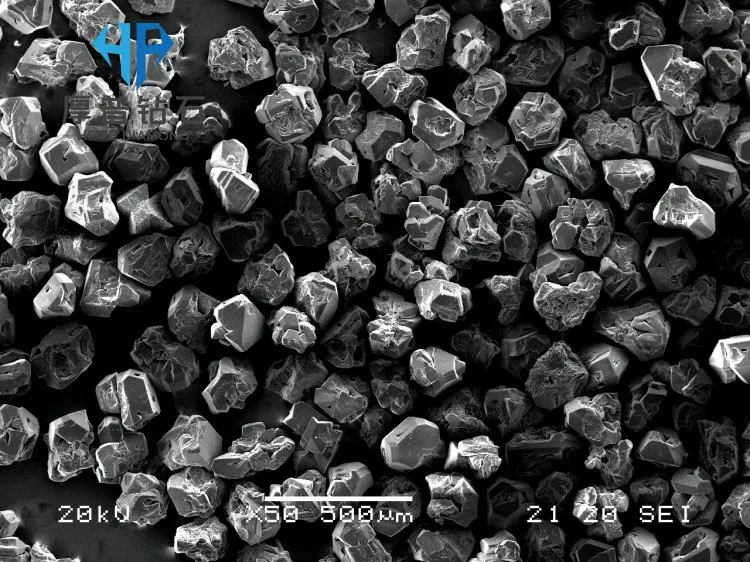

The Hope HBD series of polycrystalline diamond consists of multiple sub-crystals with an embedded structure, featuring irregular crystal shapes, rough surfaces, excellent brittleness, and superior self-sharpening properties. Its high grinding efficiency, long service life, and superior surface finish provide exceptional performance for grinding various non-ferrous materials such as tungsten carbide, silicon nitride, aluminum oxide, silicon carbide, optical glass, glass, and ceramics.
Product Paramenters
HBD4(AC4) | Characteristics: Most brittle and weakest among resin-bond diamonds; dark gray color; excellent self-sharpening. Micro-fracturing enables superior grinding under low loads. Applications: Ideal for low-load resin-bond grinding tools. Used in precision machining of cemented carbides, optical glass, and ultra-high-quality fine grinding. |
HBD6(AC6) | Features: A polycrystalline diamond with moderate brittleness and strength among resin bond diamonds. Gray-green color with good self-sharpening. Balances grinding performance and tool life. Applications: Ideal for medium-load resin bond grinding tools. Used in rough and semi-finish machining of hard alloys, optical glass, and other brittle non-metallic materials. |
HRD | Features: Highest-strength irregular single crystal in resin bond diamonds. Yellow-green color, rough sharp surface.
Applications: Ideal for heavy-load resin bond grinding tools. Used on brittle materials including gemstones, stone, ceramic tiles, glass, and rough machining of hard alloys. An economical option with high grinding efficiency. |
Size/Grade | 50/60 | 60/70 | 70/80 | 80/100 | 100/120 | 120/140 | 140/170 |
HBD4(AC4) | Y | Y | Y | Y | Y | Y | Y |
HBD6(AC6) | Y | Y | Y | Y | Y | Y | Y |
HRD | Y | Y | Y | Y | Y | Y | Y |
Size/Grade | 170/200 | 200/230 | 230/270 | 270/325 | 325/400 | 400/500 | 500/600 |
HBD4(AC4) | Y | Y | Y | Y | Y | Y | Y |
HBD6(AC6) | Y | Y | Y | Y | Y | Y | Y |
HRD | Y | Y | Y | Y | Y | Y | Y |
Hope GB/T 6406-1995 | USA ANSI US Mesh # | European Community FEPA D | International Standard ISO | Russia GOST 9206-80 |
50/60 | 50/60 | D301 | 300/250 | 315/250 |
60/70 | 60/70 | D251 | 250/212 | 250/200 |
70/80 | 70/80 | D213 | 212/180 | / |
80/100 | 80/100 | D181 | 180/150 | 200/160 |
100/120 | 100/120 | D151 | 150/125 | 160/125 |
120/140 | 120/140 | D126 | 125/106 | 125/100 |
140/170 | 140/170 | D107 | 106/90 | 100/80 |
170/200 | 170/200 | D91 | 90/75 | / |
200/230 | 200/230 | D76 | 75/63 | 80/63 |
230/270 | 230/270 | D64 | 63/53 | 63/50 |
270/325 | 270/325 | D54 | 53/45 | 50/40 |
325/400 | 325/400 | D46 | 45/38 | 45/38 |
400/500 | 400/500 | D39 | 38/32 | 38/30 |
500/600 | 500/600 | D33 | 32/26 | 30/20 |
