Products Description
Agglomerated Diamond Powder
The HADP series represents China's first agglomerated diamond powder, offering higher roughness compared to traditional single-crystal/polycrystalline diamond abrasives. It significantly reduces enterprise processing costs while delivering high rates, excellent roughness, and minimal scratching.
The spherical particles are uniformly coated with diamond from the inside out, ensuring continuous grinding action; it boasts high utilization rates, fast cutting speeds, and consistent surface quality on processed work-pieces. The size and strength can be customized according to customer requirements; with increased production capacity, it stands as the optimal choice for grinding materials. Currently, Hope has achieved comprehensive independent R&D and mass production of agglomerated diamond grinding powder, grinding fluid, and the accompanying grinding thinning pads.
Product Features

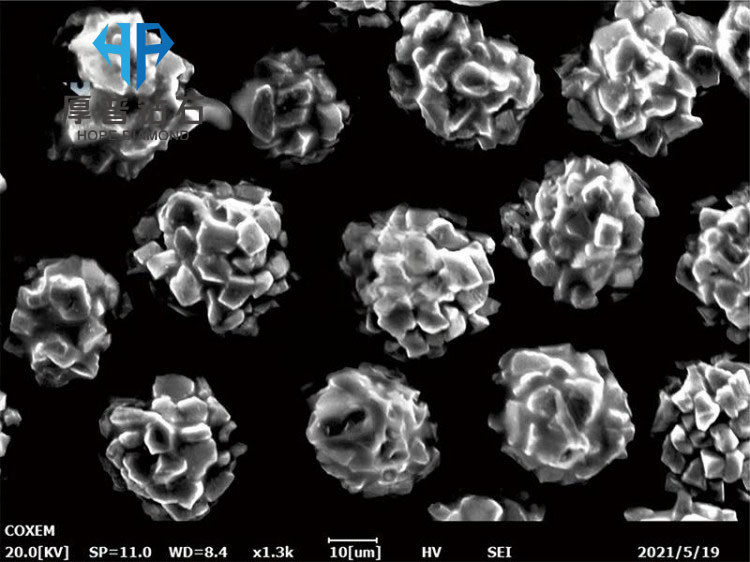

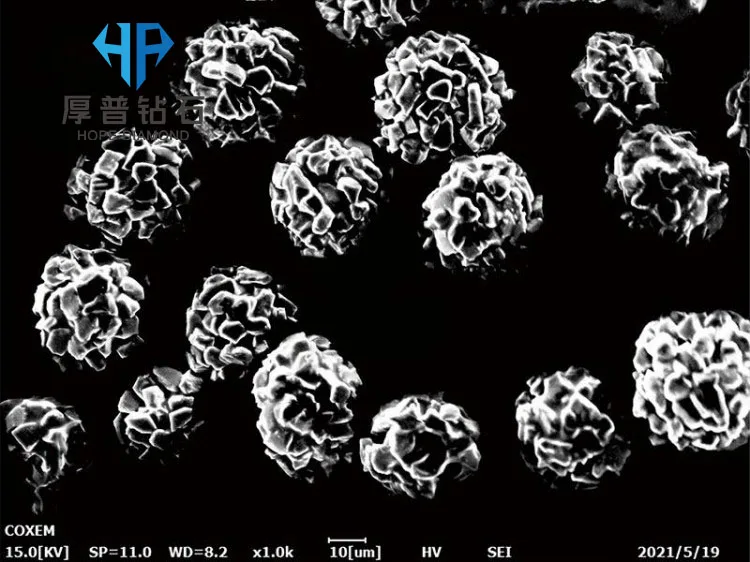

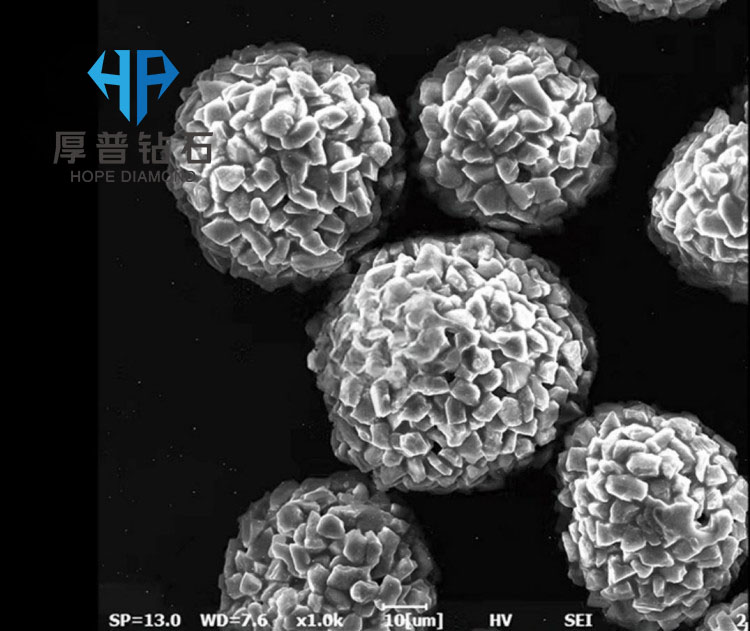

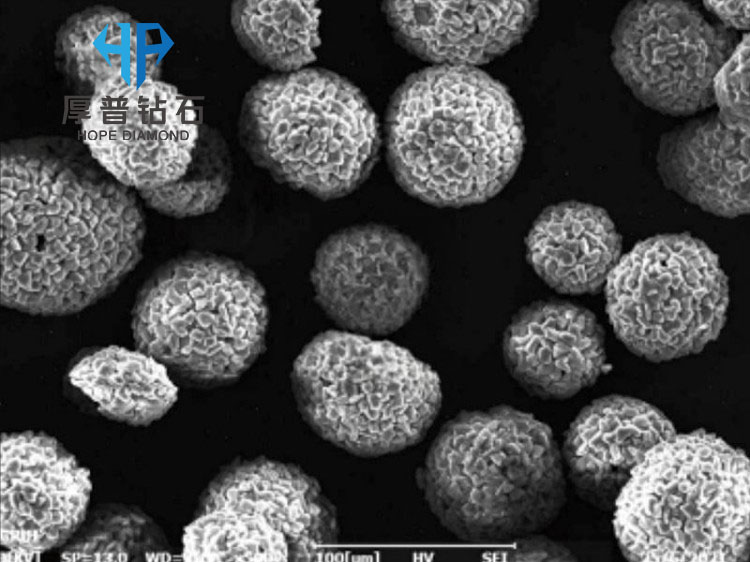

1.Quasi-spherical morphology with a multi-edge micro-structure; small cutting edges minimize deep scratches on processed work-pieces.
2.Exhibits the isotropic properties of polycrystalline diamond, lacking a fixed cleavage plane, maintaining high grinding force during processing. The particles offer excellent wear resistance, achieving surface quality unattainable with other diamond abrasives.
3.Uniform internal and external structure of spherical particles ensures consistent self-sharpening and stable cutting performance.
4.Spherical particles are uniformly coated with diamond from the inside out, ensuring continuous grinding action.
Product Advantages
1. Offers a distinct advantage over traditional single-crystal/polycrystalline diamond abrasives: Extremely high sphericity agglomeration rate, delivering superior coarse/fine grinding performance.
2. High processing rate, minimal scratching, and excellent surface roughness.
3. Maximizes reduction in enterprise processing time, consumable costs, and labor expenses.
4. High processing rate, minimal scratching, and excellent surface roughness.
5. Particle size can be customized and developed according to customer requirements.
6. Increased production capacity year-on-year, making it the optimal choice for grinding materials currently available.
Recommended Applications
1. Agglomerated Diamond Grinding Fluid: Paired with grinding discs for processing sapphire wafers, silicon carbide wafers, functional ceramics, and other brittle materials.
2. Agglomerated Diamond Grinding Pads: Used with cutting fluid for glass-ceramic covers, sapphire wafers, silicon carbide wafers, and other hard and brittle materials.
3. Semiconductor Wafer Processing: Precision slicing and surface treatment of semiconductor materials.
4. Ceramic Material Processing: Zirconia fingerprint recognition sheets, smartphone back covers, and functional ceramics.
5.Metal Material Processing: High-precision grinding and finishing of specialized metal components.
Product Paramenters
Particle Size Distribution and Application Scenarios
Grade | Original Particle Size Specifications | Particle Size Distribution (μm) | Application Scenarios |
D50 | Processing Targets | Preparation Methods |
HADP0508 | 0-0.5μm | 3-8μm | Chip Substrate Medium Throw | Grinding fluid, fine throwing grinding wheel |
HADP1012 | 0-1μm | 8-12μm | Chip Substrate Medium Throw | Grinding fluid, fine throwing grinding wheel |
HADP2025 | 1-2μm | 15-25μm | Fine Grinding of Chip Substrates | Grinding fluid, fine throwing grinding wheel |
HADP3035 | 1-3μm | 25-35μm | Optical wafer grinding | Grinding Fluid, Grinding Paper |
HADP4040 | 2-4μm | 30-40μm | Grinding of Ceramic Devices | Grinding Fluid, Grinding Paper |
HADP6060 | 3-6μm | 40-60μm | Fine grinding of micro-crystal glass | Diamond grinding pad, fine throwing sand wheel |
HADP7100 | 7μm | 70-100μm | Fine grinding of micro-crystal glass | Diamond grinding pad, fine throwing sand wheel |
