Products Description
Coated Diamond and CBN
Diamond and cubic boron nitride (CBN) are coated with a metal layer of specific thickness via chemical plating, electroplating, or other methods. This coating enhances the bonding strength with binders, improves abrasive retention, masks inherent defects in theabrasives, and increases particle strength, thermal stability, and chemical corrosion resistance.
Product Introduction:
1. Plating series products include titanium plating, electroless nickel plating, nickel plating, copper plating and other varieties.
2. Can be plated with various diamond and cubic boron nitride.
3. Mature and stable plating process to ensure dense and uniform coating, not only can accurately control the thickness of the coating and metal weight, but also can provide two kinds of metal composite plating products according to customer requirements.
4. The unique abrasive surface purification pretreatment process makes the binding force of diamond, cubic boron nitride and coating more firm.
5. Based on the dispersion and surface treatment experience of nanoscale powder, it ensures that 10μm fine coated products will not appear adhesion phenomenon.
Available specifications:
1. Nickel plating products conventional specifications are N30, N56, N60, etc., can be plated with different thickness coating according to customer requirements.
2. Copper plating, titanium plating products can be plated with different thickness coating according to customer requirements.
Application field:
1. Titanium-plated diamond and cubic boron nitride are commonly used in metal and ceramic bonding products.
2. Electroless nickel diamond and cubic boron nitride are often used in resin bonds and electroplated products.
3. Electroplated nickel diamond and cubic boron nitride are often used in resin binder products.
4. Copper-plated diamond and cubic boron nitride are often used in metal binder products.
Product Paramenters

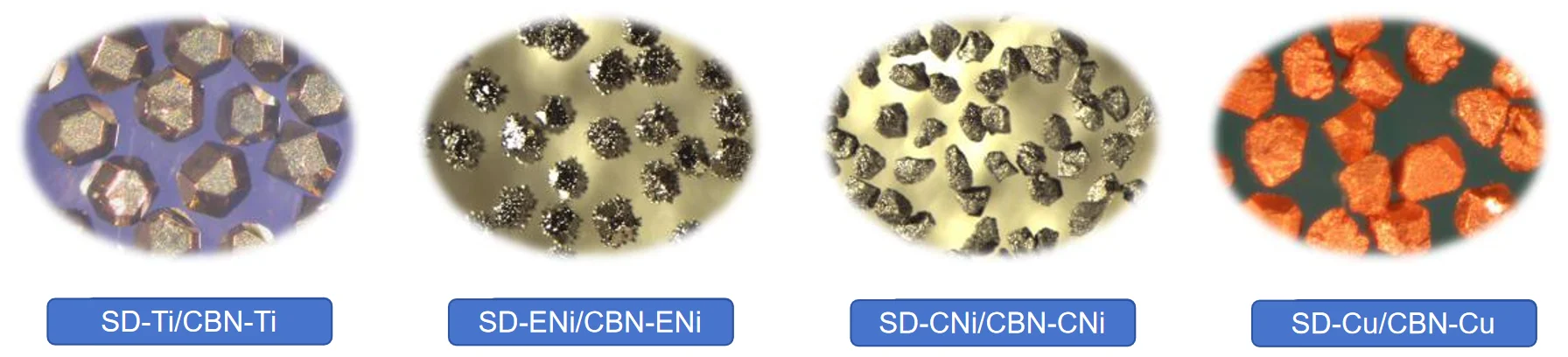

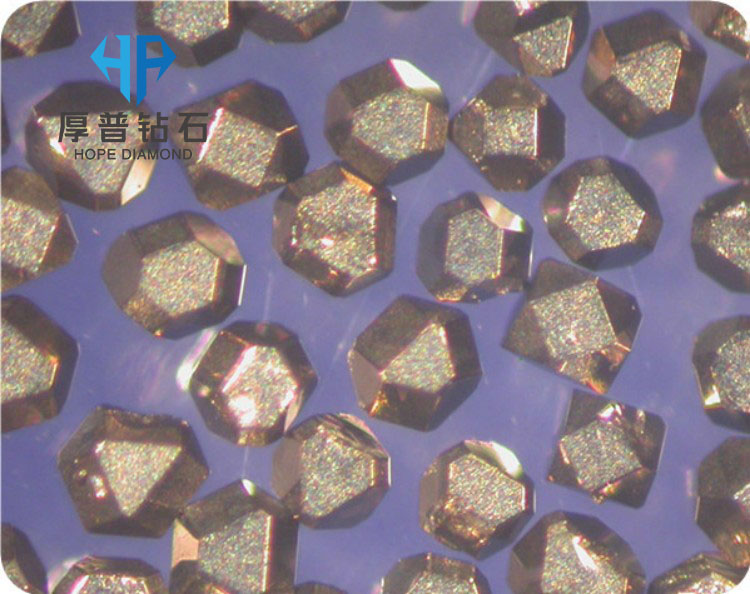

SD-Ti/CBN-Ti | Features: Titanium plating enhances abrasive particle strength, high-temperature resistance, and chemical corrosion resistance. The coating
significantly improves mechanical bonding between abrasives and the matrix, increases retention force, and prevents oxidation and metal erosion. This extends service life and boosts performance of diamond and CBN tools.
Application:Widely used in ceramic-bonded and metal-bonded tools.
Specifications:Customizable coating thickness based on requirements . Compatible with various abrasive grit sizes and micro-powders. |
SD-ENi/CBN-ENi | Features: Copper plating enhances the grip between diamond and matrix, improves heat dissipation, reduces thermal loss, and extends tool
life.
Application: Widely used in metal-bonded tools.
Specifications: Customizable coating thickness. Compatible with various abrasive grit sizes and micro-powders. |

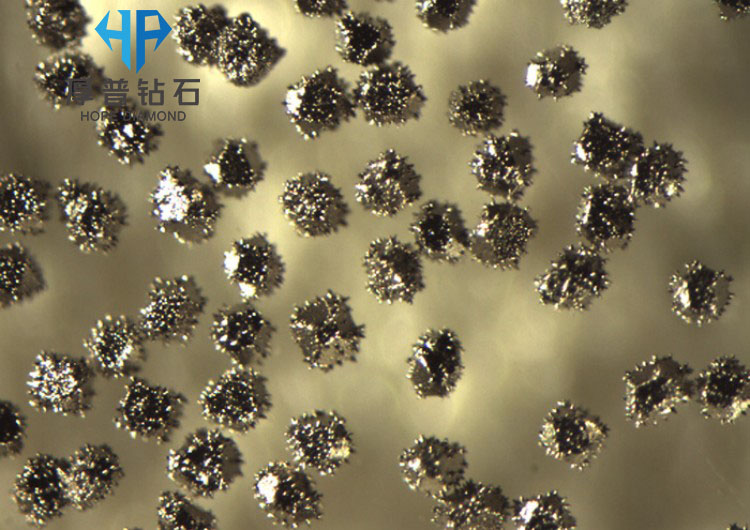

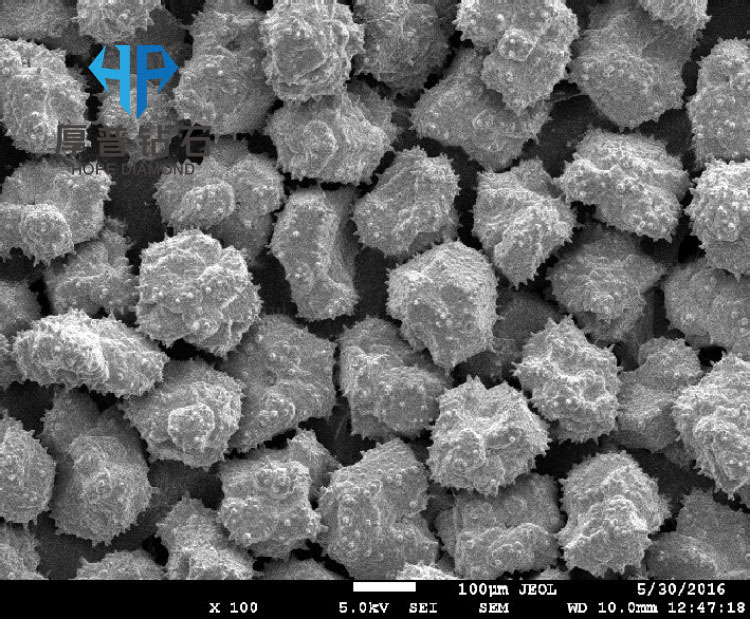

SD-CNi/CBN-CNi | Features: Electroless nickel plating products can greatly hold the body and particle, extend the service life of the tool, and improve its sharpness.
Application: Widely used in resin bond.
Specifications: Different thickness coating can be plated according to customer requirements; It can be coated with various particle size abrasives and micro-powders. |

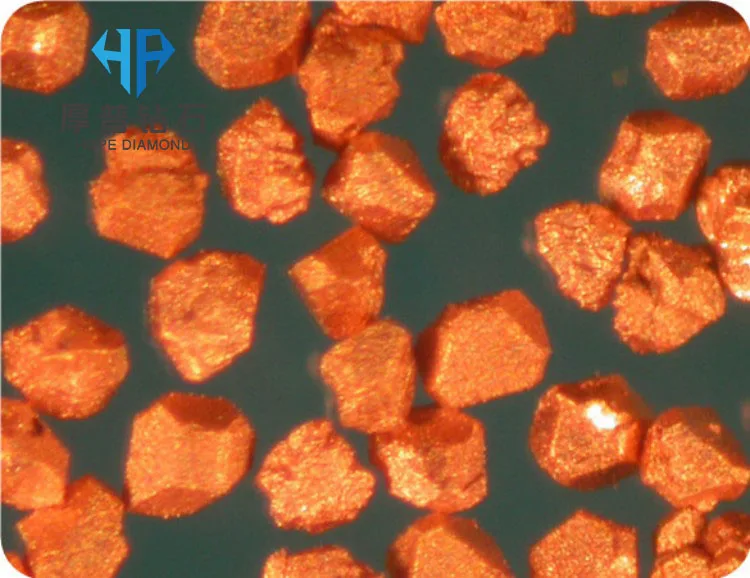

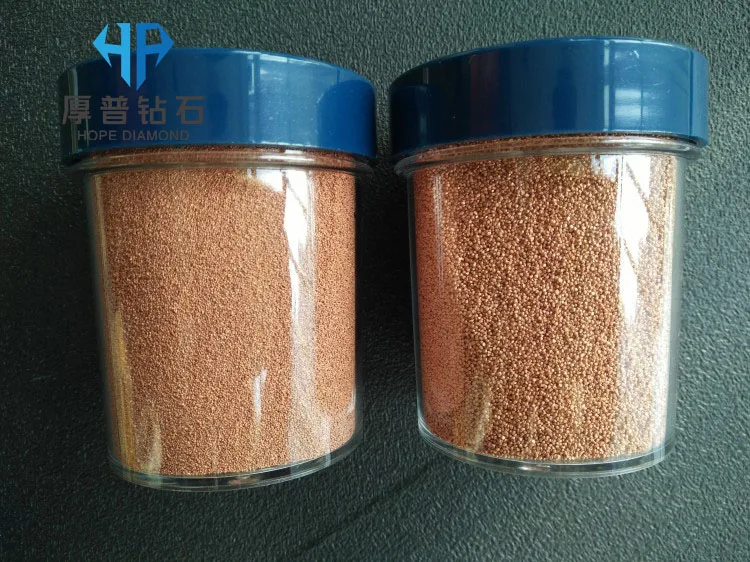

SD-Cu/CBN-Cu | Features: Copper plated products can enhance the grip of diamond and matrix, improve heat dissipation, reduce heat loss, thereby extending the service life of the tool.
Application: Widely used in metal bonding agent.
Specifications: Different thickness coating can be plated according to customer requirements; It can be coated with various particle size abrasives and micro-powders. |
