Products Description

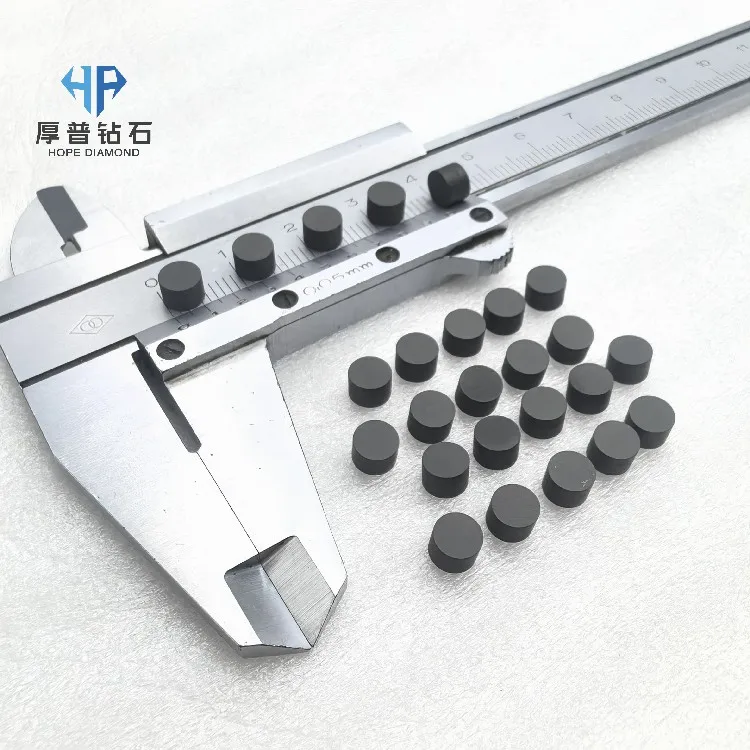

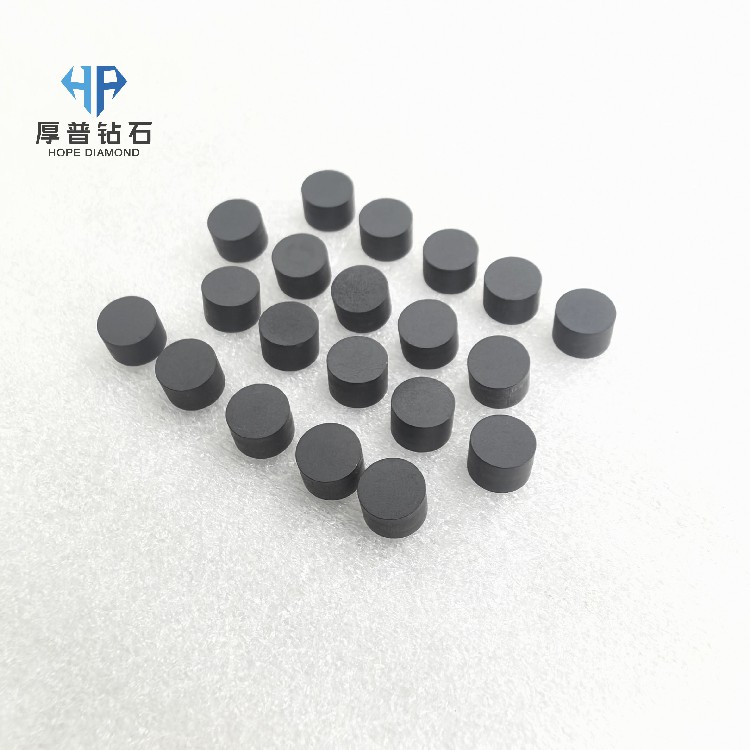

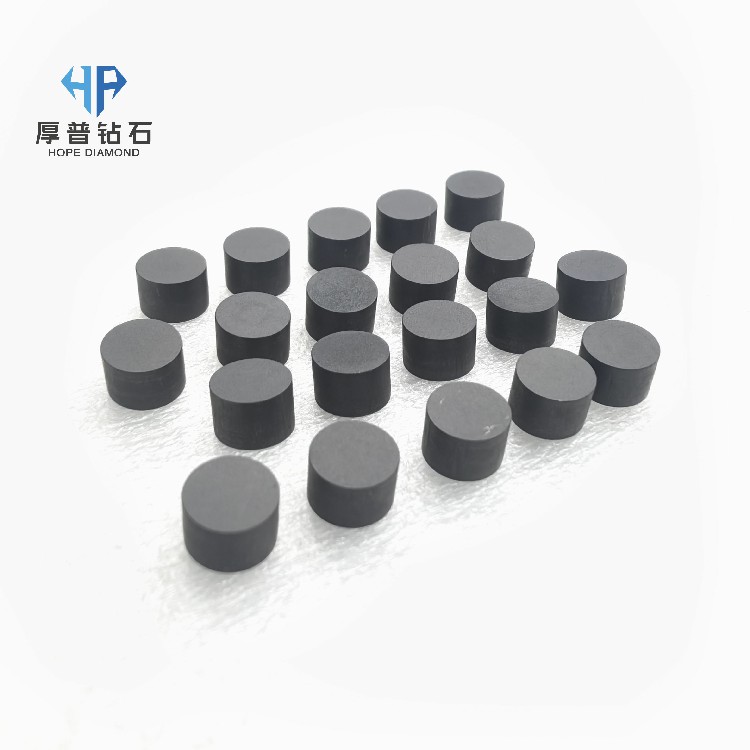

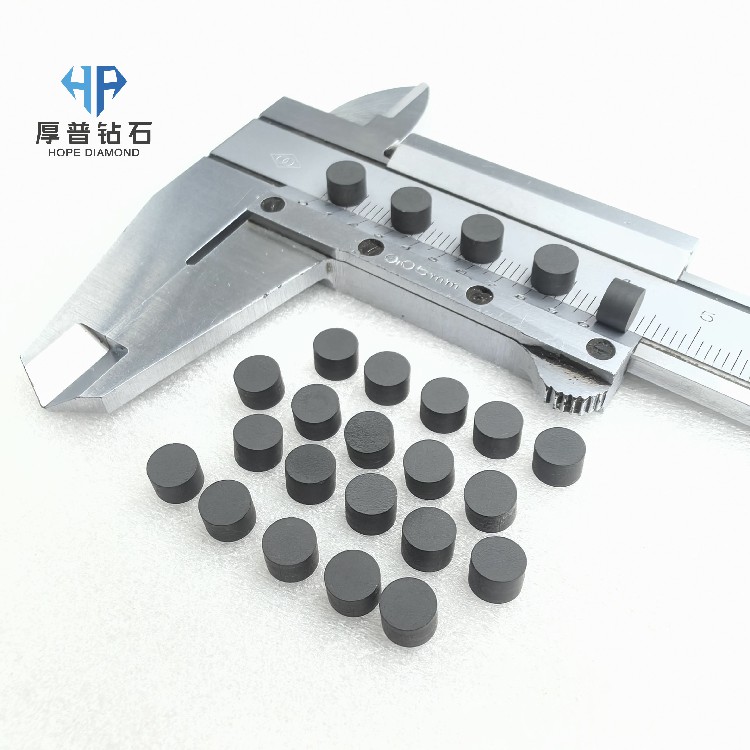

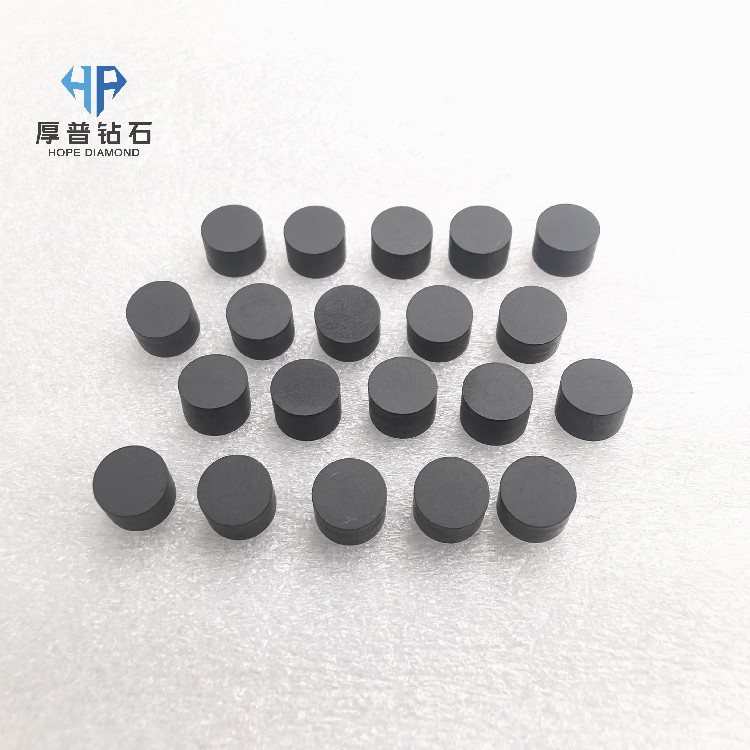

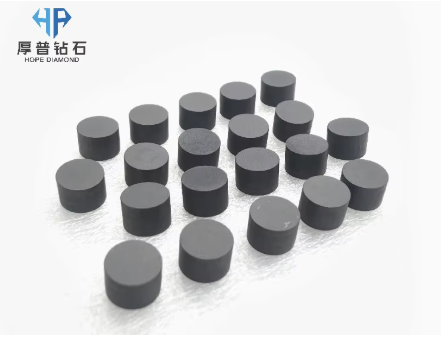

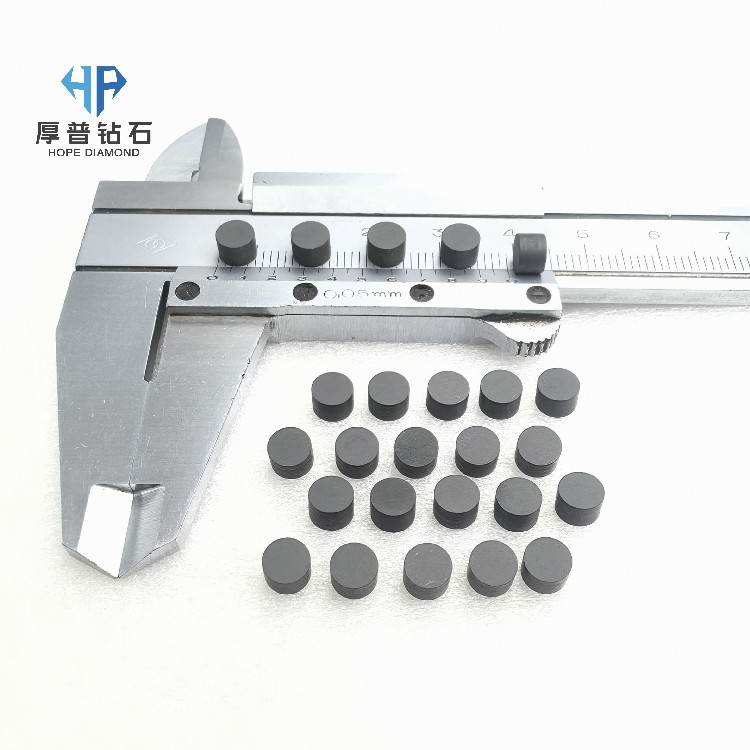

PCD Blanks for Wire Drawing Dies
The Hope PCD diamond wire drawing die core is produced using Hope JSDM series diamond Micro-powder, sintered under high temperature and high pressure with the aid of bonding agents.
The Hope PCD diamond wire drawing die core exhibits high wear resistance, hardness, and thermal conductivity, as well as excellent mechanical strength and toughness. It is suitable for drawing non-ferrous metals such as copper, aluminum, nickel, and tungsten, as well as stainless steel and various alloy wires, rods, and tubes.
Product Paramenters

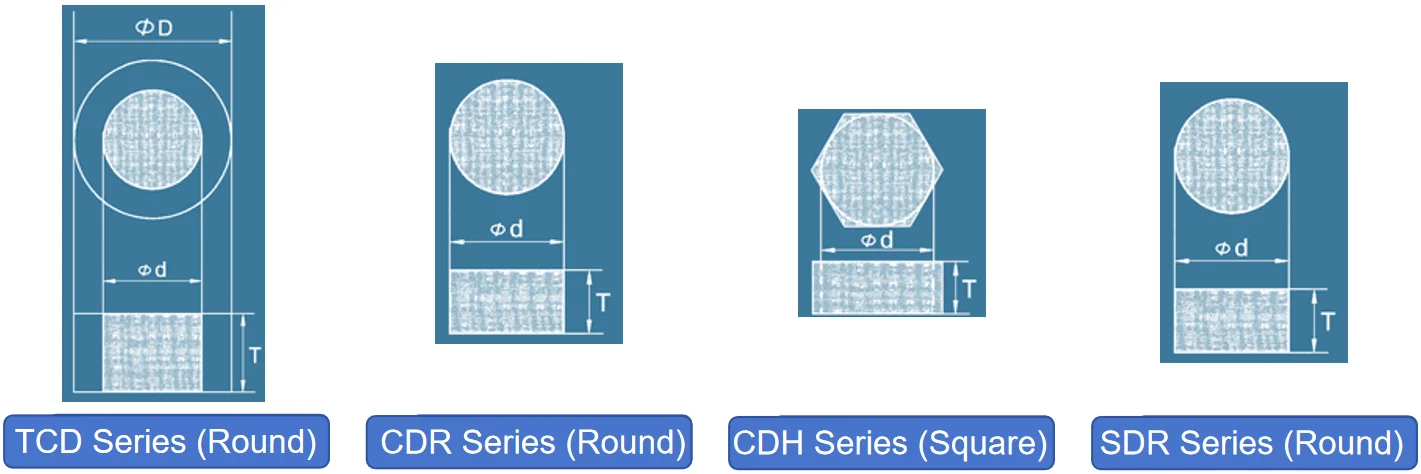

ADDMA Name | Product code | Size（mm） |
Blank Outer diameter ΦD | Diamond diameter
Φd | Diamond thickness T | Maximum recommended aperture |
|
TCD Series (Round) |
T12 | TCD4015 | 8.12 | 4.0 | 1.5 | 1.0 |
T15 | TCD4023 | 8.12 | 4.0 | 2.3 | 1.8 |
T18 | TCD4029 | 8.12 | 4.0 | 2.9 | 2.3 |
T21 | TCD7040 | 13.65 | 7.0 | 4.0 | 3.5 |
T24 | TCD7053 | 13.65 | 7.0 | 5.3 | 4.6 |
T27 | TCD13086 | 24.13 | 13.0 | 8.6 | 5.8 |
T30 | TCD130116 | 24.13 | 13.0 | 11.6 | 7.8 |
T31 | TCD150120 | 24.13 | 15.0 | 12.0 | 9.0 |
T33 | TCD150150 | 26.80 | 15.2 | 15.0 | 10 |
T33 | TCD180150 | 29.00 | 18.5 | 15.0 | 11 |
| TCD180180 | 29.00 | 18.5 | 18.0 | 12 |
T36 | TCD230150 | 34.00 | 23.0 | 15.0 | 13 |
| TCD250180 | 36.00 | 25.0 | 18.0 | 14 |
| TCD300200 | 41.00 | 30.0 | 20.0 | 16 |
| TCD400200 | 51.00 | 40.0 | 20.0 | 18 |
CDR Series (Round) |
D6 | CDR2510 |
| 2.5 | 1.0 | 0.4 |
D12 | CDR3215 |
| 3.2 | 1.5 | 1.0 |
D15 | CDR5225 |
| 5.2 | 2.5 | 1.5 |
D18 | CDR5235 |
| 5.2 | 3.5 | 2.0 |
D21 | CDR8040 |
| 8.0 | 4.0 | 3.0 |
D24 | CDR9853 |
| 9.8 | 5.3 | 4.0 |
D27 | CDR13085 |
| 13.0 | 8.5 | 5.0 |
D30 | CDR160120 |
| 16.0 | 12.0 | 7.0 |
D33 | CDR180120 |
| 18.0 | 12.0 | 8.0 |
D33 | CDR180150 |
| 18.0 | 15.0 | 8.5 |
| CDR220100 |
| 22.0 | 10.0 | 9.0 |
| CDR220120 |
| 22.0 | 12.0 | 9.5 |
D36 | CDR230150 |
| 23.0 | 15.0 | 10.0 |
| CDR240120 |
| 24.0 | 12.0 | 10.0 |
| CDR240140 |
| 24.0 | 14.0 | 10.5 |
| CDR300200 |
| 30.0 | 20.0 | 12.0 |
| CDR400200 |
| 40.0 | 20.0 | 14.0 |
CDH Series (Square) |
D6 | CDH2510 |
| 2.5 | 1.0 | 0.4 |
D12 | CDH3215 |
| 3.2 | 1.5 | 1.0 |
D15 | CDH5225 |
| 5.2 | 2.5 | 1.5 |
D18 | CDH5235 |
| 5.2 | 3.5 | 2.0 |
SDR Series (round) |
| SDR220140 |
| 22.0 | 14.0 | 11.0 |
| SDR240160 |
| 24.0 | 16.0 | 12.0 |
| SDR260160 |
| 26.0 | 16.0 | 13.0 |
| SDR280160 |
| 28.0 | 16.0 | 14.0 |
| SDR300180 |
| 30.0 | 18.0 | 15.0 |
| SDR320180 |
| 32.0 | 18.0 | 16.0 |
The maximum recommended aperture is applicable to non-ferrous flexible wire, and the diameter of the hard wire cannot exceed 65% of the recommended aperture.
Company Profile
Zhengzhou Hope Superhard Material Co.,Ltd is located in Zhengzhou High-tech Industrial Development Zone. With our proprietary technologies and Self-developed Equipment, we have developed into a high-tech private company integrating scientific research, manufacturing, and sales.
We provide full-range of synthetic diamond and related products including Lab-Grown Diamond, Diamond Powder, Large Single Crystal Diamond, Diamond Micro powder, CBN Powder, MCD and PCD Wire Drawing Die Core, PCD, PDC, PCBN, CVD and Single Crystal Diamond Tool, Wire Drawing Die, Diamond Grinding Wheel etc. These products serve diverse industries such as Aerospace, Electronics, Optics, Machinery, Energy Exploration, Construction and Jewelry.
We are committed to the fundamental principles of exceptional corporate credibility and product quality, leveraging sincere customer service as a bridge to collaboratively create a bright future with our clients.
Our Factory
Our customers
Our Honor
Fast delivery
FAQ
1. What are your business scopes?
-We are a superhard material manufacturer with 20+ years of experience. Our main products include single crystal and polycrystalline diamond, CBN, various micro powders, PCD, PDC, TSP, CVD, PCBN etc and related tool products.
2. What payment methods do you accept?
-We accept T/T, L/C, Alibaba Trade Assurance, and other secure payment methods. Please contact us for more options.
3. Do you offer OEM/ODM services?
-Yes, we provide customized OEM/ODM services, including logo printing, packaging design, andproduct specifications tailored to your requirements.
4.Can I get a sample before placing a bulk order?
-Yes, we do provide samples for quality evaluation, but the buyer is responsible for the sample and shipping costs.
5. What is your production lead time?-After order confirmation and deposit payment, our standard production time is 7 working days for a regular order. This time may vary based on the order quantity, product complexity, and customization requirements.
