Products Description

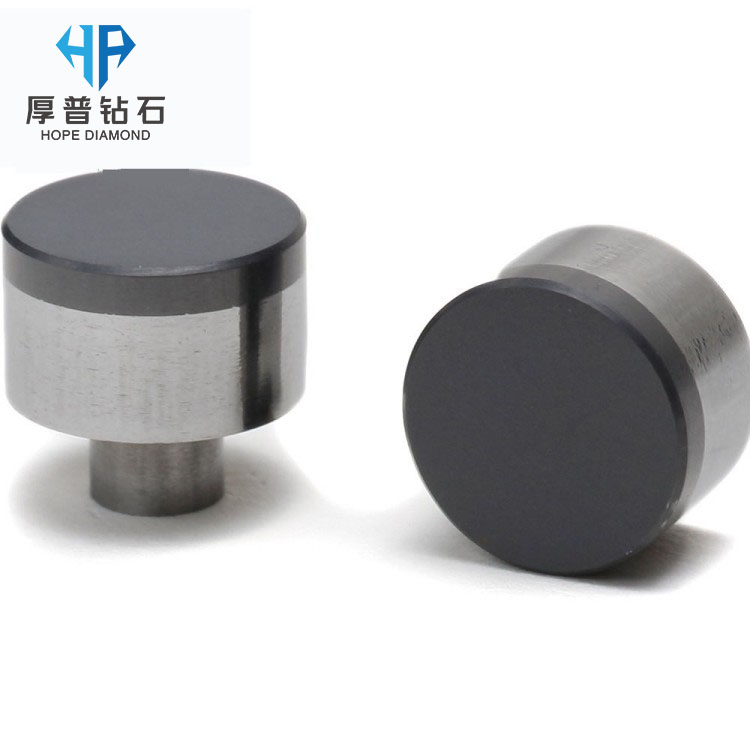

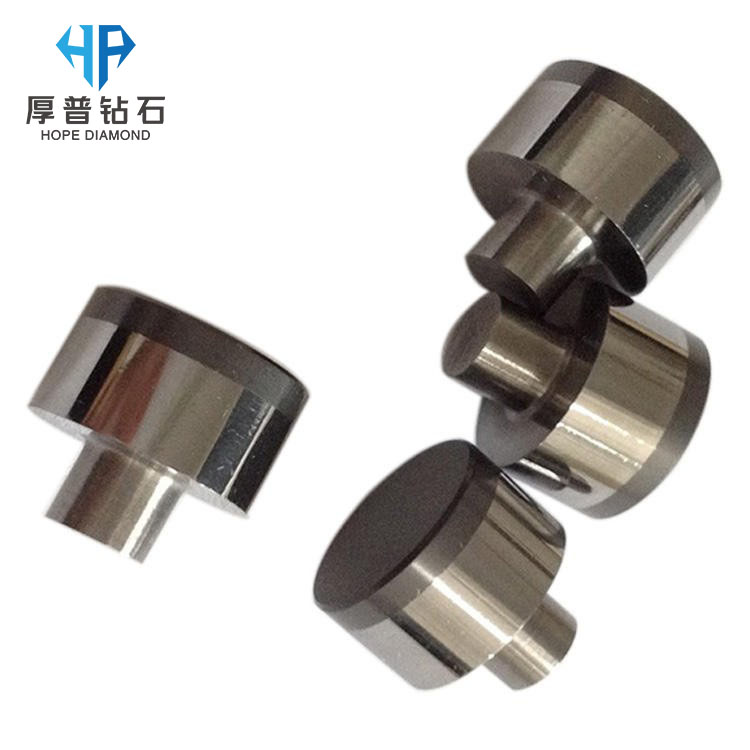

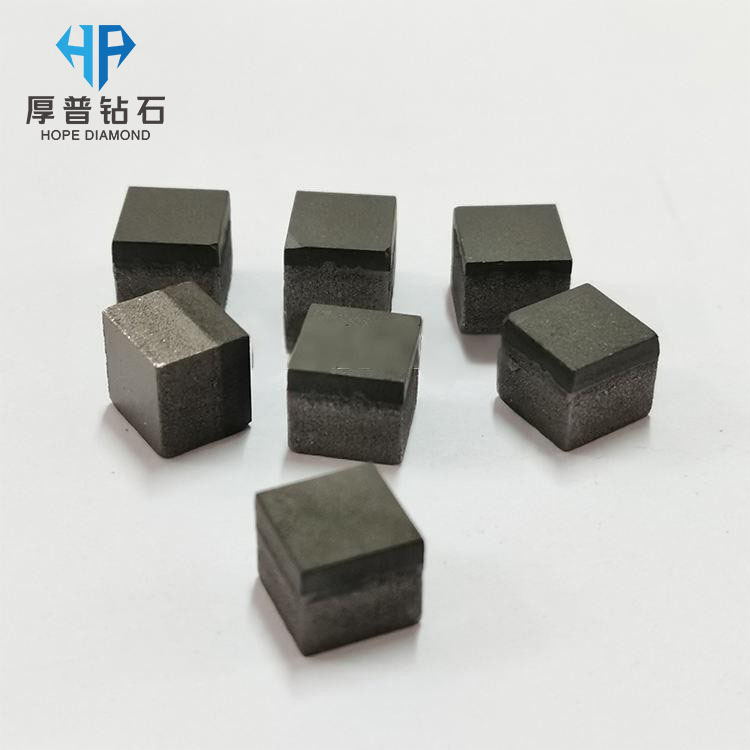

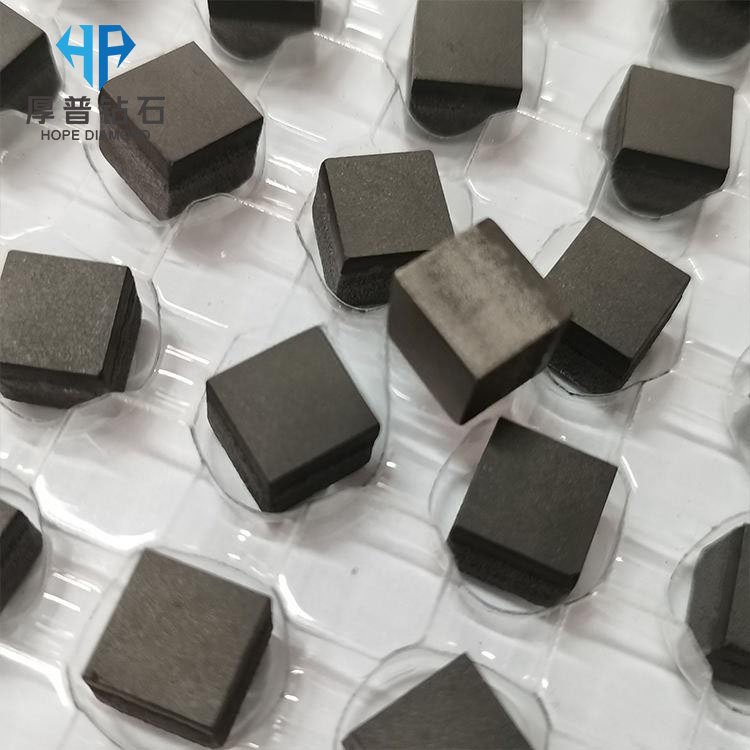

PDC Cutters for Stone
The Hope PDC Cutters for Stone are sintered from diamond Micro-powder and carbide substrates under high temperature and pressure conditions.
These composite sheets feature high hardness, strong wear resistance, and cost-effectiveness, making them ideal for cutting and grinding highly abrasive stone materials and polishing concrete floors.
Our company produces PDC Cutters for Stone using diamond Micro-powder as raw material. The diamond Micro-powder and carbide substrate are sintered under high temperature and pressure conditions, resulting in products with high hardness, strong wear resistance, and cost-effectiveness.
Hope offers PDC Cutters products in standard specifications such as 08, 09, 10, 13, 16, 19, as well as various custom specifications.
Product Series | Product Characteristics |
Scope of Application |
Diamond layer thickness (mm) | Wear ratio
(X10000) | Impact toughness (J) |
PDC-ST1 | 1.0-1.2 | 25 | 300 | Used for cutting and grinding highly abrasive stone materials and polishing concrete floors. |
PDC-ST2 | 1.2-1.5 | 30 | 400 | Used for cutting and grinding highly abrasive stone materials and polishing concrete floors. |
PDC-ST3 | 1.6-1.8 | 40 | 600 | Used for cutting and grinding highly abrasive stone materials and polishing concrete floors. |
PDC-ST4 | 1.8-2.0 | 60 | 800 | Used for cutting and grinding highly abrasive stone materials and polishing concrete floors. |
Product Paramenters
Model | 2513 | 2508 | 1919 | 1916 | 1913 | 1908 | 1619 | 1616 | 1613 |
D(mm)(±0.03) | 25.40 | 25.40 | 19.05 | 19.05 | 19.05 | 19.05 | 16.05 | 16.05 | 16.05 |
H(mm)(±0.10) | 13.20 | 8.00 | 19.00 | 16.31 | 13.20 | 8.00 | 19.00 | 16.00 | 13.20 |
t(mm) | 1.0-3.0 |
Model | 1610 | 1608 | 1008 | 1004 | 0808 | 0803 | 0608 |
|
|
D(mm)(±0.03) | 16.05 | 16.05 | 10.00 | 10.00 | 8.20 | 8.20 | 6.00 |
|
|
H(mm)(±0.10) | 10.00 | 8.00 | 8.00 | 4.50 | 8.00 | 3.53 | 8.00 |
|
|
t(mm) | 1.0-3.0 |
The above specifications can be cut into various shapes according to your requirements.
