Products Description
Hope can provide PDC for Bearings and PDC Radial Bearings.

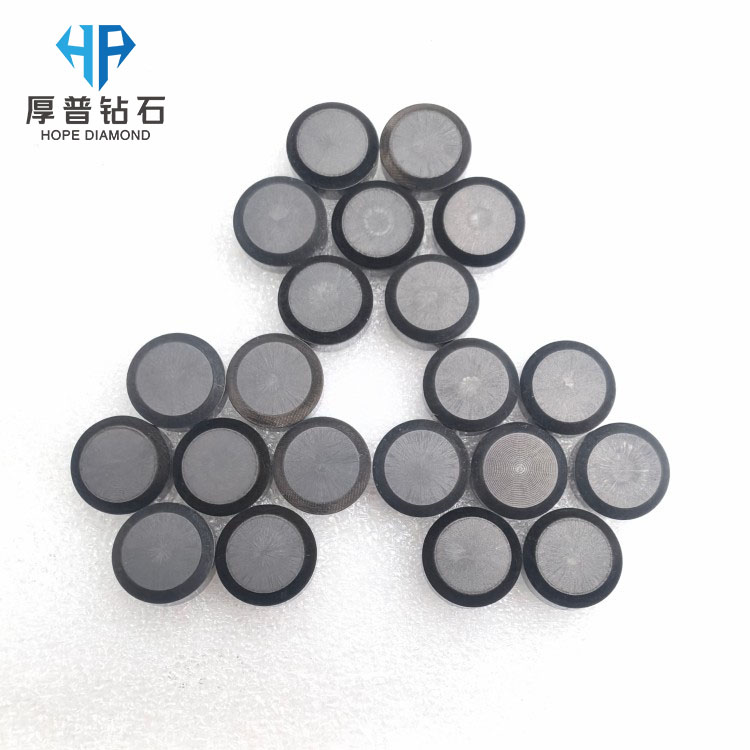

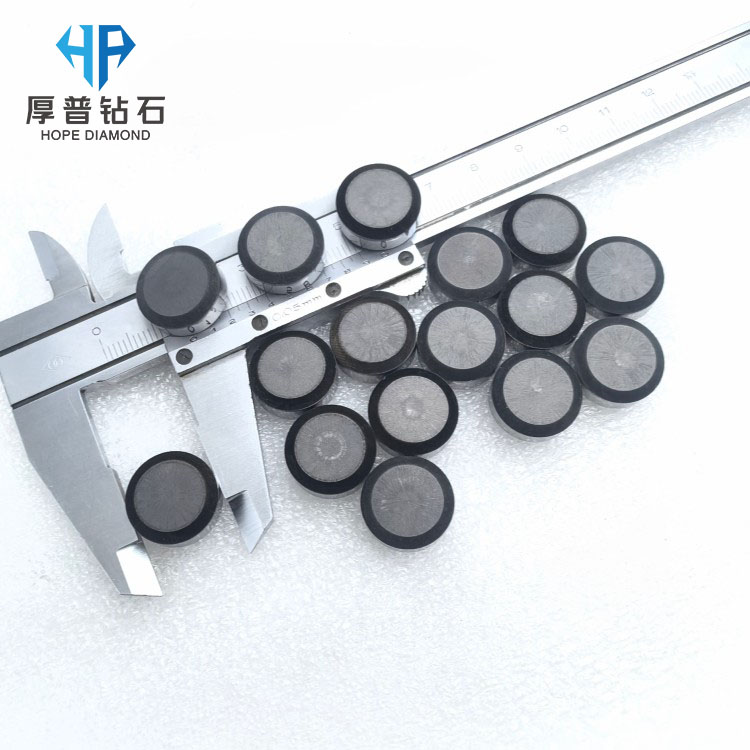

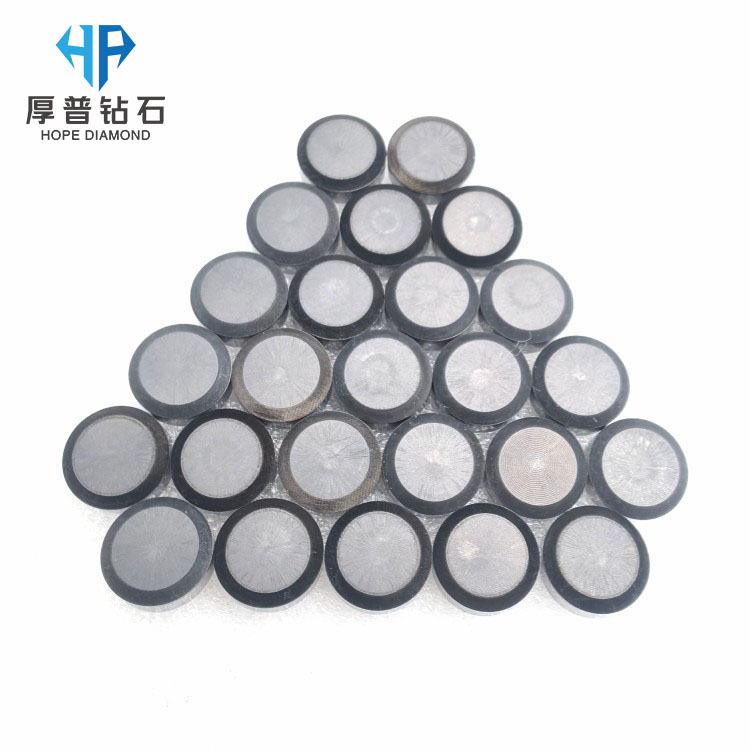

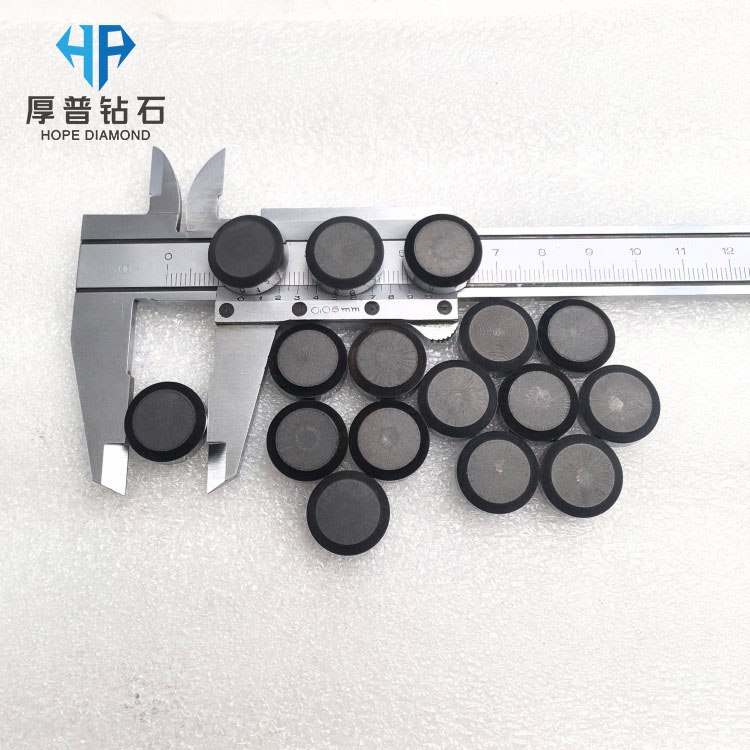

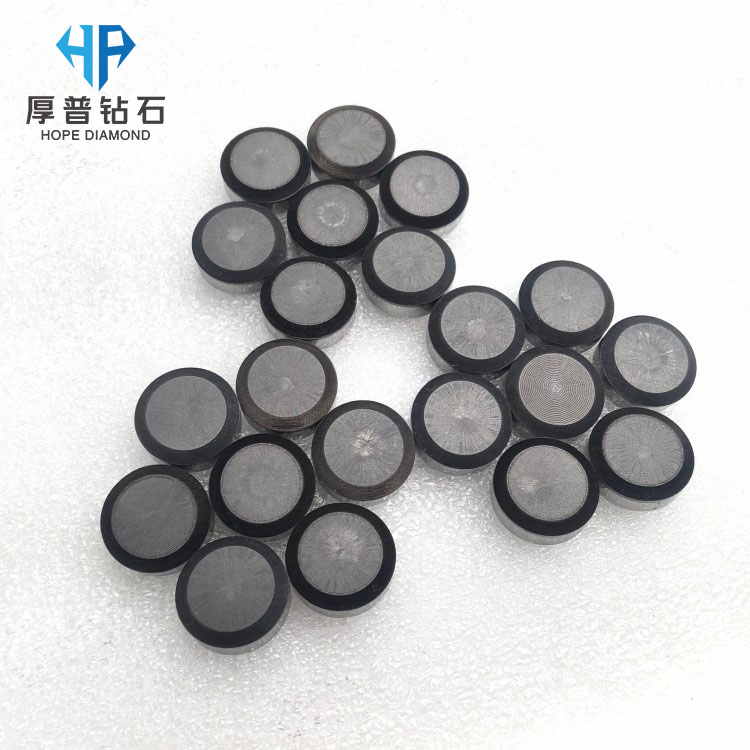

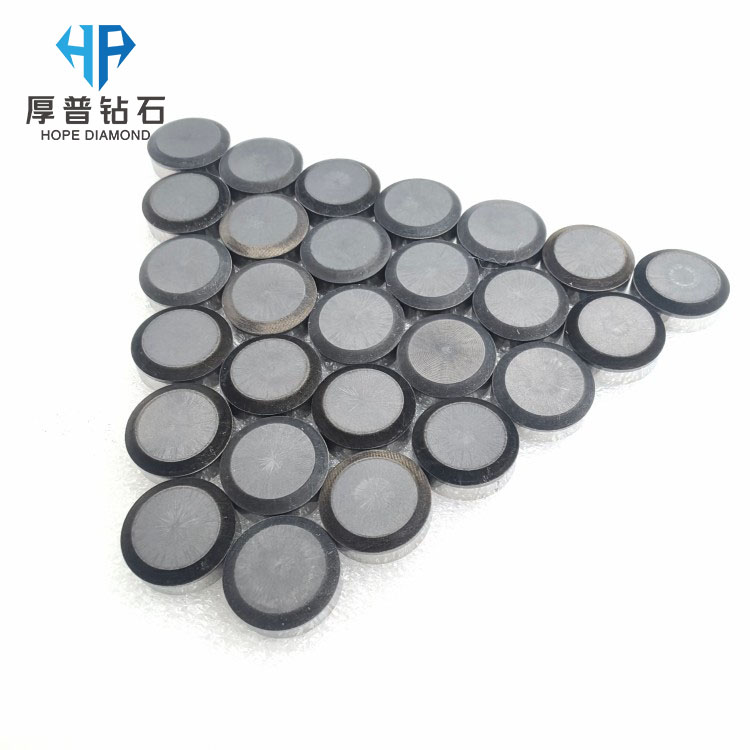

PDC for Bearing are engineered for downhole thrust and radial bearing systems in oil and gas drilling applications. Made with high-quality polycrystalline diamond and a tungsten carbide substrate, they provide excellent wear resistance, low friction, and high load-bearing capacity. These inserts ensure stable operation, extended service life, and reliable performance under high temperature, high pressure, and abrasive drilling conditions.
PDC Radial Bearing consists of a rotating inner ring and a fixed outer ring, with PDC composite cutters brazed on their circumferential surfaces. During operation, the PDC surfaces rub against each other, providing very low friction along with high hardness, wear resistance, thermal conductivity, and corrosion resistance. This makes PCD radial bearings ideal for abrasive, sand-laden fluids, acid–base environments, and other harsh conditions. They can withstand high loads, and due to their low wear rate, service life ranges from 1,000 hours to several years, depending on the application..
Our Advantage
PDC Radial bearings
1.Highest wear and impact resistance PDC cutters.
2.Hardest known stainless base.
3.Ultra-high accuracy and finish.
TSP Radial bearings
1.High load capacity and reduced frictionimproved efficiency, and lower energyconsumption in machinery.
2.Durability,temperature resistance corrosion resistance
TC Radial bearings
1.Highly resistant to abrasion, versioncorrosion,and mechanical failure.
2.Extremely resistant to chipping, cracking, and flaking.
3.High heat conductivity eliminatesthermal crackin.
We look forward to hearing from you with precise drawings and detailed requirement to make the reasonable quotation!
Application
Downhole Drilling Tools
Oil Field Application
Submersible Pumps
Mud Motors
Product Paramenters
Properties | PDC insert | Tungsten carbide | Steel(4140) |
Coefficient of Friction | 0.09 | 0.2-0.25 | 0.42 |
Thermal conductivity(W/mk) | 543 | 67 | 42.6 |
Fracture toughness | 13-15 | 10-20 | 50 |
Hardness(Gpa) | 45.7 | 1.7 | 0.2 |
Compressive strength(Gpa) | 6.9-7.6 | 2.68 |
|
Young's Modulus(Gpa) | 805 | 625 | 205 |
Tensile Strength(Mpa) | 1150-1500 | 323 | 415 |
Thermal stability | 650 °C | / | / |
Can be cut into various shapes according to your requirements.
Company Profile
Zhengzhou Hope Superhard Material Co.,Ltd is located in Zhengzhou High-tech Industrial Development Zone. With our proprietary technologies and Self-developed Equipment, we have developed into a high-tech private company integrating scientific research, manufacturing, and sales.
We provide full-range of synthetic diamond and related products including Lab-Grown Diamond, Diamond Powder, Large Single Crystal Diamond, Diamond Micro powder, CBN Powder, MCD and PCD Wire Drawing Die Core, PCD, PDC, PCBN, CVD and Single Crystal Diamond Tool, Wire Drawing Die, Diamond Grinding Wheel etc. These products serve diverse industries such as Aerospace, Electronics, Optics, Machinery, Energy Exploration, Construction and Jewelry.
We are committed to the fundamental principles of exceptional corporate credibility and product quality, leveraging sincere customer service as a bridge to collaboratively create a bright future with our clients.
Our Factory
Our customers
Our Honor
Fast delivery
FAQ
1. What are your business scopes?
-We are a superhard material manufacturer with 20+ years of experience. Our main products include single crystal and polycrystalline diamond, CBN, various micro powders, PCD, PDC, TSP, CVD, PCBN etc and related tool products.
2. What payment methods do you accept?
-We accept T/T, L/C, Alibaba Trade Assurance, and other secure payment methods. Please contact us for more options.
3. Do you offer OEM/ODM services?
-Yes, we provide customized OEM/ODM services, including logo printing, packaging design, andproduct specifications tailored to your requirements.
4.Can I get a sample before placing a bulk order?
-Yes, we do provide samples for quality evaluation, but the buyer is responsible for the sample and shipping costs.
5. What is your production lead time?
-After order confirmation and deposit payment, our standard production time is 7 working days for a regular order. This time may vary based on the order quantity, product complexity, and customization requirements.
