Products Description

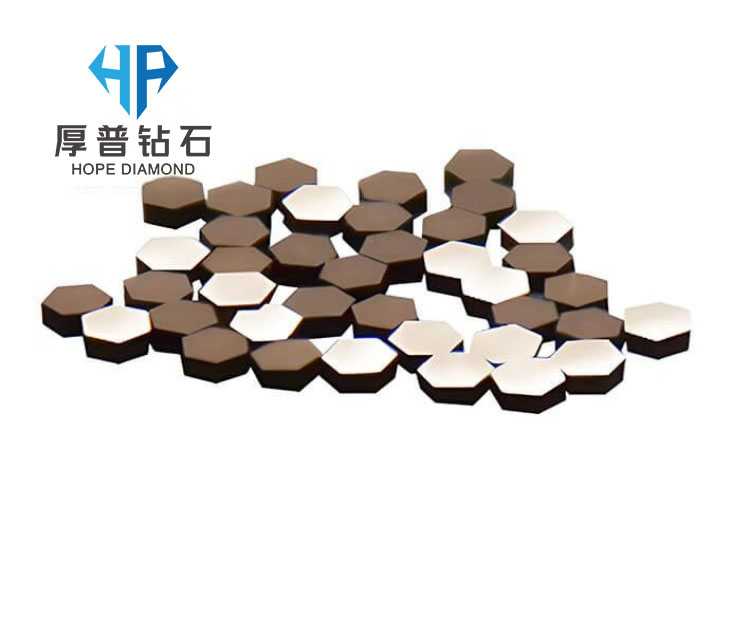

CVD polycrystalline diamond Blanks
Polycrystalline Diamond wire drawing core does not contain any additives, is a polycrystalline structure of pure diamond, with high hardness, wear resistance and thermal stability and high wire drawing finish characteristics, comprehensive PCD polycrystalline wire drawing core and single crystal diamond core advantages
Hope Polycrystalline Diamond wire drawing core does Has more obvious advantages in high temperature drawing and microfilament drawing of tungsten and molybdenum wire, and CVD Polycrystalline Diamond does not conduct electricity, the advantages of making wire core are more prominent, and it is an ideal substitute for natural diamond wire drawing core and imported PCD polycrystalline wire drawing core.
Can be used for copper, aluminum, stainless steel, tungsten, molybdenum and all kinds of alloy wire drawing.
Product Paramenters
Product model | Diameter of inner circle D, (mm) | Thickness T, (mm) | Recommended maximum aperture (mm) |
CVDH1508 | 1.5 | 0.8 | 0.12 |
CVDH1808 | 1.8 | 0.8 | 0.18 |
CVDH2010 | 2.0 | 1.0 | 0.28 |
CVDH2510 | 2.5 | 1.0 | 0.38 |
CVDH3015 | 3.0 | 1.5 | 0.65 |
CVDH4020 | 4.0 | 2.0 | 0.95 |
The shape shown above is a regular hexagon. The recommended hole diameter is suitable for rigid wires; for flexible wires, multiply the hole diameter by 2.0. The insertion temperature should not exceed 800°C. We offer both single-sided and double-sided polishing. Custom shapes and sizes can be cut according to your requirements.
Company Profile
Zhengzhou Hope Superhard Material Co.,Ltd is located in Zhengzhou High-tech Industrial Development Zone. With our proprietary technologies and Self-developed Equipment, we have developed into a high-tech private company integrating scientific research , manufacturing, and sales.
We provide full-range of synthetic diamond and related products including Lab-Grown Diamond, Diamond Powder, Large Single Crystal Diamond, Diamond Micro powder, CBN Powder, MCD and PCD Wire Drawing Die Core, PCD, PDC, PCBN, CVD and Single Crystal Diamond Tool, Wire Drawing Die, Diamond Grinding Wheel etc. These products serve diverse industries such as Aerospace , Electronics, Optics, Machinery, Energy Exploration, Construction and Jewelry.
We are committed to the fundamental principles of exceptional corporate credibility and product quality, leveraging sincere customer service as a bridge to collaboratively create a bright future with our clients.
Our Factory
Our customers
Our Honor
Fast delivery
FAQ
1. What are your business scopes?
-We are a superhard material manufacturer with 20+ years of experience. Our main products include single crystal and polycrystalline diamond, CBN, various micro powders, PCD, PDC, TSP, CVD, PCBN etc and related tool products.
2. What payment methods do you accept?
-We accept T/T, L/C, Alibaba Trade Assurance, and other secure payment methods. Please contact us for more options.
3. Do you offer OEM/ODM services?
-Yes, we provide customized OEM/ODM services, including logo printing, packaging design, andproduct specifications tailored to your requirements.
4.Can I get a sample before placing a bulk order?
-Yes, we do provide samples for quality evaluation, but the buyer is responsible for the sample and shipping costs.
5. What is your production lead time?
-After order confirmation and deposit payment, our standard production time is 7 working days for a regular order. This time may vary based on the order quantity, product complexity, and customization requirements.
