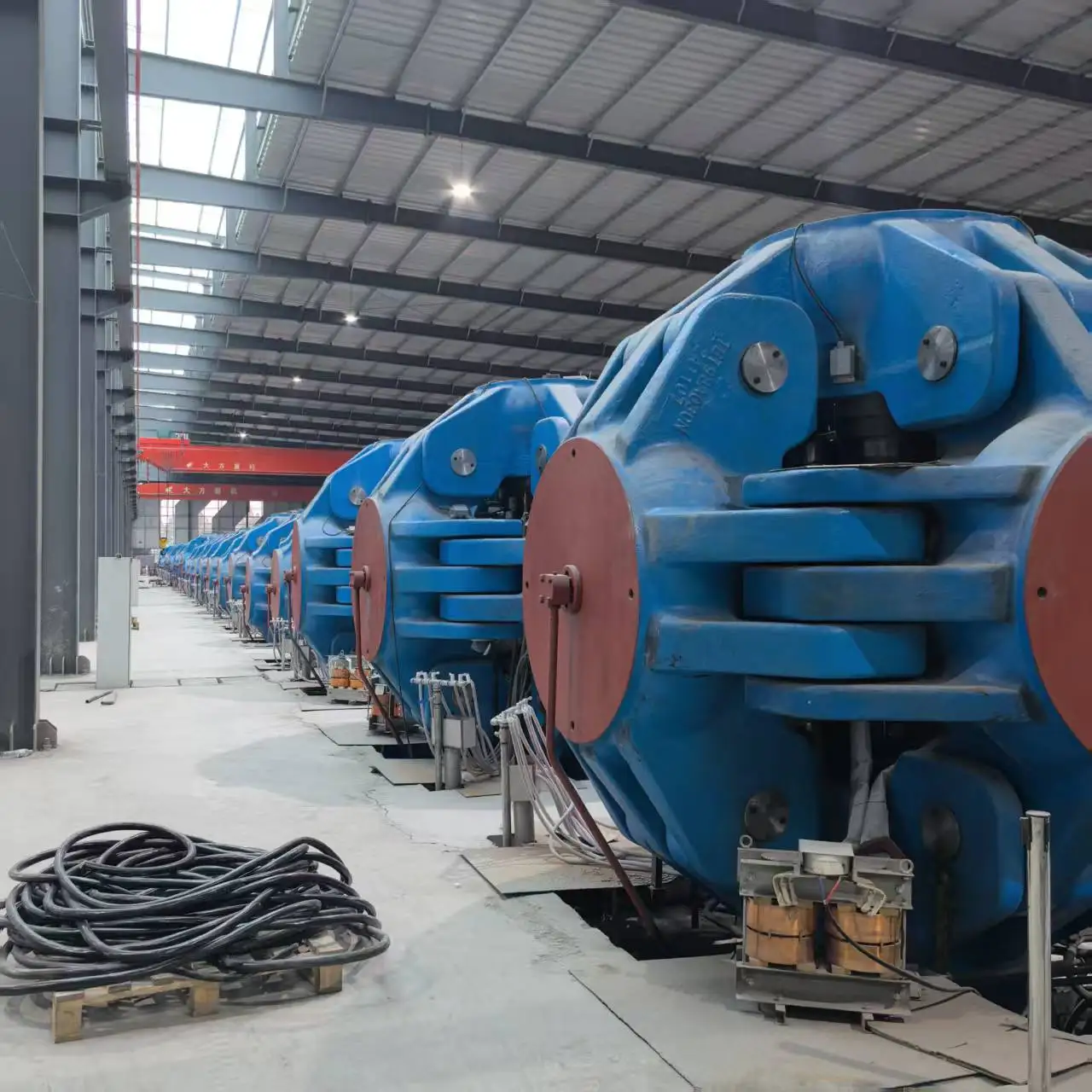

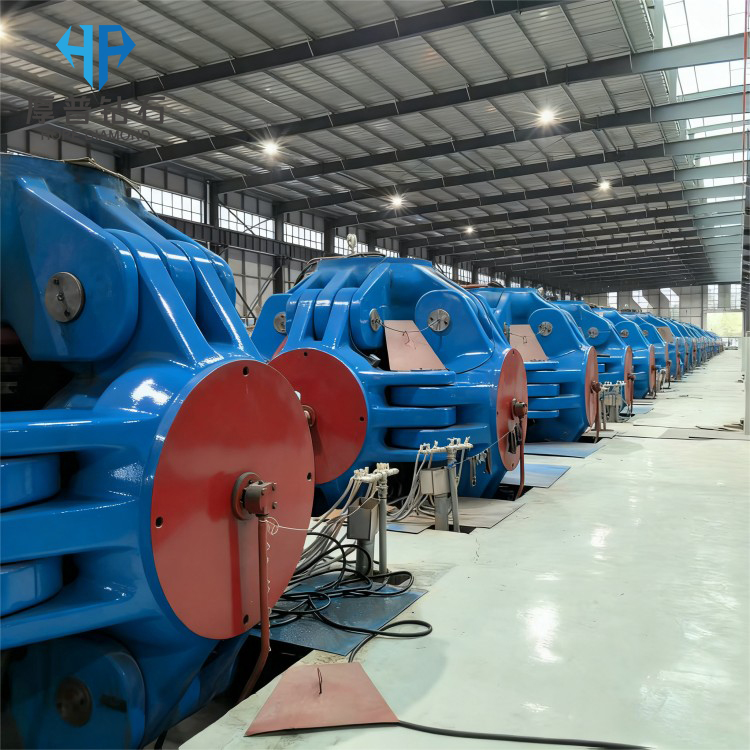

HPHT Cubic Hydraulic Press Machine
Overview：
The HPHT Cubic Hydraulic Press Machine is a key equipment for cultivating Lab Grown Diamond, Memorial Diamond, PCD, CBN and PCBN.
Advantages:

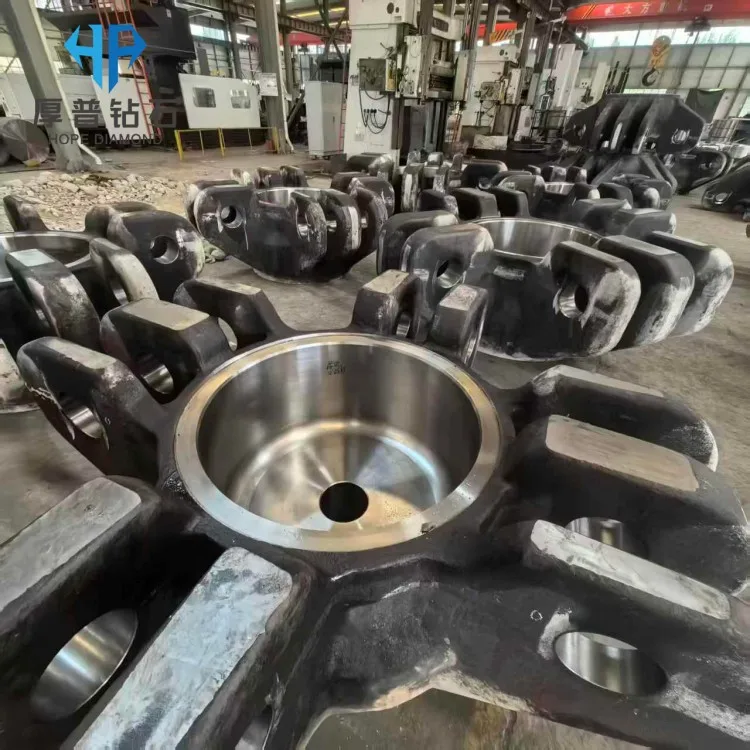

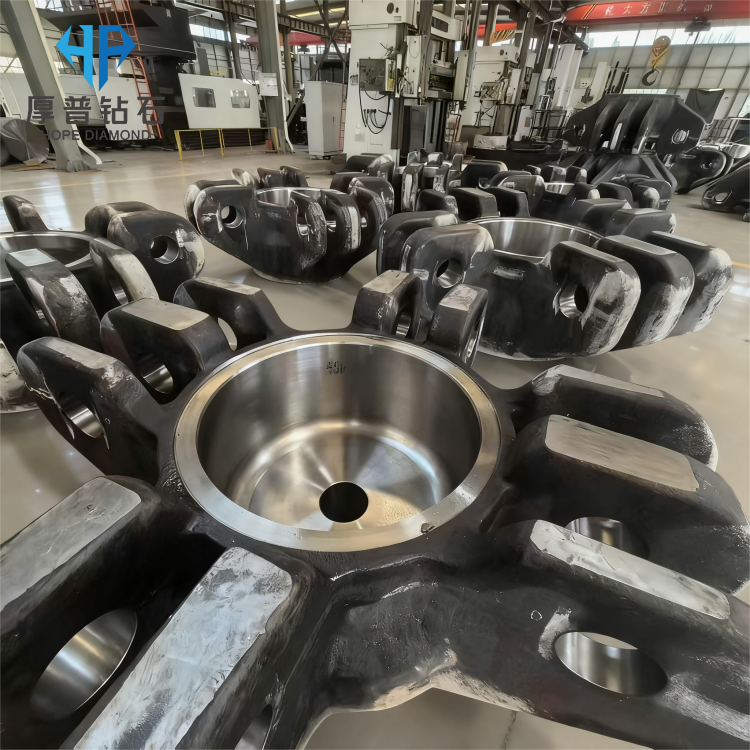

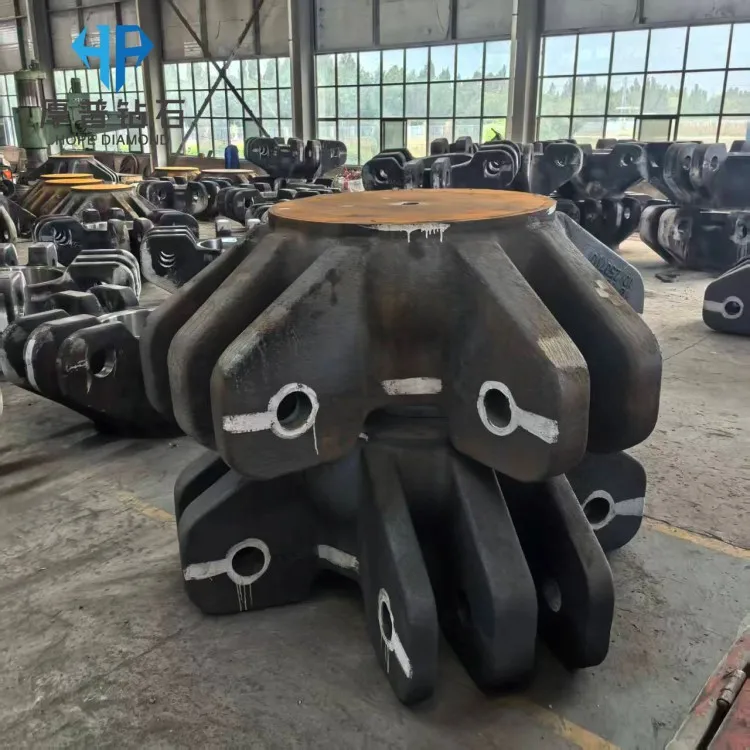

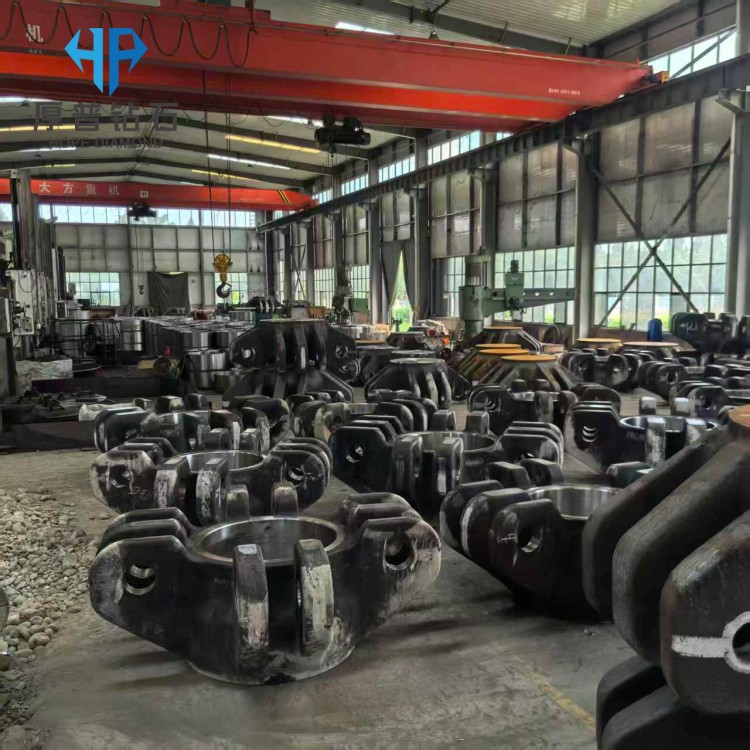

The self-developed and manufactured HPHT equipment represents the leading level in the super-hard materials industry. Our HPHT machines adopt an integrated cylinder -- hing beam forged process. Under equivalent conditions, forged hinge beams demonstrate superior rigidity and strength compared to cast ones, effectively enhancing the press reliability and extending service life. With notable advantages such as minimal manufacturing defects, high strength, high precision, and extended service life, Our HPHT machine serves as upgraded replacements for cast hinge beam HPHT machine.
Warranty:
The hinge beam and piston warranty time is 5 years, The Hydraulic press and electrical system warranty time is 1 years.
Installing and commissioning equipment as well as training how to operate the machine. We also provide technology transfer and online guidance.
Beyond Equipment – Comprehensive Technical Assurance!
1. All-round Technical Support: Installation, commissioning, and operator training, with assistance in setting and optimizing initial process parameters.
2. Lifetime Technical Support & Free Spare Parts within 1 Year: Ensuring worry-free operation and long-term reliability.
3. 7*24h Rapid Response After-sales Team: Guaranteeing production continuity without interruption.
4. Remote Diagnostics & Spare Parts Support: Efficient troubleshooting to minimize downtime.
At the same time, our factory also produces and supplies various HPHT machine accessories, such as Pyrophyllite Cubic, Tungsten Carbide Anvil, and Steel Ring.
Zhengzhou Hope Superhard Material Co.,Ltd is committed to becoming your one-stop purchasing platform, helping you conduct business more efficiently and create greater profits.
view more
Product Paramenters
Model (forged) | Hope650 | Hope850 | Hope900 | Hope1000 |
Diameter of working cylinder (mm) | 650 | 850 | 900 | 1000 |
Anvil Size(mm) | ∮160 | ∮199 | ∮220 | ∮240 |
Design pressure (MPa) | 110 | 110 | 110 | 110 |
Six-cylinder pressure (KN) | 216000 | 372000 | 420000 | 468000 |
Ultra-high pressure (MP) | 110 | 110 | 110 | 110 |
Working pressure (Mpa) | 90-100 | 90-100 | 90-100 | 90-100 |
Maximum piston strok | 85mm | 95mm | 100mm | 105mm |
Total engine power (KW) | 11Kw+15Kw | 11Kw+15Kw | 15Kw+18.5Kw | 18.5Kw+22Kw |
Overal Dimension (mm) (L*W*H | 2350mm*2350mm*3030mm | 2980mm*2980mm*3630mm | 3040mm*3040mm*3640mm | 3270mm*3270mm*3830mm |
Weight (t) | 40T | 62T | 78T | 110T |
Company Profile
Zhengzhou Hope Superhard Material Co.,Ltd is located in Zhengzhou High-tech Industrial Development Zone. With our proprietary technologies and Self-developed Equipment, we have developed into a high-tech private company integrating scientific research, manufacturing, and sales.
We provide full-range of synthetic diamond and related products including Lab-Grown Diamond, Diamond Powder, Large Single Crystal Diamond, Diamond Micro powder, CBN Powder, MCD and PCD Wire Drawing Die Core, PCD, PDC, PCBN, CVD and Single Crystal Diamond Tool, Wire Drawing Die, Diamond Grinding Wheel etc. These products serve diverse industries such as Aerospace, Electronics, Optics, Machinery, Energy Exploration, Construction and Jewelry.
We are committed to the fundamental principles of exceptional corporate credibility and product quality, leveraging sincere customer service as a bridge to collaboratively create a bright future with our clients.

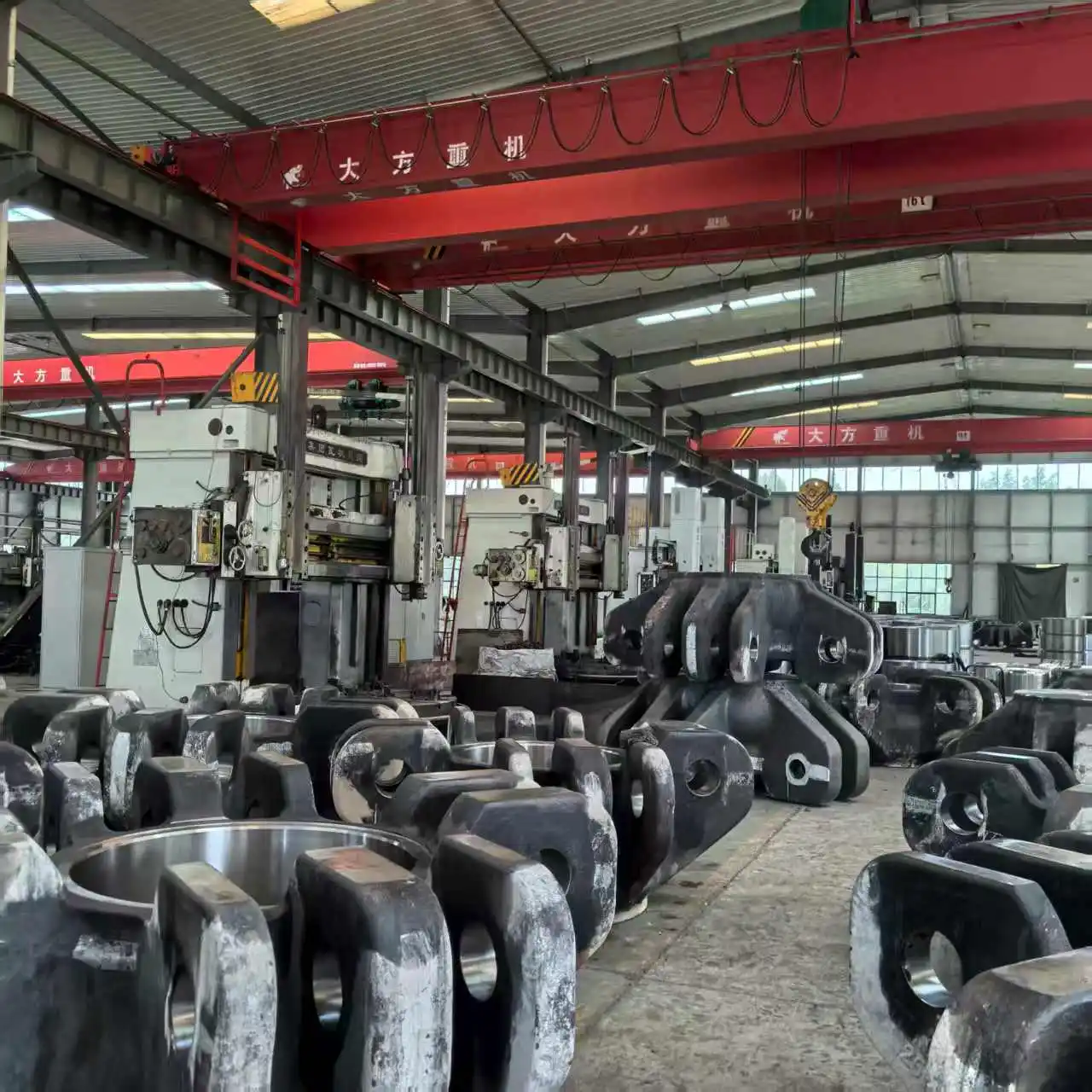

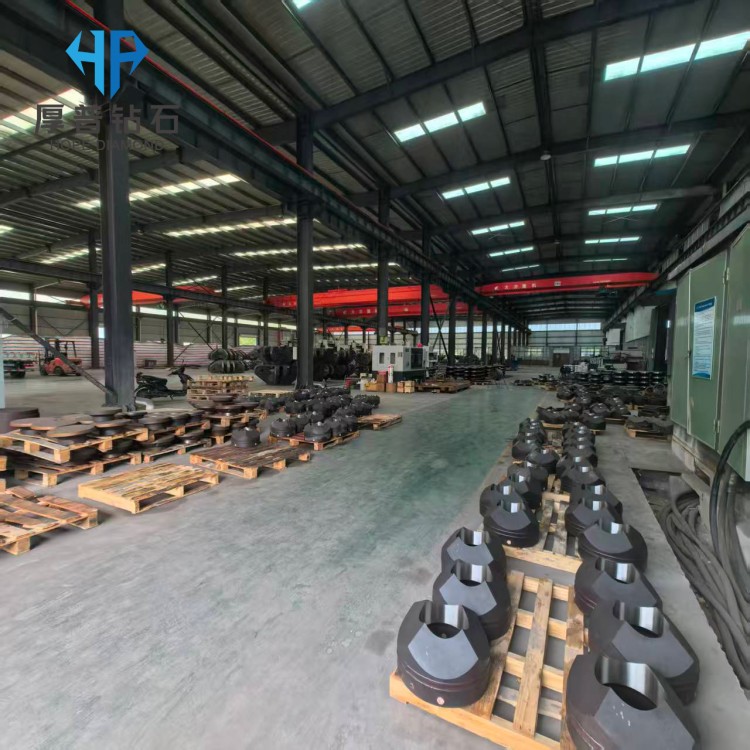

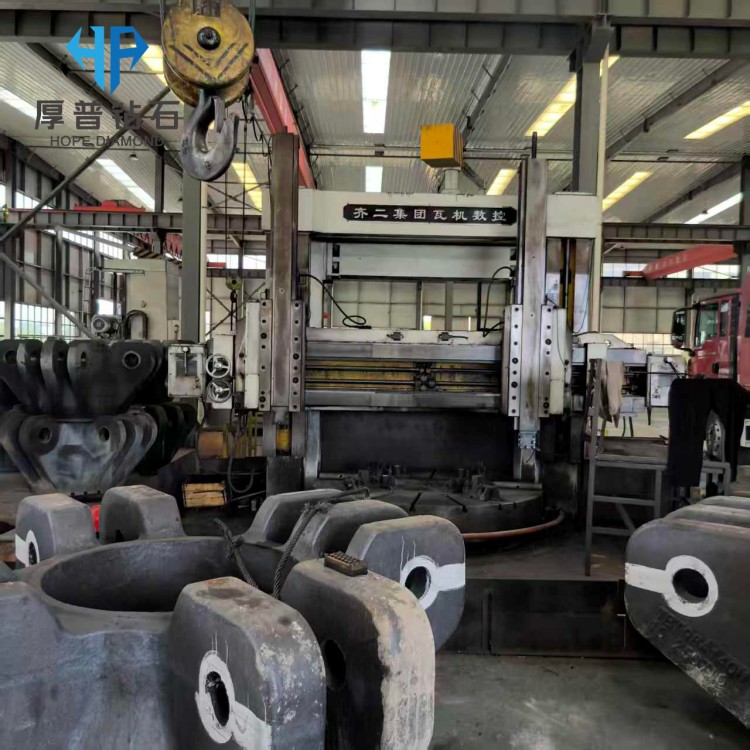

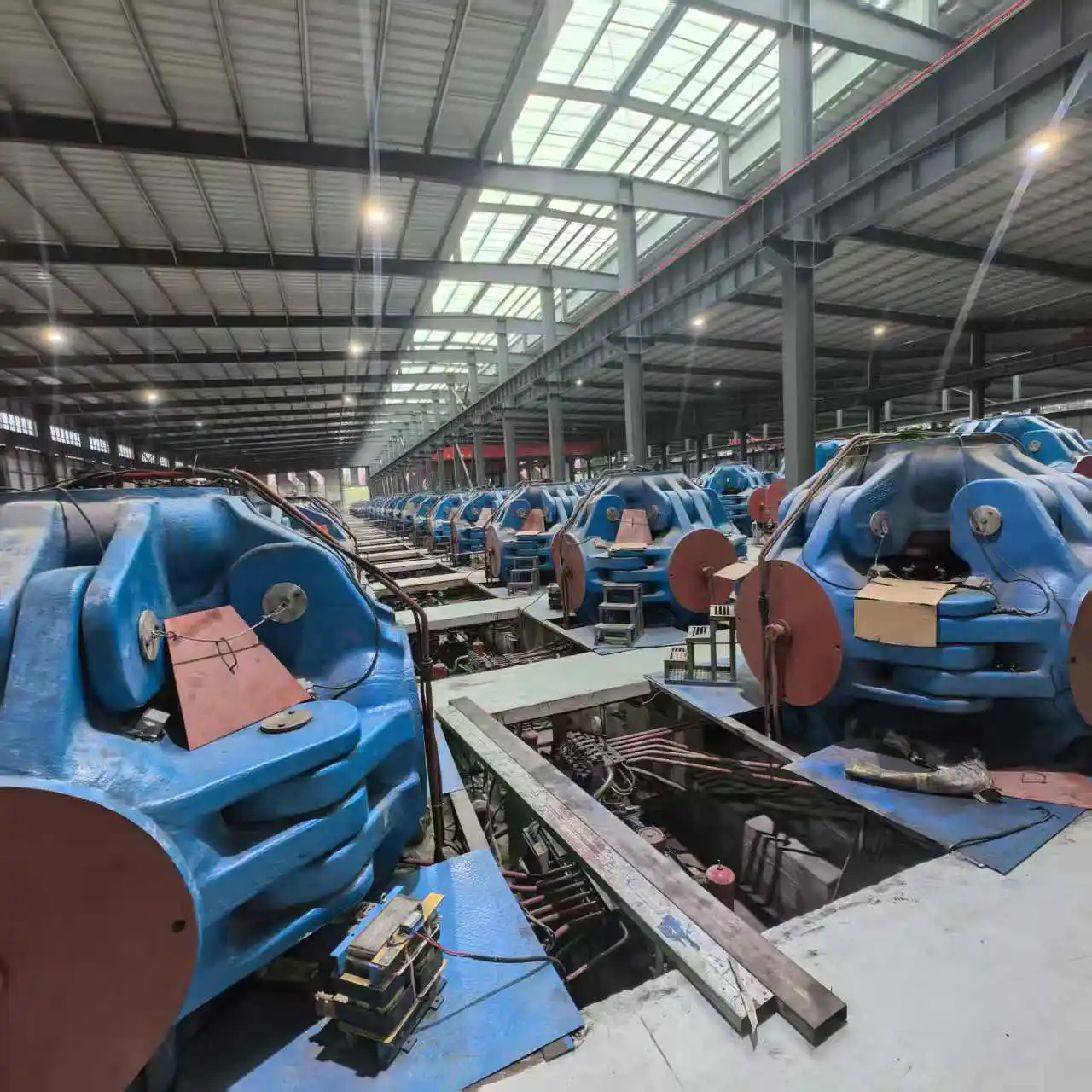

Our Factory
Our Customers
Our Honor
Fast delivery
FAQ
1. What are your business scopes?
-We are a superhard material manufacturer with 20+ years of experience. Our main products include single crystal and polycrystalline diamond, CBN, various micro powders, PCD, PDC, TSP, CVD, PCBN etc and related tool products.
2. What payment methods do you accept?
-We accept T/T, L/C, Alibaba Trade Assurance, and other secure payment methods. Please contact us for more options.
3. Do you offer OEM/ODM services?
-Yes, we provide customized OEM/ODM services, including logo printing, packaging design, andproduct specifications tailored to your requirements.
4.Can I get a sample before placing a bulk order?
-Yes, we do provide samples for quality evaluation, but the buyer is responsible for the sample and shipping costs.
5. What is your production lead time?
-After order confirmation and deposit payment, our standard production time is 7 working days for a regular order. This time may vary based on the order quantity, product complexity, and customization requirements.
