Products Description

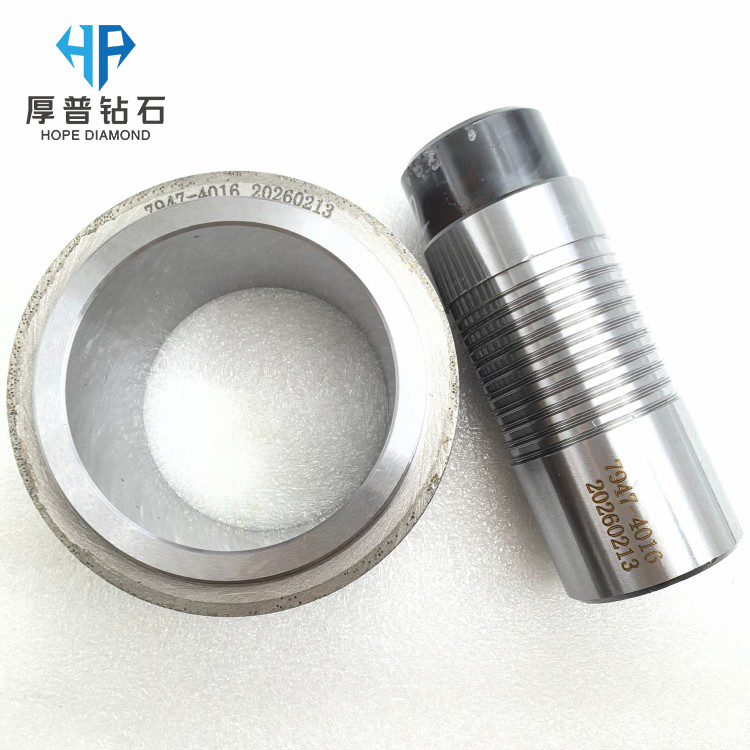

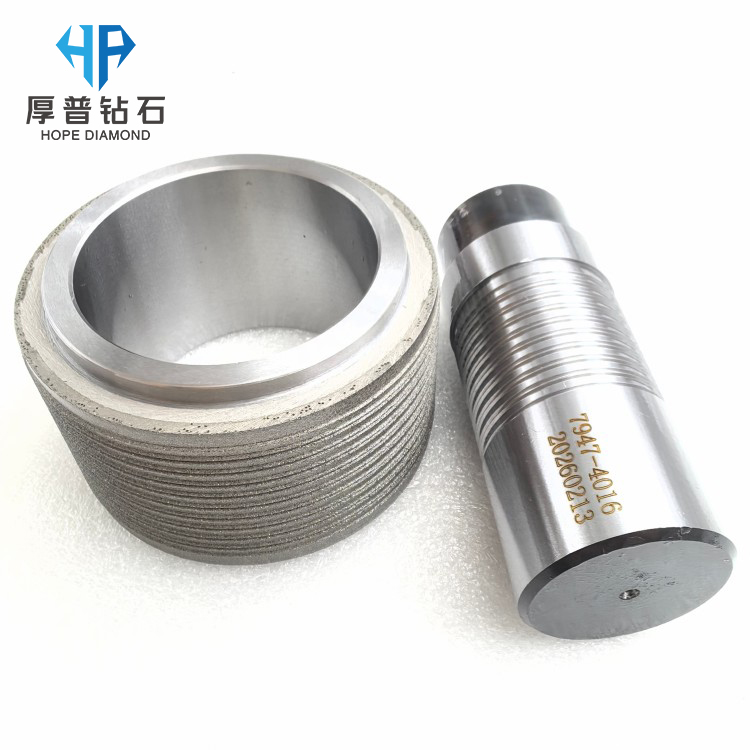

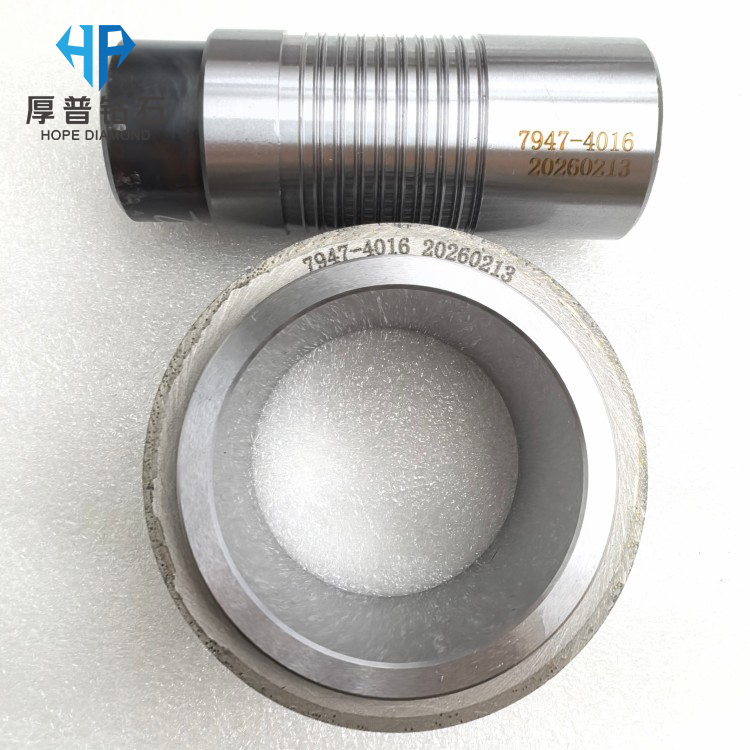

The diamond roller dresser (also known as a rotary dresser) is a type of diamond roller tool used for grinding wheel dressing, featuring a working surface embedded with numerous fine diamond grains. Its operating principle is that conventional grinding wheels or CBN grinding wheels are shaped and dressed by the diamond roller dresser mounted on the grinding machine; after dressing, the grinding wheel machines the workpieces, allowing the contour, accuracy, and dimensions of the diamond roller dresser to be transferred through the grinding wheel onto the surface of the parts being ground.
Our Advantages
Selection of Raw Materials
Diamond types mainly include natural diamond, synthetic diamond, and CVD diamond. The selection of diamond type and its arrangement along the edge determine the service life and performance of the diamond rotary dresser. Engineers select appropriate diamond types based on customers’ specific application requirements.
Synthetic Diamond
Natural Diamond
CVD
Product Application Range
CNC dressing technology of dresser can be applied to all grinding fields with flexible CNC control which can easily change the machining process. It can trim various shapes of grinding wheel and is more suitable for small and medium batch processing.
Applications: Gears, threads, bearing journals, valves, engine valves, fuel injection assemblies, engine components, transmission components, etc.
R&D Design, OEM&ODM
When customers place orders for dressing rollers, the required information includes the outer diameter, included angle, radius, width, and inner bore size. Based on these parameters, our engineers prepare a diamond roller design drawing and submit it to the customer’s engineering team for confirmation to ensure the design fully meets their requirements.
Profile degree=R±0.002 R Tolerance=±0.002 R Minimum=0.02M
Product Paramenters
Product Name | Diamond dressing roller |
Shape | Customizable |
Process | Sintering / Electroplating |
Diamond Types | Natural diamond, synthetic diamond, CVD diamond. |
Features | Simple operation, high dressing efficiency, long service life, stable quality. |
Application | Applications in the automotive, aerospace, power generation, mechanical and precision engineering industries, and parts manufacturing industries. |
How To Order | Outside diameter; inclusive angle; radius; tool width; bore size; workpiece; machine tool; etc. |
