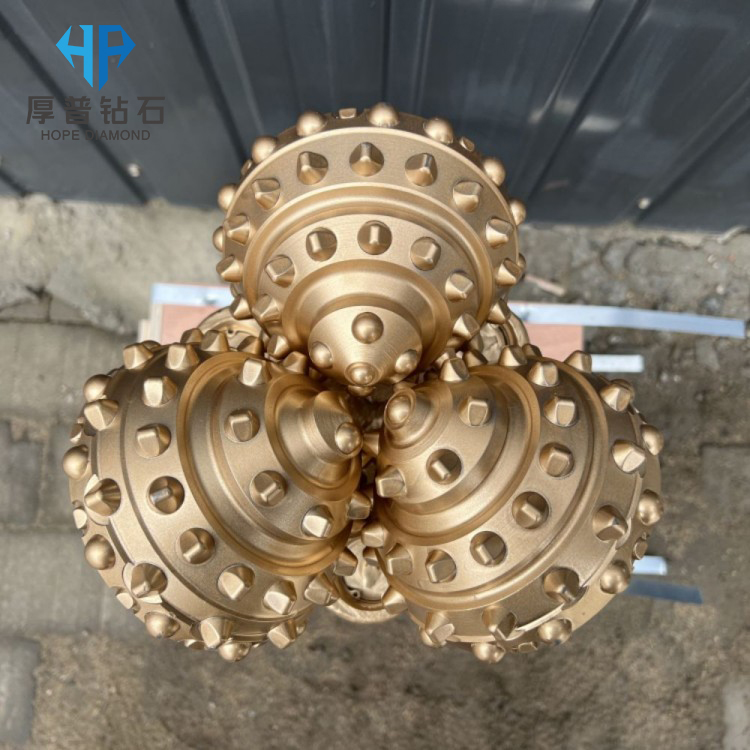

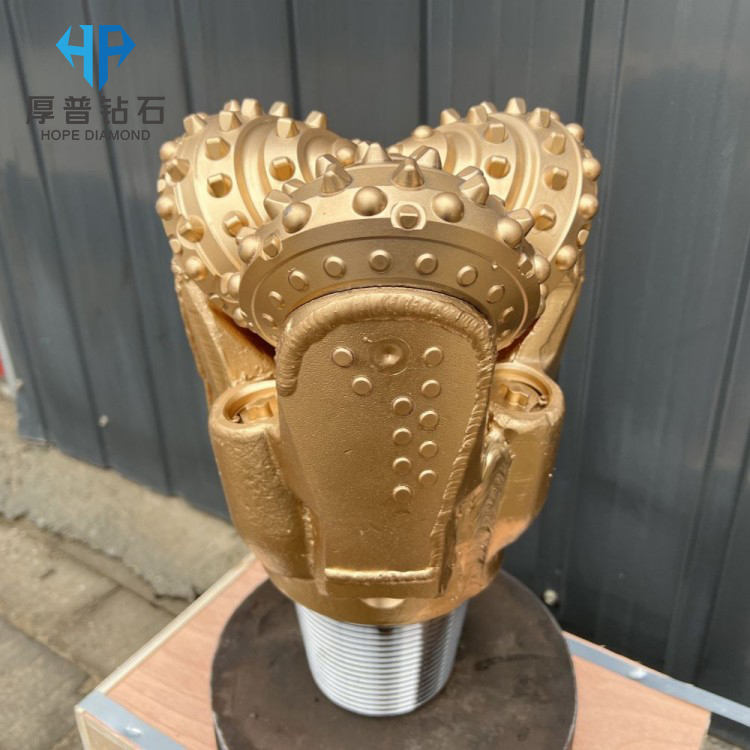

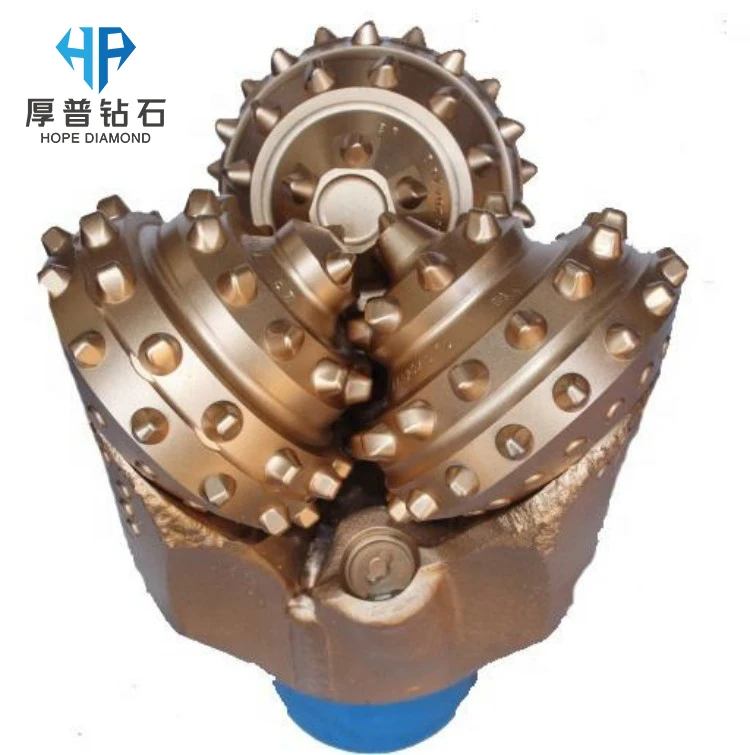

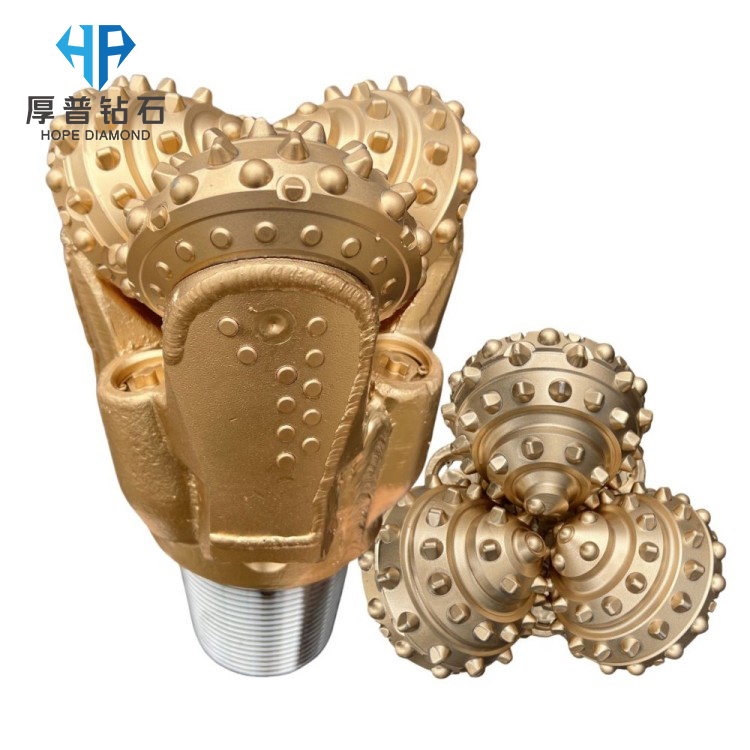

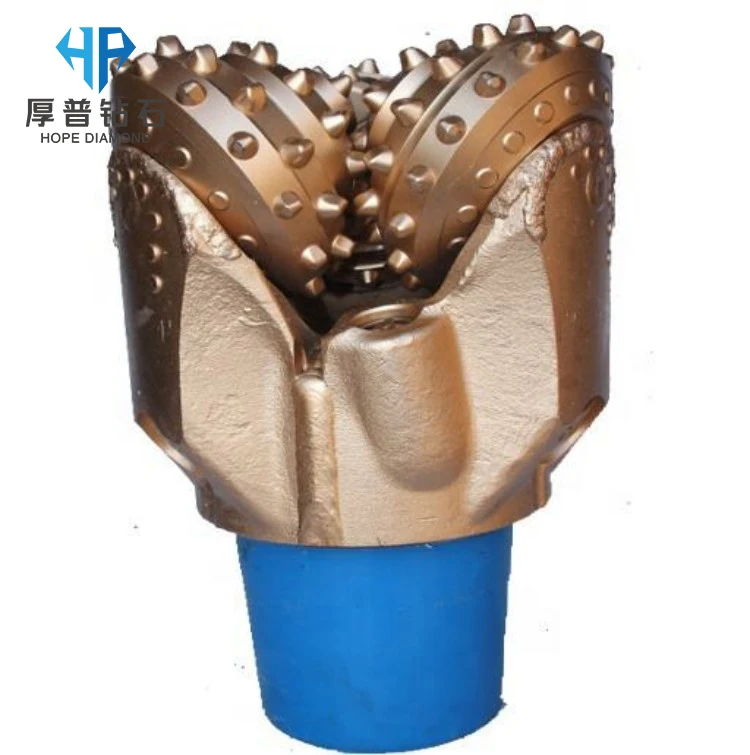

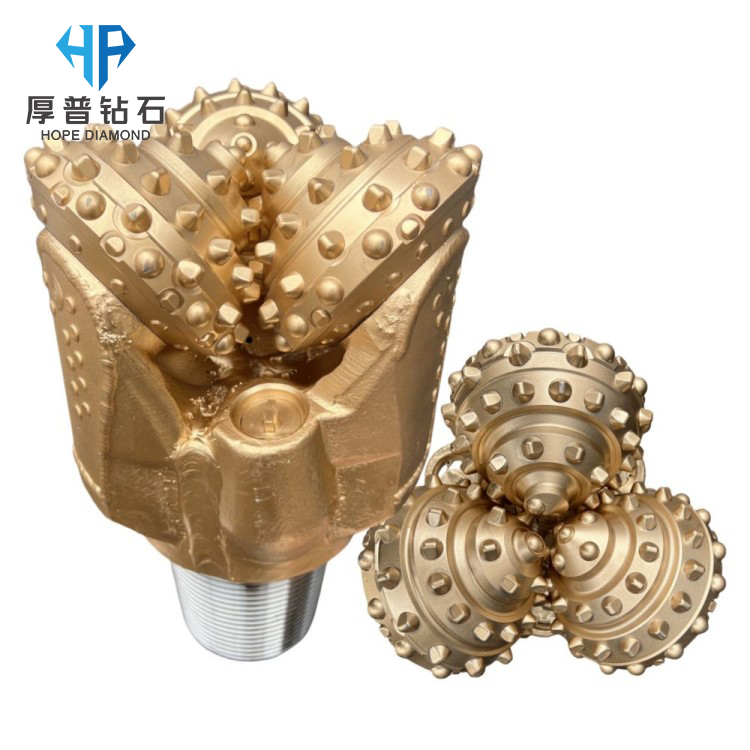

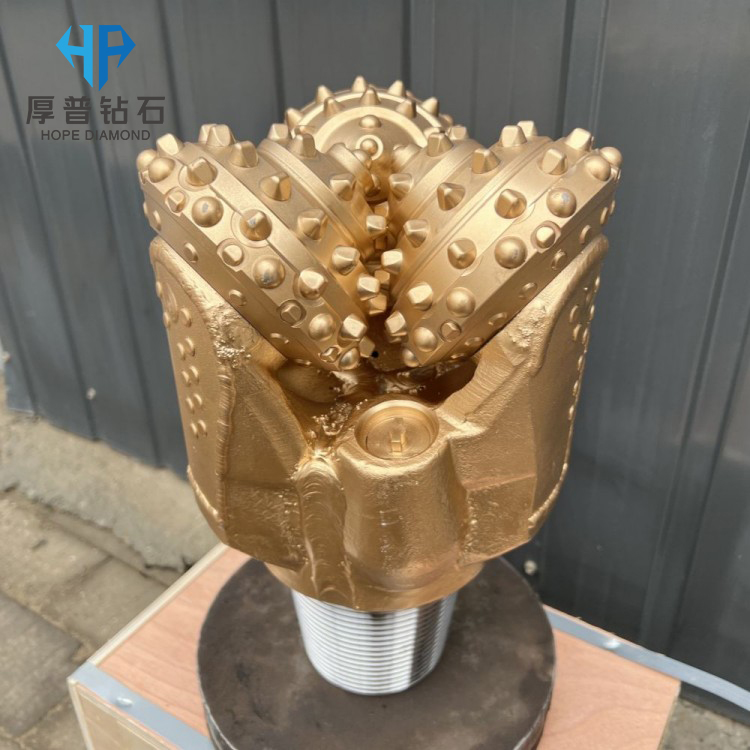

Tricone Drill Bit

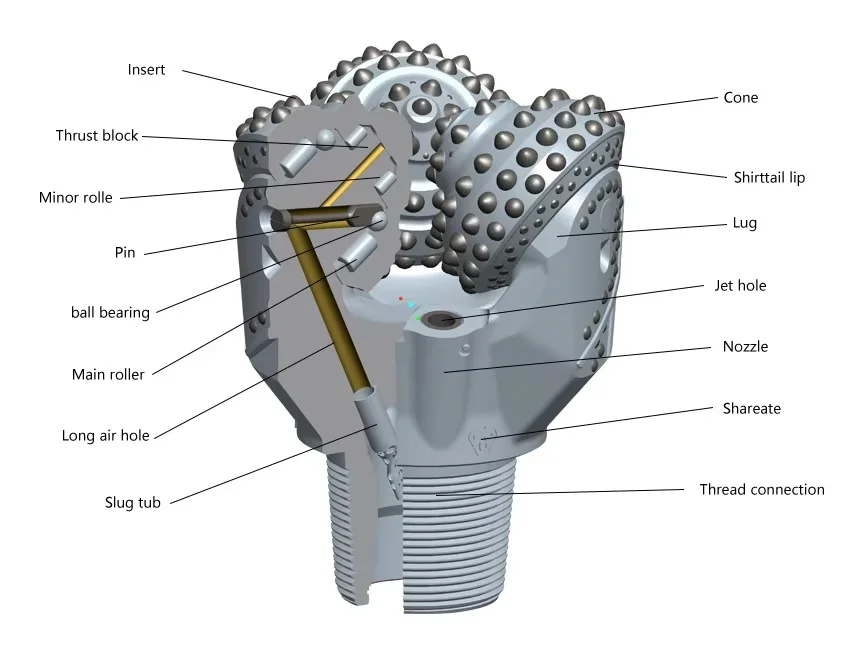

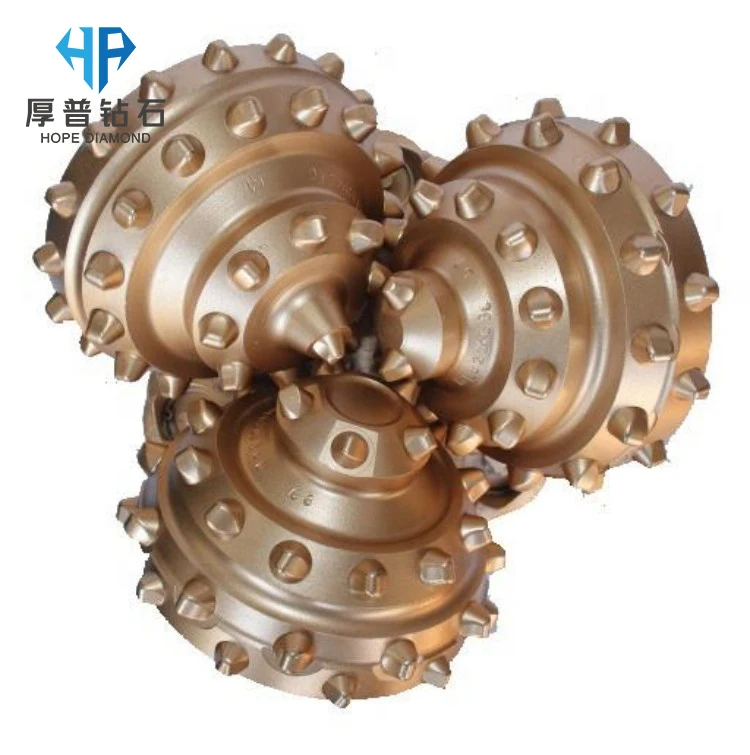

Tricone Drill Bit is an ideal solution from soft to hard rock formations, it is connected with the drill stem and rotates along with it, and drive cones to pressed on the rock. Each cone rotates round the axis of its leg and three cones simultaneously revolve around the bit center. The tungsten carbide inserts on the cone shell cause the formation to spall under the weight on bit and the impact load of cone rotating, the debris will be discharged out to hole by compression air.
Hope tricone bit used for geoloical prospecting, development of oil and gas,drilling water wells, blast holes and making holes for seismic prospecting, construction engineering. Now there are eleven common types of tricone rock bits.
Steel teeth series: IADC CODE: 116, 117, 126, 127, 136, 137, 216, 217, 317, 337.
TCI series: IADC CODE: 417, 437, 447, 517, 527, 537, 547, 617, 627, 637, 647, 737, 837.
TCI tricone bit, TCI roller Bits, roller bit, steel tooth roller bit, TCI roller bit, TCI tricone bit.
1.Sizes rang from 3 7/8" to 26".
2. Covers almost all IADC code.
3. Reliable quality and reasonable price.
R&D Design, OEM&ODM
Why Choose Us
1. Designed and tested for various geological conditions.
2. Reduced drilling costs through longer bit life.
3. Fast delivery & professional customization service.
4. OEM / ODM support available.

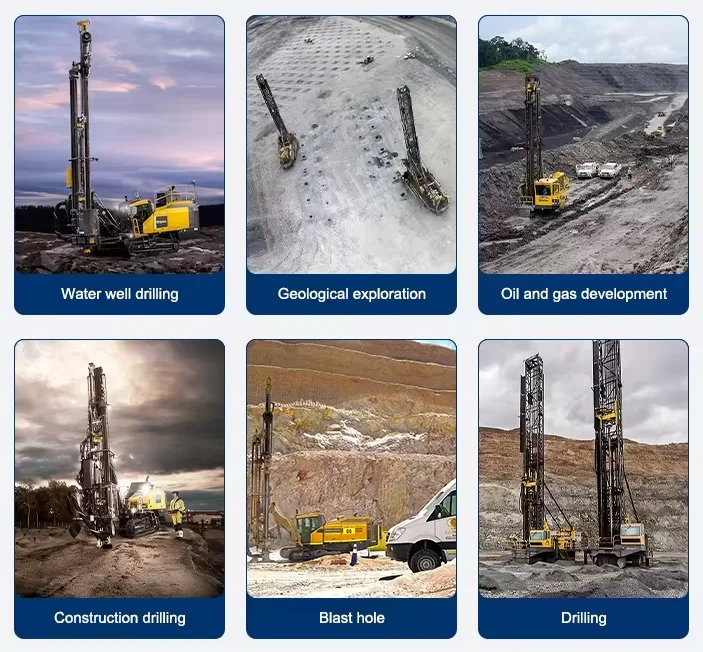

Product Application Range
Product Paramenters
IADC | WOB | RPM | Application |
(KN/mm) | (r/min) |
111/114/115 | 0.3-0.75 | 200-80 | Very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk. |
116/117 | 0.35-0.8 | 150-80 | Very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk. |
121 | 0.3-0.85 | 200-80 | Soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone. |
124/125 |
| 180-60 |
131 | 0.3-0.95 | 180-80 | Soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds. |
136/137 | 0.35-1.0 | 120-60 |
211/241 | 0.3-0.95 | 180-80 | Medium formations with high compressive strength, like medium, soft shake, hard gypsum, medium soft limestone, medium soft
sandstone, soft formation with harder interbeds. |
216/217 | 0.4-1.0 | 100-60 |
246/247 | 0.4-1.0 | 80-50 | Medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite. |
321 | 0.4-1.0 | 150-70 | Medium abrasive formations, like abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble. |
324 | 0.4-1.0 | 120-50 |
437/447/435 | 0.35-0.9 | 240-70 | Very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk, gypsum, salt, soft limestone. |
517/527/515 | 0.35-1.0 | 220-60 | Soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone. |
537/547/535 | 0.45-1.0 | 220-50 | Soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds. |
617/615 | 0.45-1.1 | 200-50 | Medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite. |
637/635 | 0.5-1.1 | 180-40 | Hard formation with high compressive strength, like limestone, sandstone, dolomite, hard gypsum, marble. |
Company Profile
Zhengzhou Hope Superhard Material Co.,Ltd is located in Zhengzhou High-tech Industrial Development Zone. With our proprietary technologies and Self-developed Equipment, we have developed into a high-tech private company integrating scientific research, manufacturing, and sales.
We provide full-range of synthetic diamond and related products including Lab-Grown Diamond, Diamond Powder, Large Single Crystal Diamond, Diamond Micro powder, CBN Powder, MCD and PCD Wire Drawing Die Core, PCD, PDC, PCBN, CVD and Single Crystal Diamond Tool, Wire Drawing Die, Diamond Grinding Wheel etc. These products serve diverse industries such as Aerospace, Electronics, Optics, Machinery, Energy Exploration, Construction and Jewelry.
We are committed to the fundamental principles of exceptional corporate credibility and product quality, leveraging sincere customer service as a bridge to collaboratively create a bright future with our clients.
Our Factory
Our customers
Our Honor

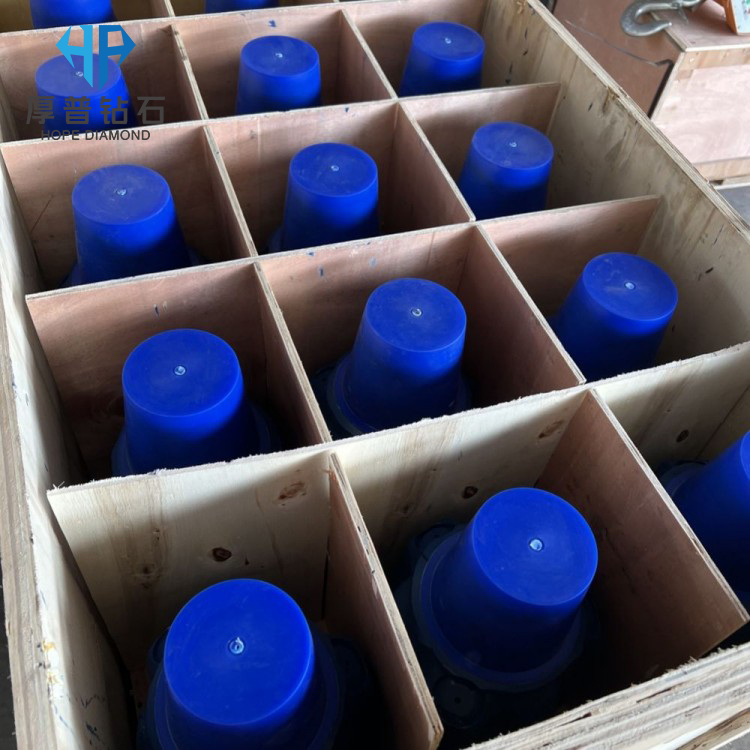

Fast delivery
FAQ
Q1. What formations are PDC water well drill bits suitable for?
A: Our PDC bits are ideal for drilling in soft to medium-hard formations, such as clay, sandstone, shale, and limestone. For harder formations, we recommend consulting us for customized cutter designs.
Q2. Can you customize the drill bit size and connection type?
A: Yes. We offer a wide range of sizes (3"–17") and thread connections (API REG, API IF, etc.). Custom specifications are available based on your drilling rig and project requirements.
Q3. How long is the service life of your PDC bits?
A: Service life varies depending on formation hardness, operating parameters, and maintenance, but our PDC bits typically last 2–4 times longer than traditional steel tooth or tricone bits under similar conditions.
Q4: Do you offer OEM or branding services?
A: Yes, we support OEM/ODM services, including logo engraving, packaging design, and custom color options.
Q5: How long is your delivery time?
A: For customized sizes, delivery is typically within 7–15 working days depending on order quantity and complexity.
Q6: Can I get a sample to test quality?
A: Yes, sample orders are welcomed. We suggest starting with a trial quantity to verify performance in your local drilling conditions.
