Product:

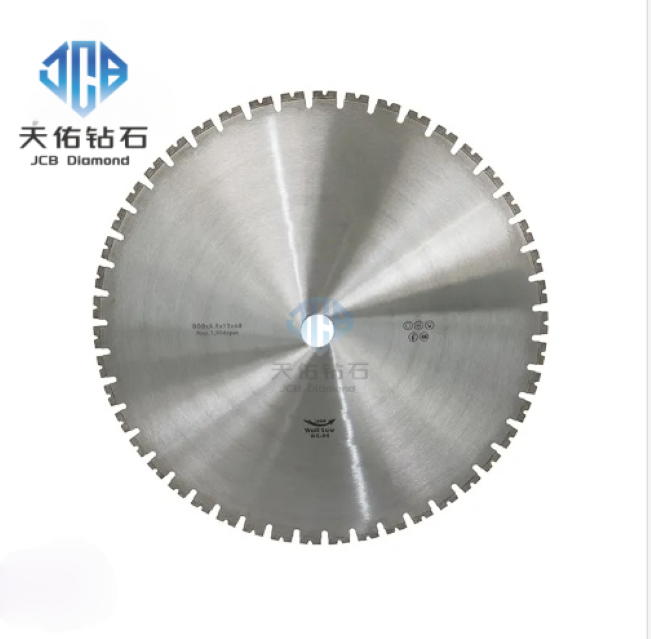

Diamond saw blade(what is laser welded diamond saw blade),The concrete diamond wall saw applies to cut and recondition kinds of reinforce concrete such as bridge, pillar, wall and etc. We can also provide the segments separately.
Features:
1. Better cutting sharpness and service life, high effective, environmental friendly, easy operation and no edge broken
2. Formula and structure specially designed for concrete cutting
3. Diamond and steel power raw material
4. Multi hole design/OEM service are available
5. Laser welding process

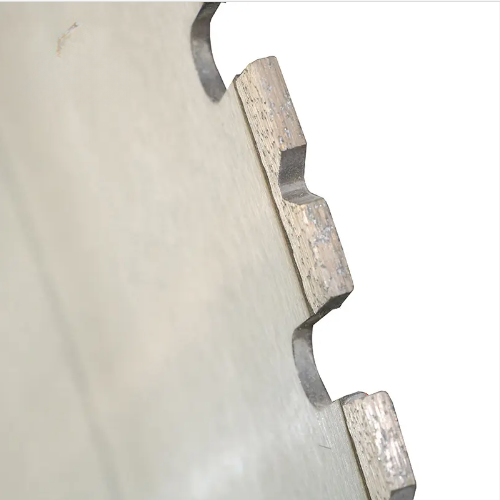

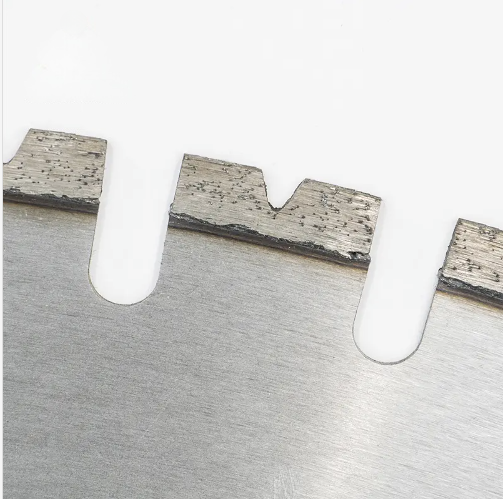

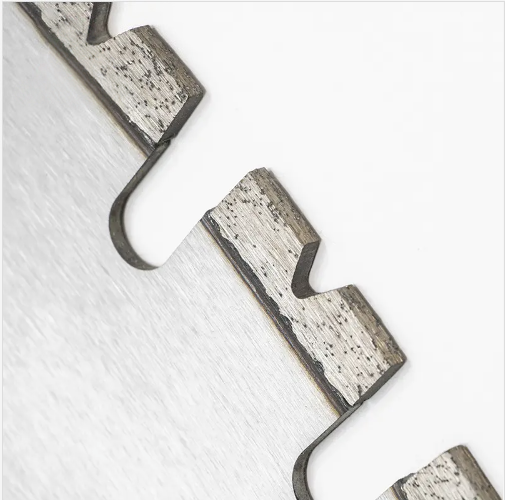

6. Specially designed “V” shaped Segment can improve cutting efficiency and have good heat dissipation function.
For more types of diamond saw blade,please click here.
Specification | Segment Size | Segment Number | Optional Core Diameter(mm) |
500 | 40*4.6*12 | 30 “V” shape | 25.4 30.5 50 60 80 |
600 | 40*4.6*12 | 36 “V” shape | |
650 | 40*4.6*12 | 38 “V” shape | |
700 | 40*4.6*12 | 42 “V” shape | |
750 | 40*4.6*12 | 44 “V” shape | |
800 | 40*4.6*12 | 46 “V” shape | |
900 | 40*4.6*12 | 50 “V” shape | |
1000 | 40*4.6*12 | 56 “V” shape | |
1050 | 40*4.6*12 | 60 “V” shape | |
1100 | 40*4.6*12 | 64 “V” shape | |
1200 | 40*4.6*12 | 70 “V” shape |
