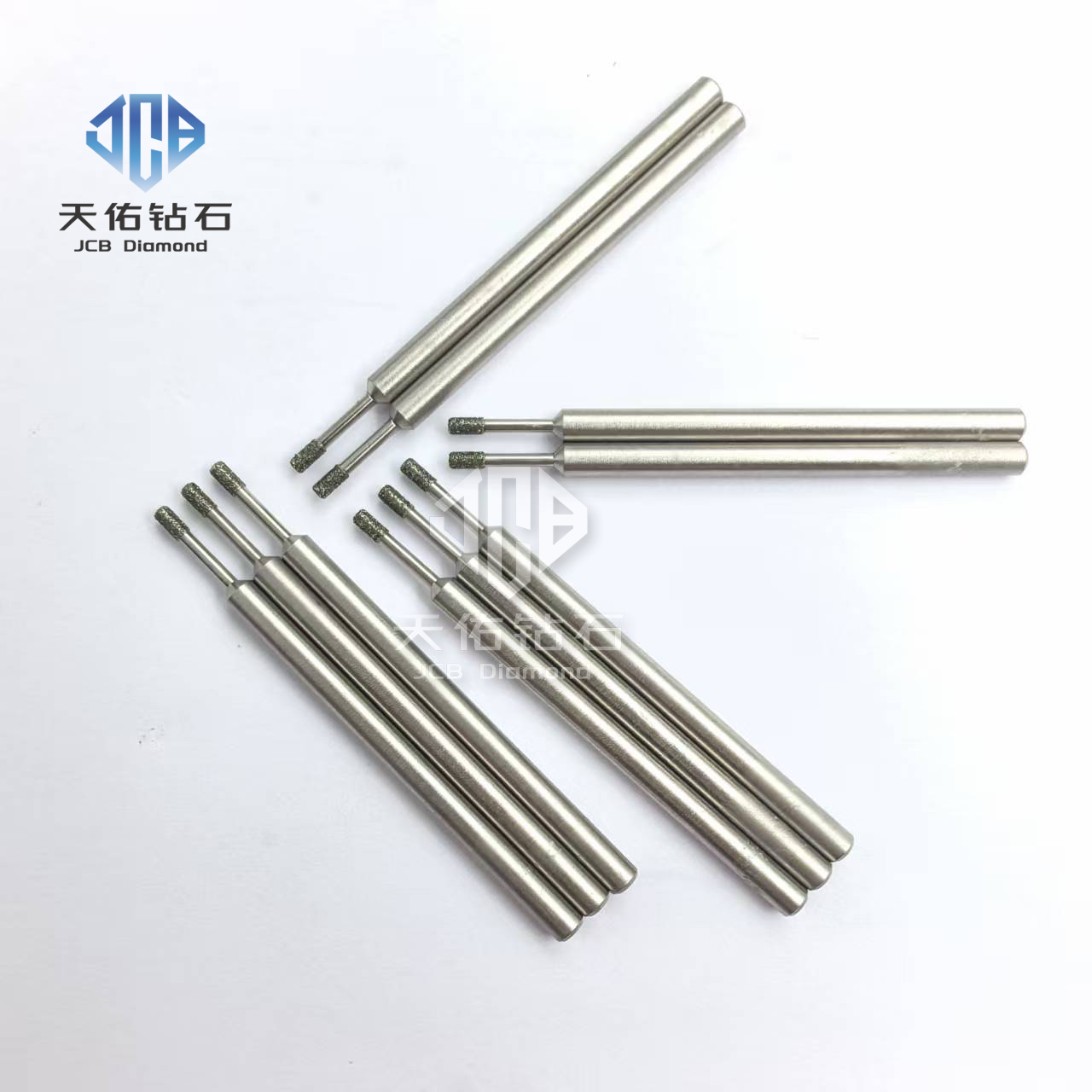

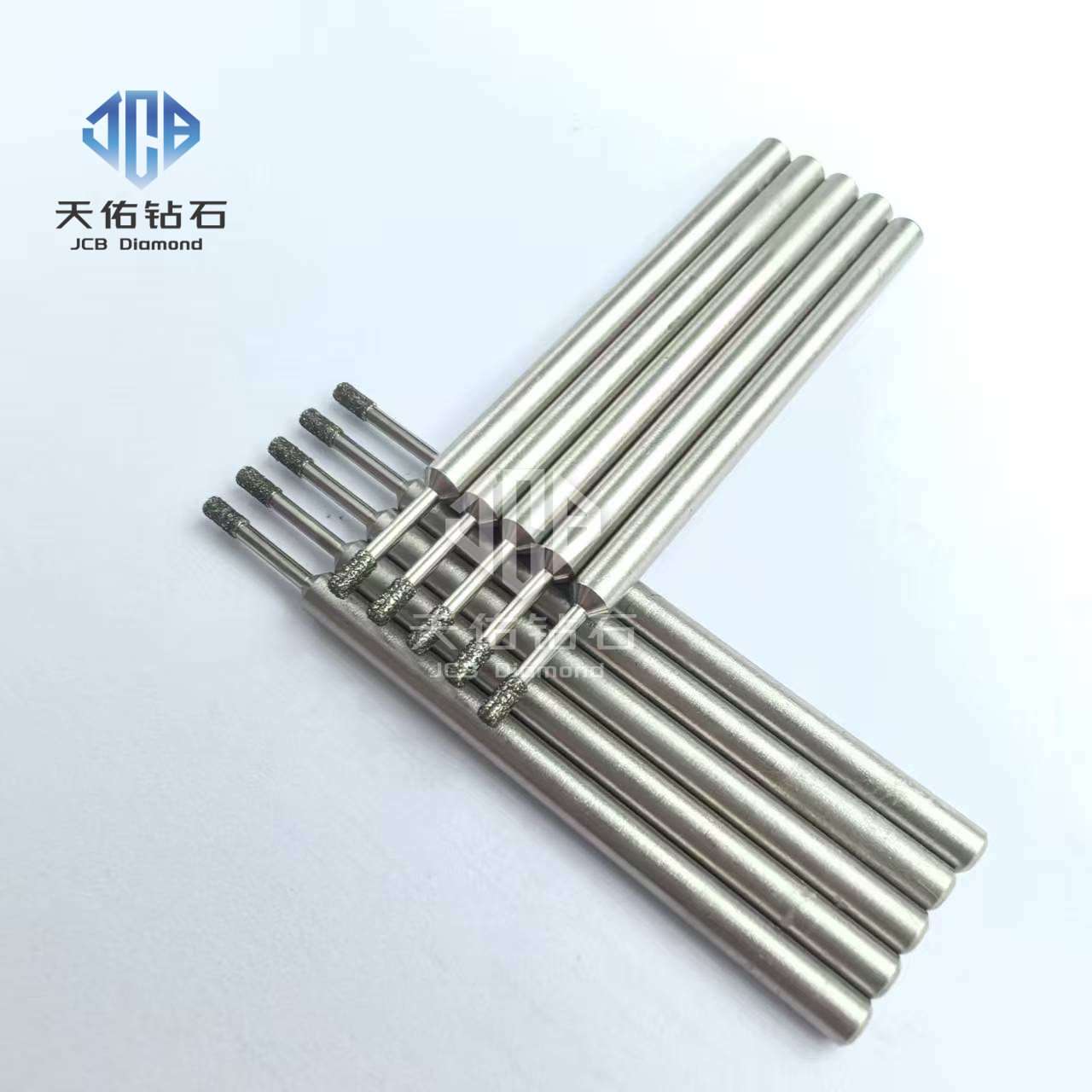

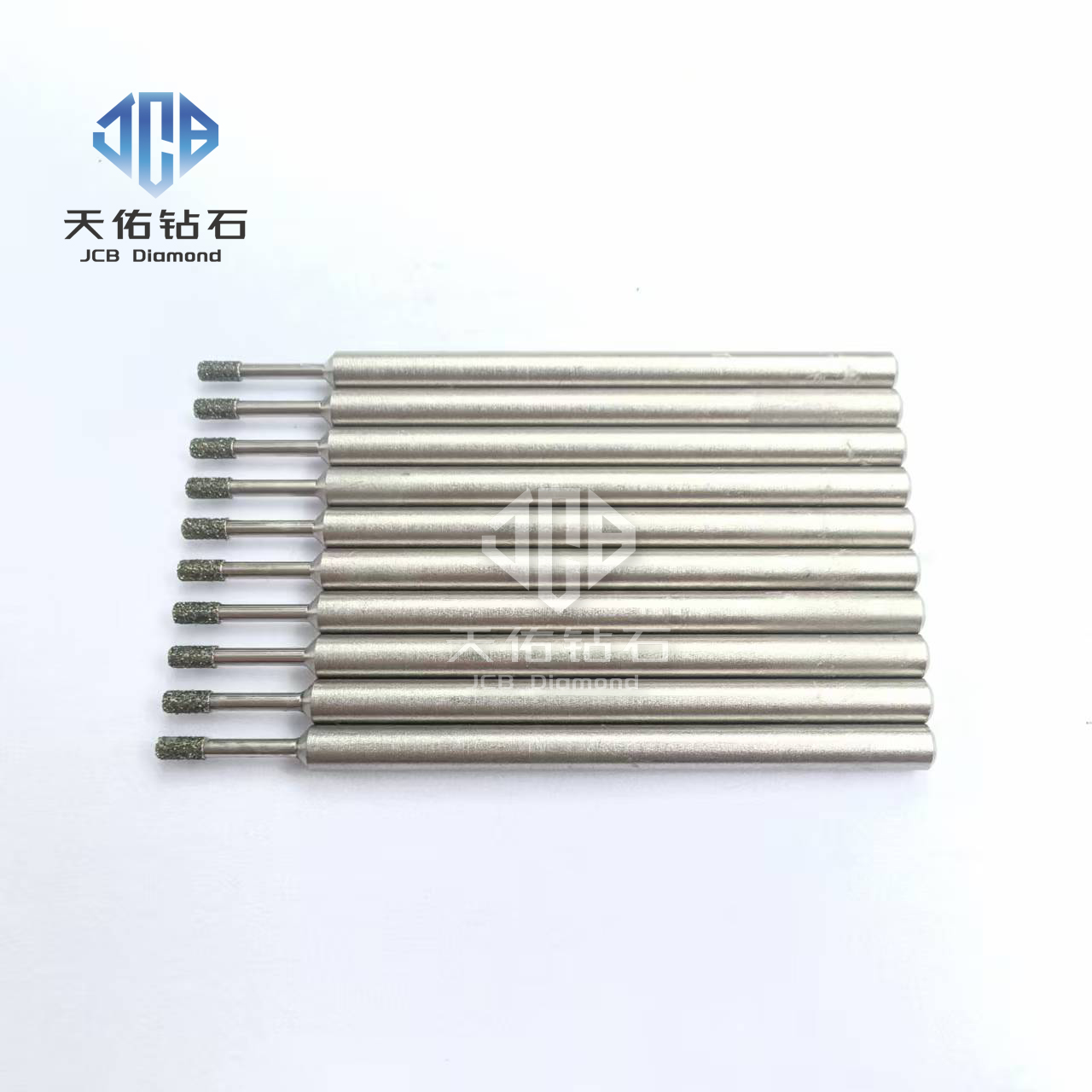

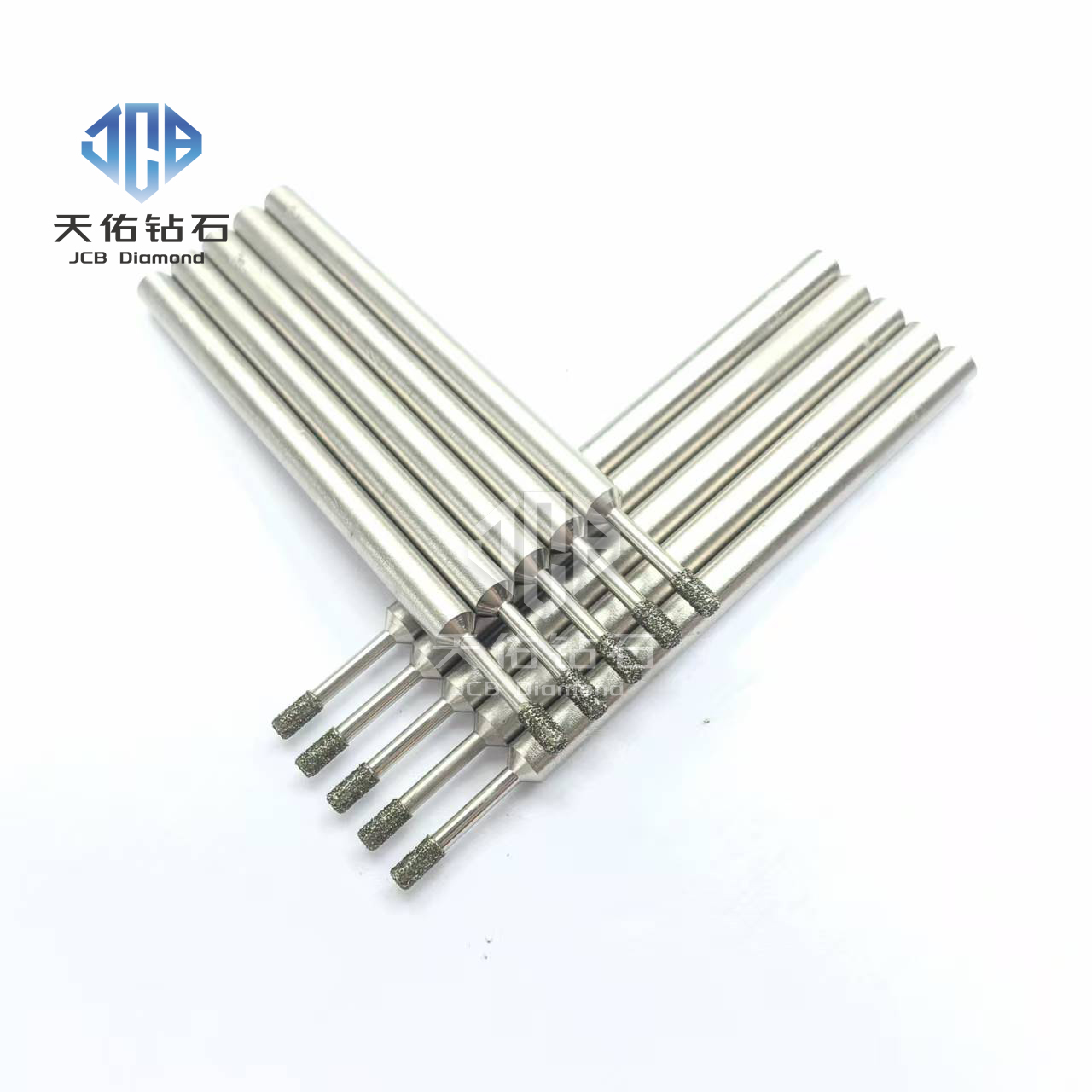

Product Name: Electroplated Diamond Grinding Bits
1. Detailed Product Description
Electroplated Diamond Grinding Bits are ultra-hard abrasive tools widely used for precision grinding, engraving, and shaping.
Structure and Material:
Shank:Manufactured from high-quality metal (typically high-strength alloy steel), offering excellent rigidity and secure clamping compatibility with various electric or pneumatic tools (e.g., rotary tools, pendant drills).
Working Layer (Head):High-hardness synthetic diamond micropowder is firmly embedded onto the metal substrate surface via a specialized electroplating process. The coarse, granular texture visible on the tip of the bits is the diamond particles.
Core Features and Advantages:
Exceptional Hardness and Wear Resistance:Diamond is the hardest known natural material, enabling these bits to effortlessly process various high-hardness materials and significantly outlast conventional grinding wheels or stones.
High Processing Precision:The bits feature well-defined shapes and a uniform diamond layer, making them ideal for detailed engraving, deburring, edge-breaking, and contour finishing, achieving high dimensional accuracy and surface finish.
Advantages of Electroplating:The electroplated layer is thin, preserving the original profile of the substrate. The high exposure of abrasive grains ensures sharp cutting and high efficiency. This process also allows for the production of complex and fine shapes.
Comprehensive Variety: sets are available with various shapes (e.g., cylindrical, spherical, inverted cone, flame-shaped) and sizes to meet diverse machining requirements.

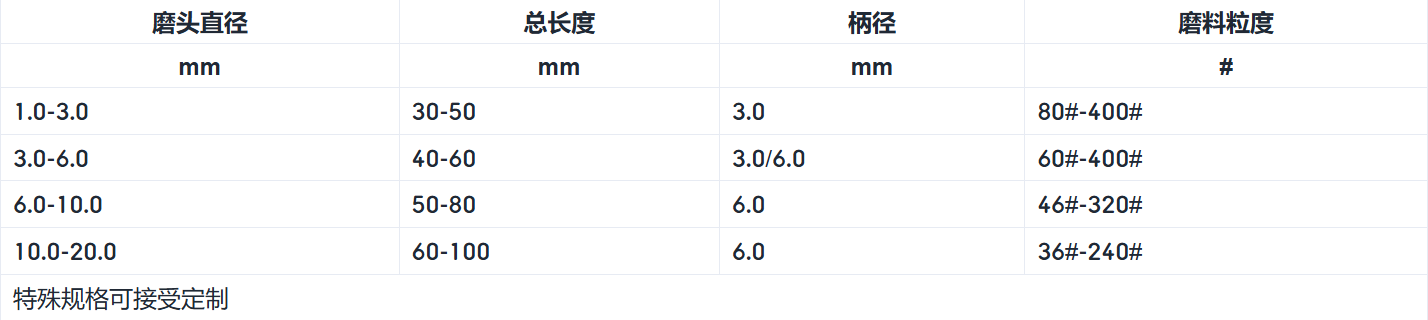

2. Key Technical Parameters (General Description)
Abrasive Type:Synthetic Diamond
Bond Type:Nickel Electroplated Layer
Grit Size Range:Typically available from coarse grits (e.g., 60/80 mesh for roughing) to fine grits (e.g.,200/400 mesh or finer for finishing and polishing). Different colors may sometimes indicate different grit sizes.
Shank Diameter (Compatible Size):Common specifications include Φ2.35mm (1/8 inch), Φ3mm, Φ6mm, etc., to fit different models of rotary tools.
