PCD cutting tools, with their advantages of high hardness, good stability and long life, have gradually replaced traditional alloy blades and become the "leader" in the current cutting tool industry. Coupled with the increasing technical requirements, the requirements of various industries for PCD cutting tool processing have changed
from the initial stability and durability to higher precision, higher requirements and higher efficiency. For this reason, Mo-Ao Te has launched double-end diamond grinding discs, striving to help you produce more products that satisfy your customers.
Advantages of blade double-end grinding
1. Double-end grinding has high efficiency and can complete the processing of two parallel end faces of the blade at one time, reducing the traditional grinding process while eliminating the auxiliary time between processes.
2. The workpiece removal allowance is large and the workpiece allowance is gradually removed during the grinding process. The processing allowance that can only be removed by other grinders and grinding methods in several steps can be removed at one time.
3. High processing accuracy: Double-end grinding uses a rotary or linear feed plate to feed the workpiece up and down, and the dimensional accuracy and geometric accuracy of the double-end faces of the blade processed are high.
4. High degree of batch automation: Double-end grinders are often used for the stable production of large batches of workpieces, with stable processing quality and good workpiece consistency. High flatness and parallelism can be obtained (about 2um-4um)

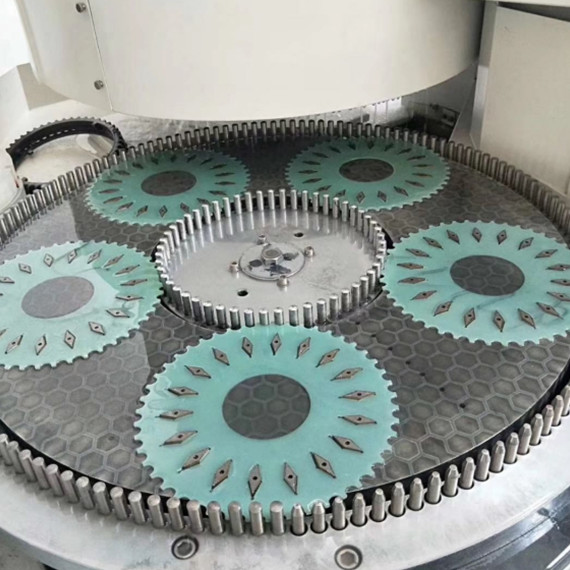

Diamond double-end grinding disc can process tool materials

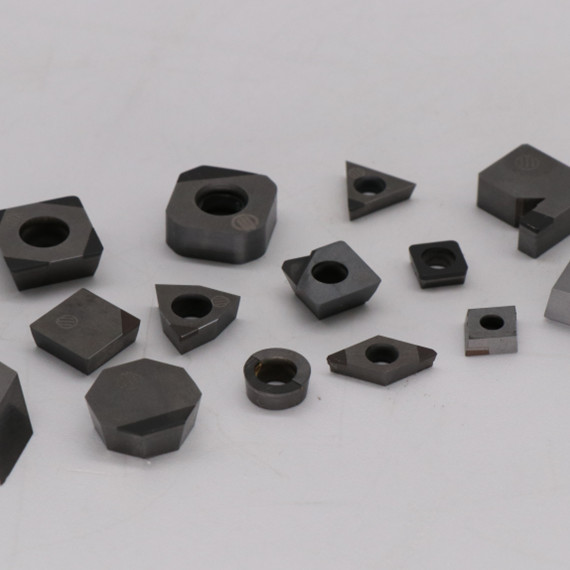

Carbide Cutting Tool
PCD Tools
PCBN Tools

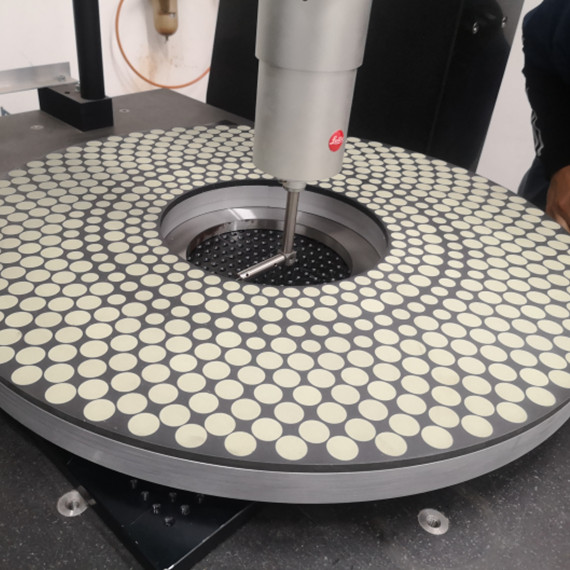

Henan JCB can provide diamond double-end grinding disc specifications
Grit size 80-1500#
Hardness 100HRB
Outer Diameter 150-1500mm
Aperture 30-500mm
Grinding disc accuracy, flatness, parallelism ≤0.02mm
Finished workpiece accuracy: roughness 0.1μm-1.2μm, flatness 0.001mm~0.004mm, parallelism ≤0.002mm, equal height ≤0.002mm
Henan JCB is committed to process research and development and innovation, adhering to the concept of "using grinding to create more value than grinding", continuously providing customers and the market with high-quality grinding wheels and grinding disc products, and providing batch and efficient grinding solutions for the PCD/PCBN tool industry to help customers achieve cost reduction and efficiency improvement.
