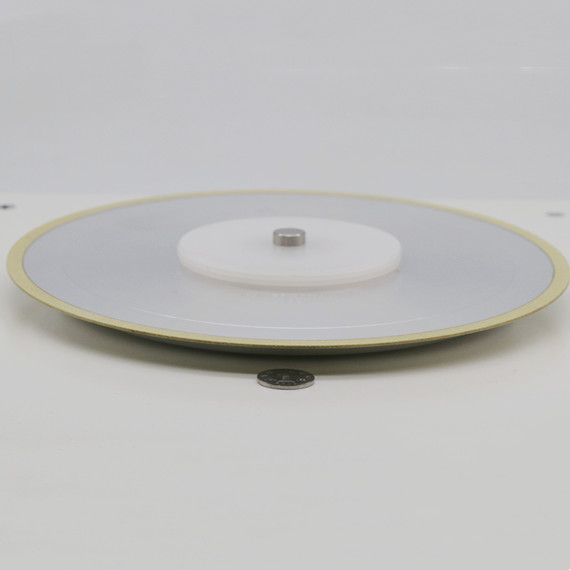

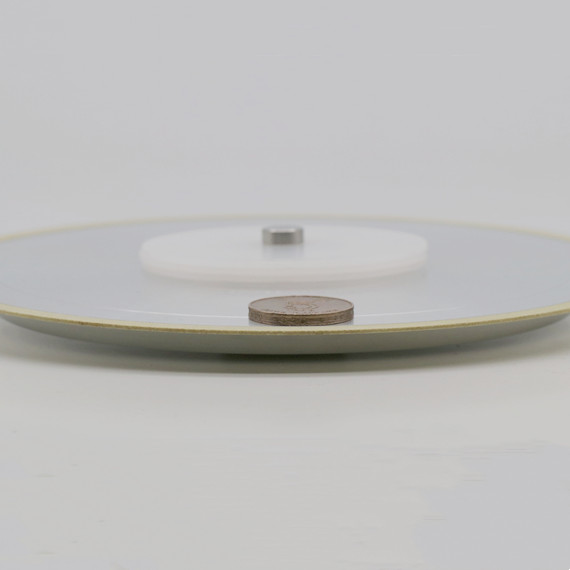

Vitrified diamond grinding wheel for dressing high precision rollers

Used for high-precision electroplated diamond/CBN grinding wheels, electroplated diamond rollers, etc.

Henan JCB provides customized ceramic smooth grinding wheels for dressing high-precision diamond rollers. Electroplated/sintered diamond rollers need to be repeatedly ground and tested on the grinding machine during the production process to maintain the corresponding size and accuracy. Ceramic diamond grinding wheels have the advantages of less wear, good shape accuracy, small linearity error of the profile generatrix, reduced grinding burns, reduced surface roughness, and conducive to extending the service life of the roller.

Application areas of ceramic diamond grinding wheels:

For grinding and dressing of high-precision electroplated diamond/CBN grinding wheels, electroplated diamond rollers, diamond sintered rollers, PCD/CBN/MCD tools, diamond grinding wheels, wear-resistant parts and various diamond tools.

Matching special grinding machines: WAIDA, WASINO, PROFILTEC, PETEWE, DOEBLI, etc.

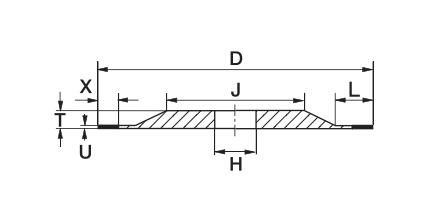

Specifications of Vitrified Diamond Grinding Wheel

Model	D(mm)	H(mm)	T(mm)	U(mm)	X(mm)	Grit
3A1	125 150 200	22 31.75	10	1 1.2 1.5 2	5 10	#200~
Other sizes can be customized according to drawings
