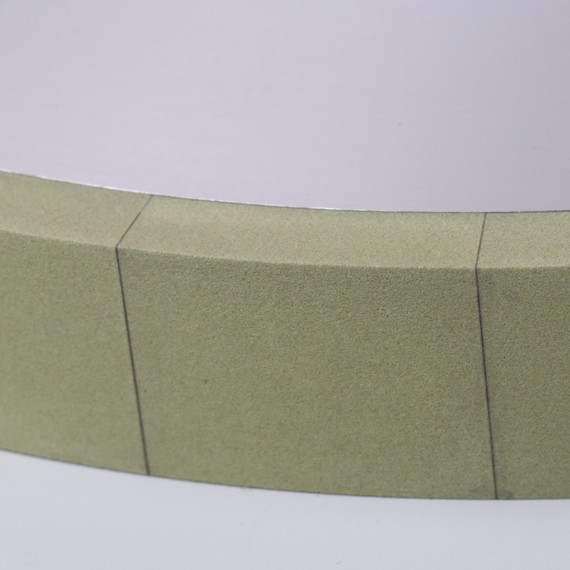

Vitrified parallel diamond grinding wheels are mainly used for PDC external cylindrical grinding.

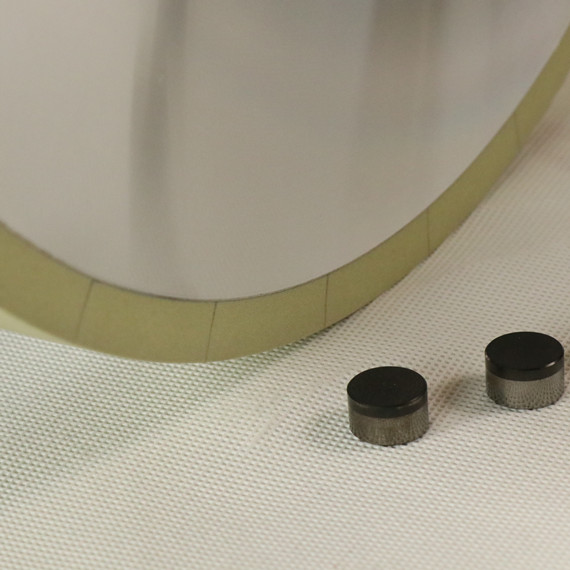

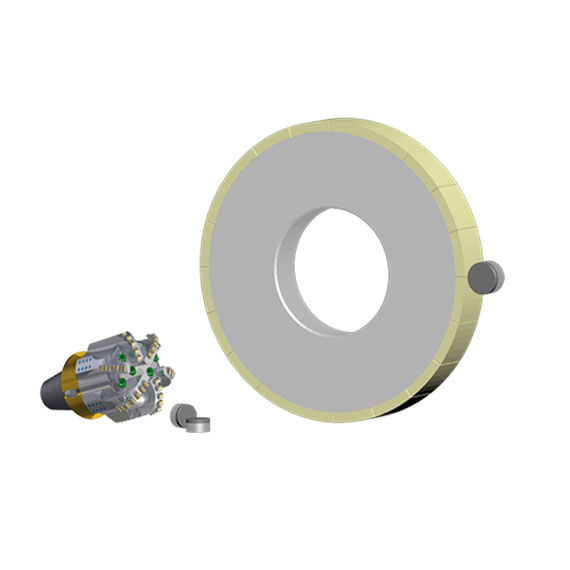

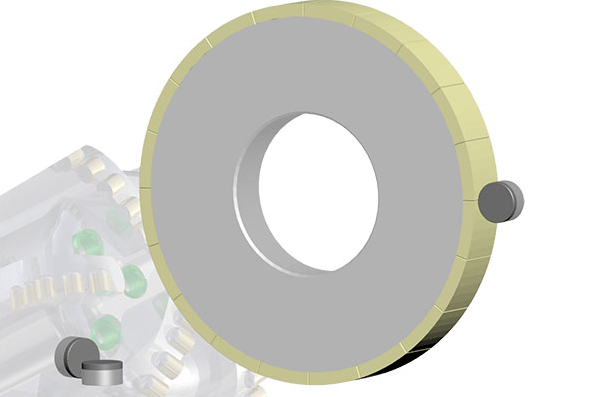

Vitrified diamond external cylindrical grinding wheels for rough grinding of polycrystalline diamond blank cylinders (PDC cutters). Compared with resin diamond grinding wheels, our grinding wheels reduce grinding costs by 35%, save 40% of grinding time per PDC, and improve the dimensional accuracy of PDC

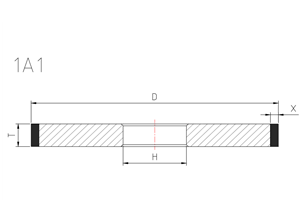

Model | D (mm) | T (mm) | H (mm) | X (mm) |
1A1 | 350 | 40 | 127 | 10 |
| 400 | 40 50 | 203 | 10 | |
400 | 40 50 | 305 | 10 |

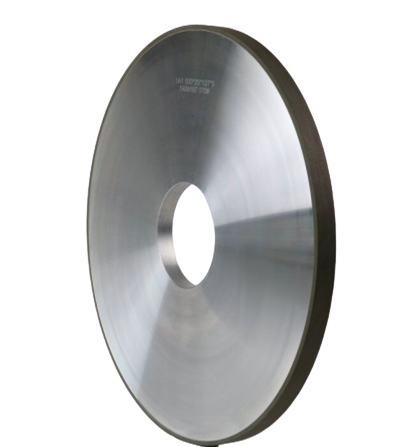

Resin diamond grinding wheel for PDC tool/drill external grinding
| Diameter (mm) | Diameter (inch) | H (mm) | T (mm) | X (mm) |
| 400 | 16 inch | 127 | 25, 50 | 10, 25 |
| 500 | 20 inch | 127, 203.2 | 25, 50 | 10, 25 |
| 600 | 24 inch | 254 | 25, 50 | 10, 16, 25 |
| 750 | 30 inch | 304.8 | 50 | 10 |
| 914.4 | 36 inch | 304.8 | 25, 50 | 10, 25 |
| 1100 | 43 inch | 304.8 | 50 | 10 |
| Other specifications can be customized according to customer requirements Email:[email protected] | ||||

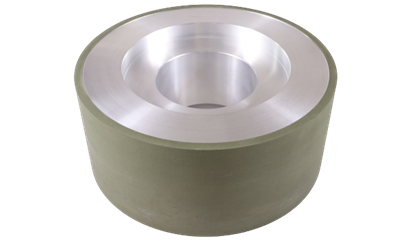

Centerless grinding wheel PDC for precision grinding
| model | D (mm) | T (mm) | H (mm) | X (mm) |
| 1A1 6A1 9A1 | 300 | 150 | 120 | 5, 10 |
| 350 | 125 | 127 | 5, 10 | |
| 400 | 150 | 203 | 5, 10 | |
| 455 | 205 | 228.6 | 5, 10 | |
| 500 | 150 | 305 | 5, 10 | |
| 650 | 380 | |||
Grinding wheel circular runout ≤ 0.02 mm Straightness ≤ 0.02 mm | ||||
