PCD reamer grinding - external cylindrical grinding diamond wheel

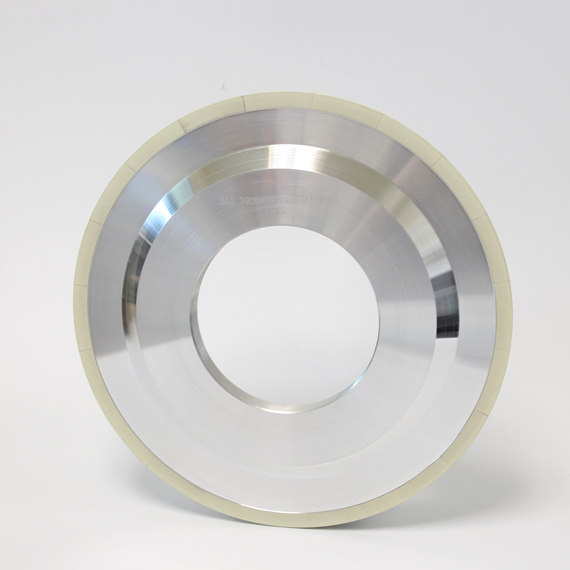

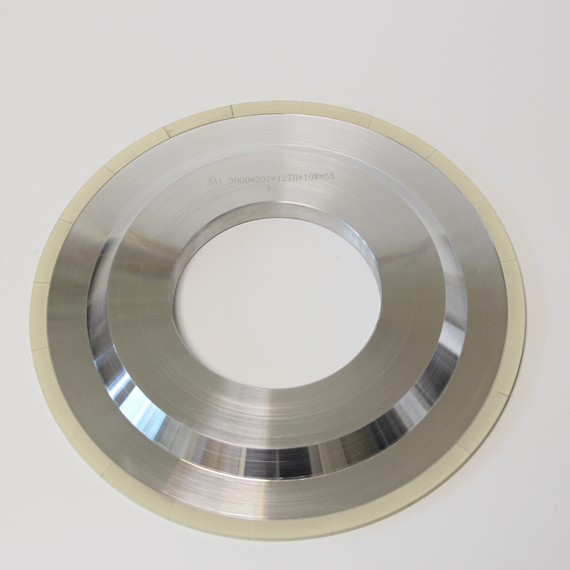

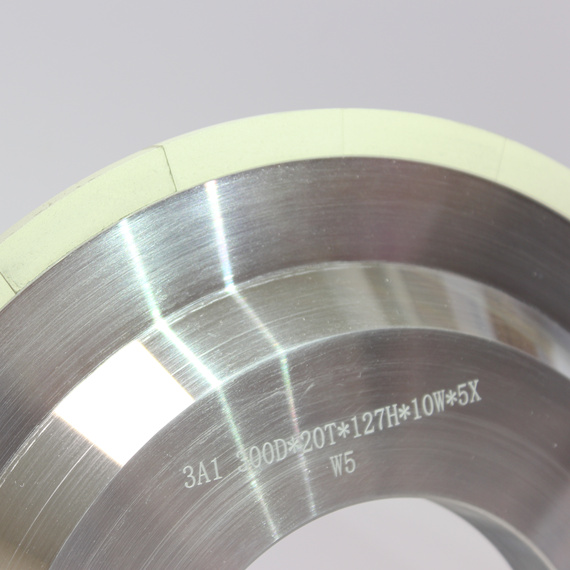

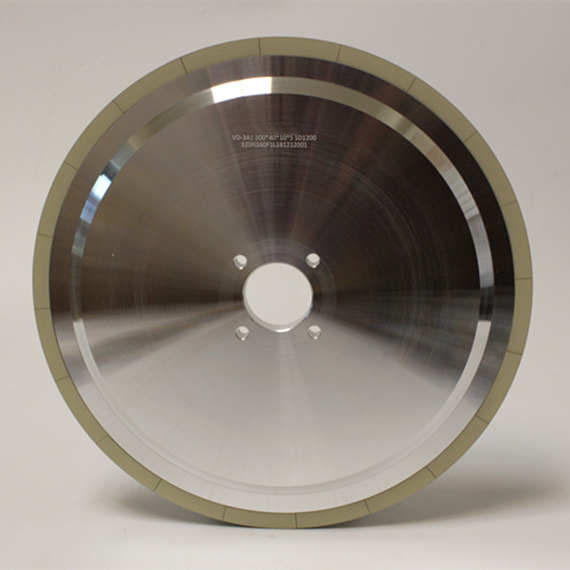

Cylindrical grinding vitrified diamond grinding wheels are used for grinding PCD tools on large cylindrical grinders. In the automotive industry, PCD tools include PCD profile milling cutters, PCD reamers and PCD milling cutters.

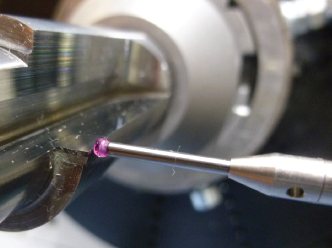

Application examples of PCD cutting edge precision measurement
The precision machining process of the grinding machine often requires very precise dimensional tolerances, geometric tolerances and extremely high surface quality. The PCD tool edge is repeatedly measured, ground, measured, etc. The diameter tolerance can reach +/-1.5 microns, which is very good.
External cylindrical grinding diamond wheel specifications

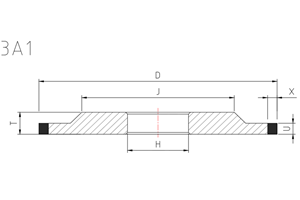

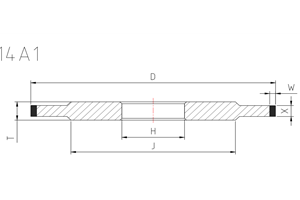

| Model | Ddiameter (mm) | T thickness (mm) | H Inner hole (mm) | X Ring width (mm) | U Ring thickness (mm) |
| 3A1 & 14A1 | 300 | 20 | 127 | 10 | 10 |
| 350 | 20 | 127 | 10 | 6 |
| 400 | 35 | 152.4 | 10 | 7 |
| Other specifications and models can be customized according to customer needs。 |
