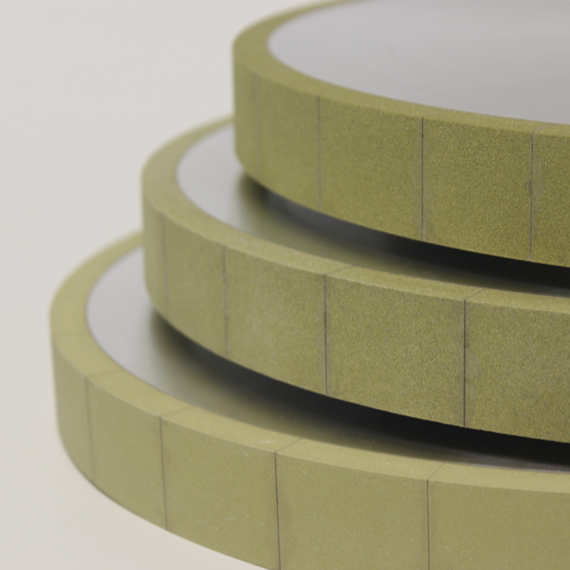

Grinding precision ceramics - using ceramic cylindrical grinding wheels

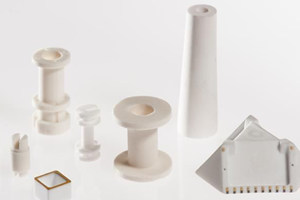

Cylindrical grinding diamond wheels are widely used in engineering applications for grinding various ceramics such as alumina ceramics, zirconia ceramics, and silicon carbide ceramics.
How to choose the right particle size and binder
* Rough grinding generally uses D126, D91 (resin bond and ceramic bond)
* Semi-rough grinding uses D76, D64, D54, D46 (resin bond, glass bond)
* Semi-finishing uses D25, D20 (resin bond and glass bond)
* Fine grinding uses D15 (resin bond)
* Super-finishing uses D7, D1 (resin bond)

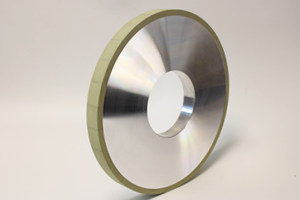

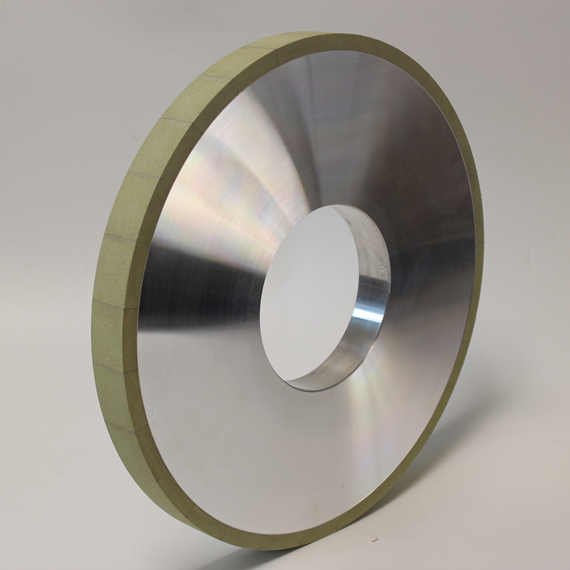

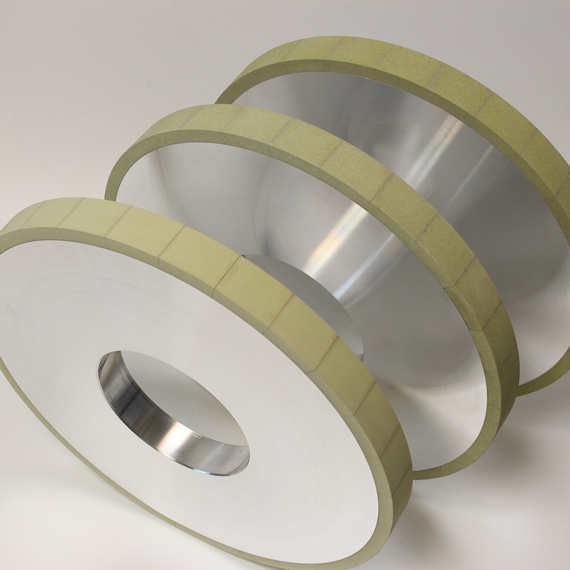

External cylindrical grinding diamond wheel specifications
| Model | D (mm) | T (mm) | H (mm) | X (mm) |
1A1 | 350 | 30 | 127 | 10 |
| 350 | 40 | 127 | 10 |
| 350 | 50 | 127 | 10 |
| 400 | 30 | 203 | 10 |
| 400 | 40 | 203 | 10 |
| 400 | 50 | 203 | 10 |
| 500 | 30,40,50 | 305 | 5,10 |
| 600 | 30.40,50 | 305 | 10 |
| Other sizes can be customized according to customer requirements |
