Description of CBN grinding wheel for hob grinding

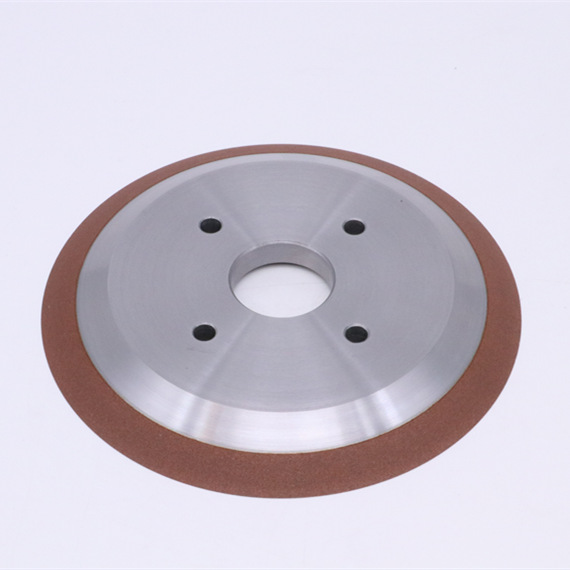

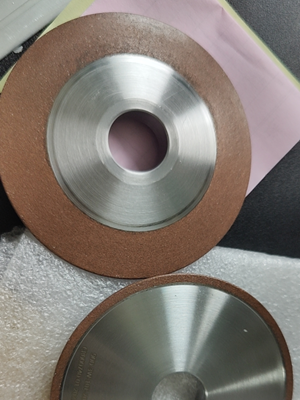

JCB produces single bevel CBN grinding wheels for hob grinding. The grinding wheel is end-face ground, and the outer circle is very thin, which can be ground to the bottom of the edge. CBN grinding wheels are used for the shaping and grinding of high-speed steel (HSS) gear hobs and thread cutters (hardness above HRC60).

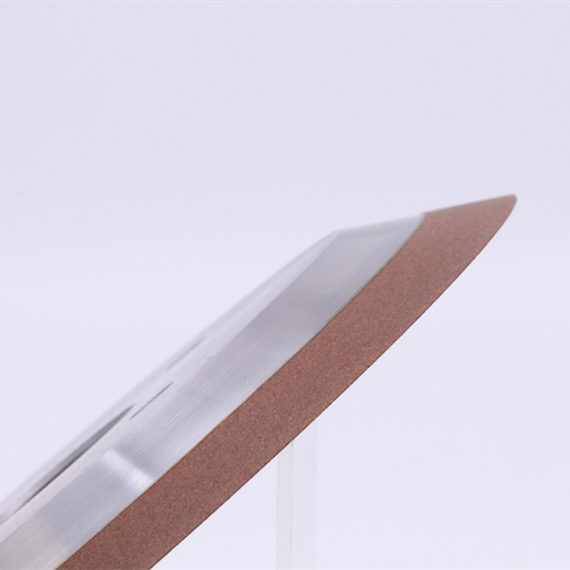

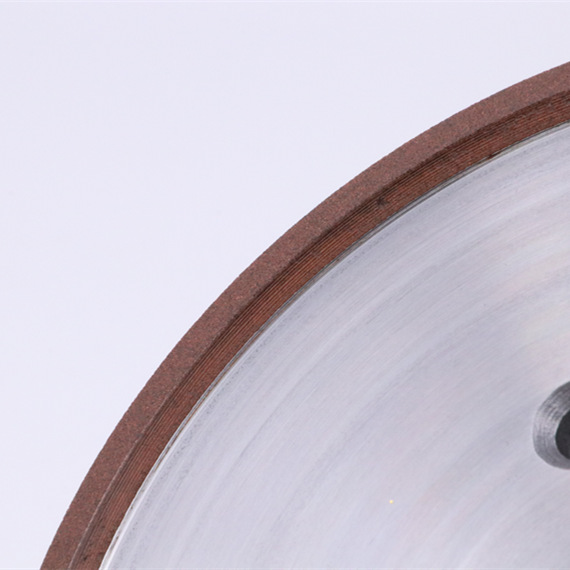

Advantages of CBN grinding wheel for gear hob - The grinding wheel adopts end grinding, the outer circle is very thin, and it can grind to the bottom of the edge
- Good wear resistance and low loss
- Dry grinding and wet grinding - High precision, reduced grinding force

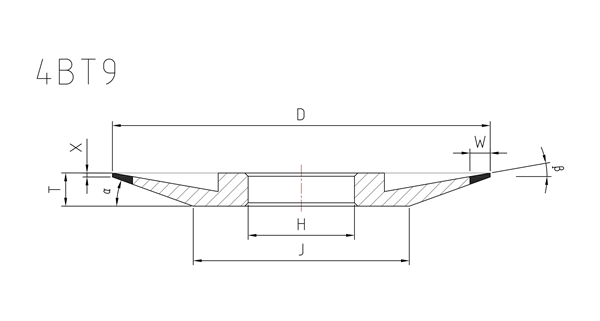

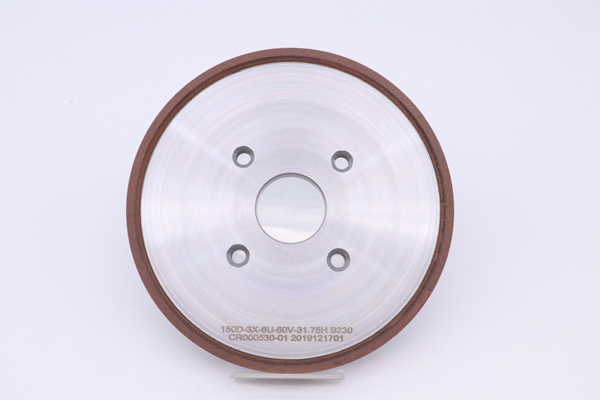

| Specification | diameter（mm） | Ring width（mm） | Inner hole（mm） | Abrasive layer thickness（mm） | thickness（mm） | angle（mm） |
| 100 | 10 | 20 | 1 | 10 | 5 | |
| 4BT9 | 150 | 10 | 50.8 | 3 | 10 | 8 |
| 4V4 | 100 | 6 | 20 | 1 | 10 | 10 |
Customizable to your needs

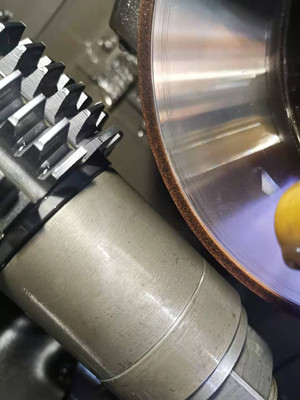

Case 1

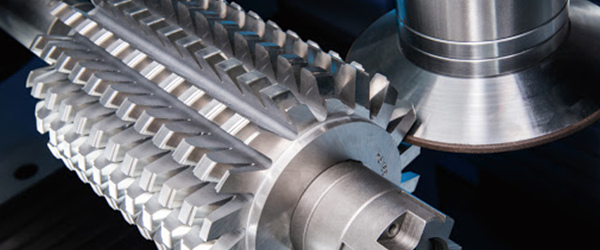

Processing: hob grinding
Grinding wheel size: resin CBN grinding wheel D200xT18.75xID76.2x4x3
Grinding machine: Mitsubishi
Cooling: oil cooling
Speed: 1000 1500rpm
Roller material: high-speed steel
Coating material: S390 powder metallurgy
Hardness: 72HRC
Cutting amount: 0.1mm/time
Surface quality requirement: Ra0.5
Grinding time: 20 minutes/piece
