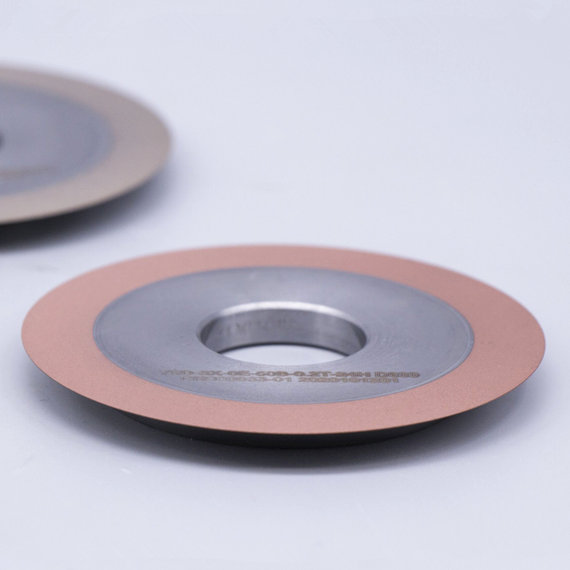

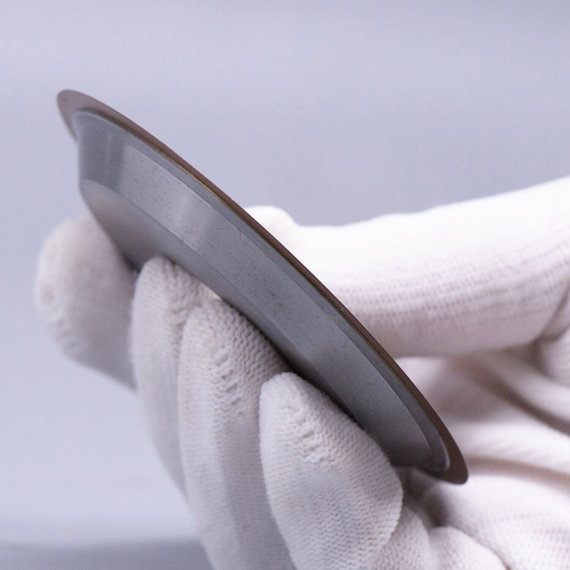

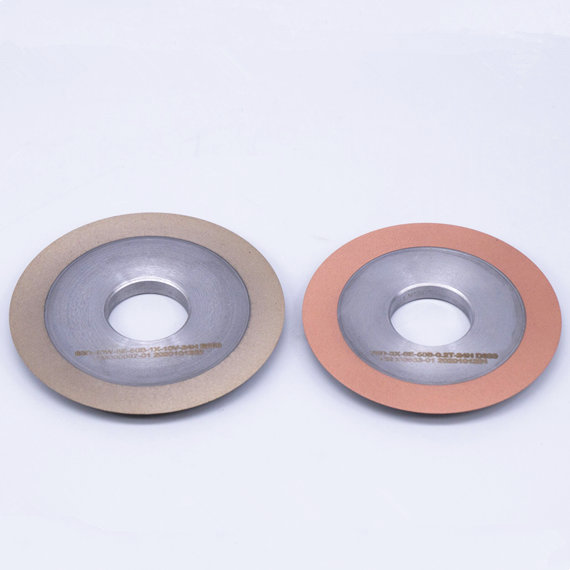

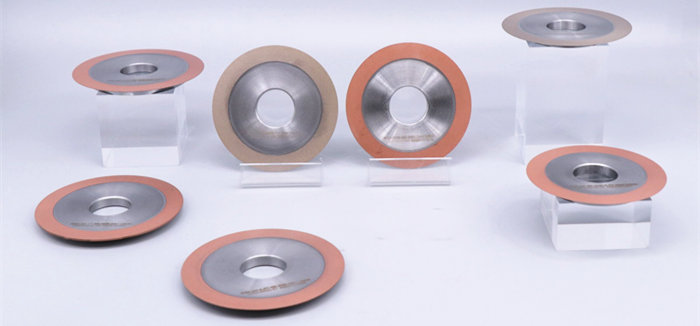

Optical Curve Grinding Wheel

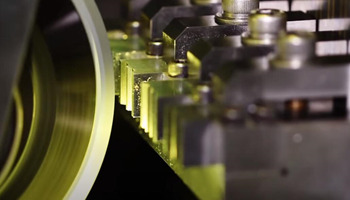

Optical profile grinding wheels are used for precision grinding of molds and dies, punches, optical grinding and profile grinding of cutting tools (such as end mills and reamers) and precision instruments.

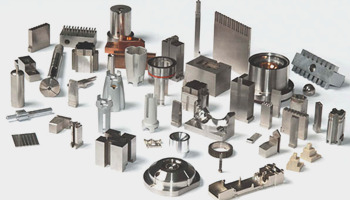

Workpiece materials
►Diamond: ultra-hard and brittle cutting materials (such as tungsten carbide, cermet, ceramic, etc.)
►CBN: heat-treated steel (such as SKH, SKD and SKS, etc.)
Specifications of Smooth Grinding Wheel
| Model | D | U | X | L | T | H | Grit
|

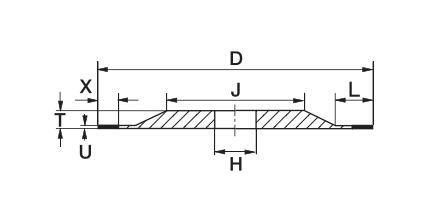

| 3A1 Diamond & CBN Grinding Wheels | 30-150-180 | 0.5-2.0-5 | 3 | 5-10 | 3, 5, 7, 10 | 4.77 8 12 22.23 24 31.75 32 | 140- 1000 |
| Model | D | W | θ | R | T | H | Grit |

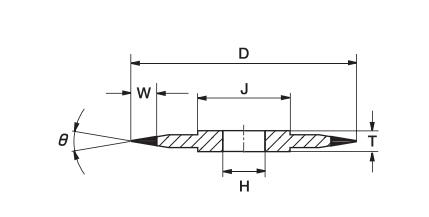

| 14K1Diamond & CBN Grinding Wheels | 30 | 3 | 5°-15°-20° | 0.03-0.2 | 3 | 4.77 8 12 22.23 24 31.75 32 | 140- 1000 |
| 65 | 5 | 5 |
| 75 |
| 80 |
| 100 | 7 |
| 125 |
| 150 |
| 180 |
| Model | D | W | v | R | T | H | Grit | X |

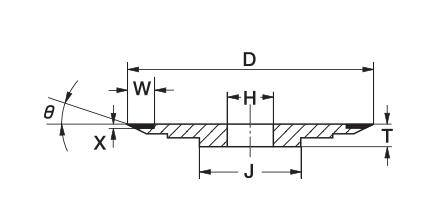

| 1B9 Diamond & CBN Grinding Wheels | 30 | 3 | 5°-15°-20° | 0.03-0.2 | 3 | 4.77 8 12 22.23 24 31.75 32 | 140- 1000 | 1 |
| 65 | 5 | 5 |
| 75 |
| 80 |
| 100 | 7 10 |
| 125 |
| 150 |
| 180 |
| Other specifications and sizes are welcome to be customized |
