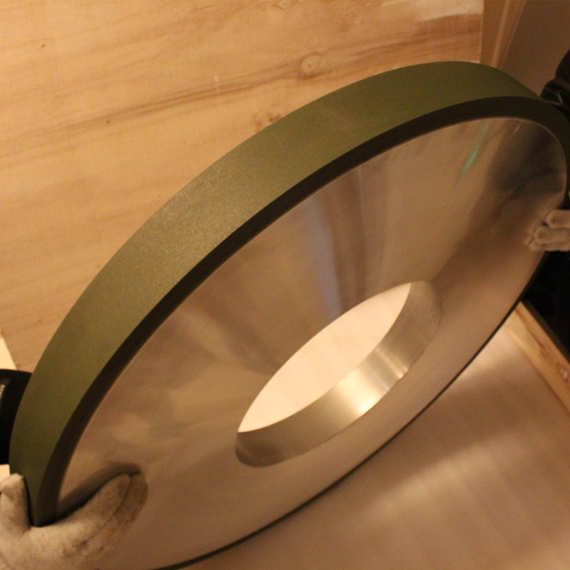

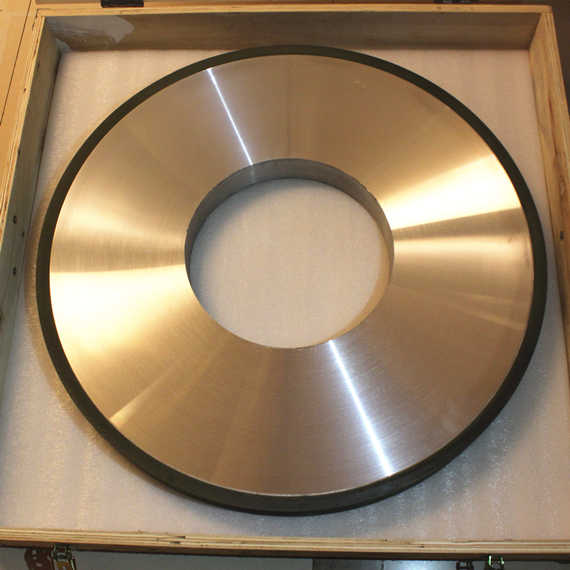

Resin external cylindrical grinding diamond grinding wheels are used for grinding and polishing difficult-to-grind materials such as thermal spray coatings (tungsten carbide, chromium carbide, chromium oxide), ceramics, carbides, chilled iron composites, etc.

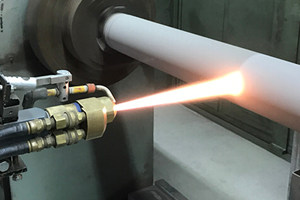

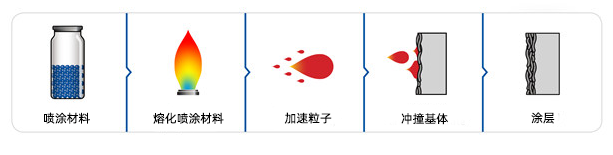

Thermal spraying technology includes flame wire spraying, arc spraying, plasma spraying, HVOF or HVAF, detonation spraying, cold spraying, etc. Thermal spraying technology is widely used in aerospace, machinery, metallurgy, chemical industry, petroleum, coal, railway, textile and other sectors.
| Diameter (mm) | Diameter (inch) | H (mm) | T (mm) | X (mm) |
| 25 | 1 inch | 6 | 12 | 6 |
| 30 | - | 12 | 6 | - |
| 40 | - | 12 | 6 | - |
| 50 | 2 inch | 6 | 12 | 6 |
| 100 | 4 inch | 12 | 12 | 10 |
| 150 | 6 inch | 12 | 25 | 10 |
| 300 | 12 inch | - | 25 | 10 |
| 400 | 16 inch | 127 | 25, 50 | 10, 25 |
| 500 | 20 inch | 127, 203.2 | 25, 50 | 10, 25 |
| 600 | 24 inch | 254 | 25, 50 | 10, 16, 25 |
| 750 | 30 inch | 304.8 | 50 | 10 |
| 914.4 | 36 inch | 304.8 | 25, 50 | 10, 25 |
| 1100 | 43 inch | 304.8 | 50 | 10 |
| Other specifications can be customized according to customer requirements | ||||

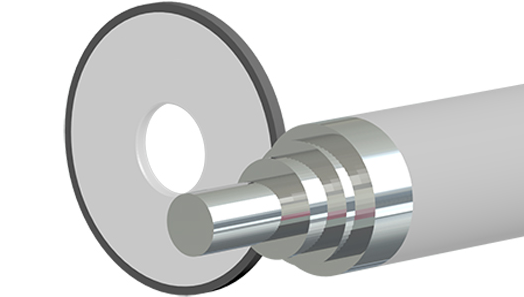

Application of Diamond Grinding Wheel for Tungsten Carbide Coated Rollers
| Examples: | External grinding |
| Workpiece: | Roll Diameter 120 mm;1000 mm, Length 1.5mm;10 mm |
| Material: | HVOF Spraying tungsten carbide or ceramic coating on steel body |
| Trimming： | White corundum grinding wheel240# |
| Machine: | External cylindrical grinding machine |
| Coolant： | Emulsion, Pressure: >/= 3 Bar |
| Diamond grinding wheel specifications: | 1A1 D750*T50*H304.8*X10 mm D126 N100 Aluminum wheel body |
| Parameter: | Wheel speed: 18m/s; 24 m/s Depth of cut：0.01mm; 0.03 mm Feed: 300mm/min; 800 mm/min Roll speed: 15m/s; 20 m/s |
