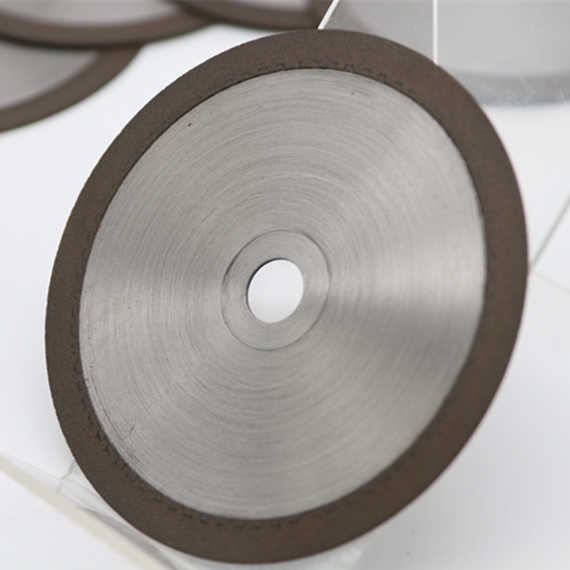

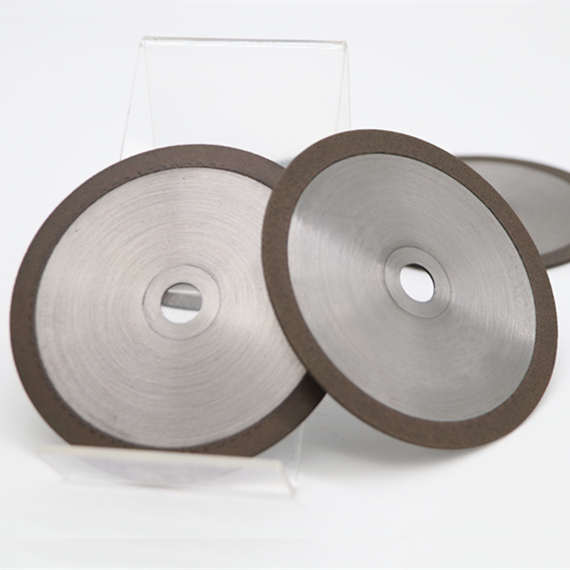

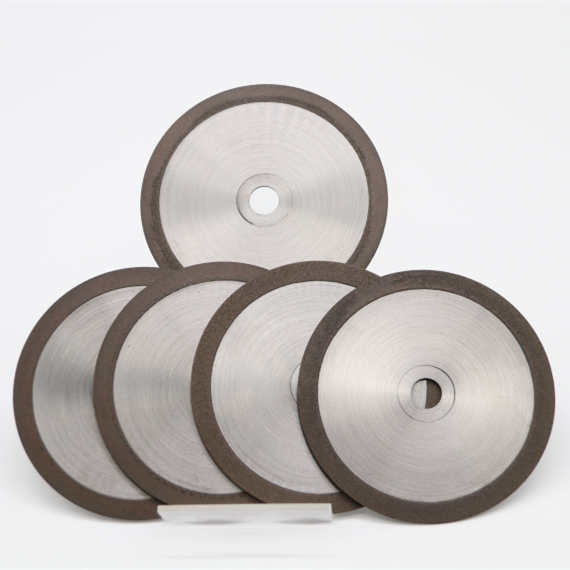

Resin cutting discs can self-sharpen and cut sharply. The use of elastic resin combined with steel plate increases the size of high-precision cutting wheels and improves processing quality
Application：
Diamond cutting blades are suitable for cutting tungsten carbide, alloys, quartz, ceramics, glass, carbon fiber composites, fiberglass, etc.
CBN grinding wheels are used for cutting high-speed steel, hardened steel and other ferrous materials.

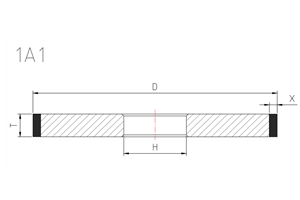

Cutting disc is 1A1 type
The working layer thickness is the same as the steel plate. Mainly used for precision grooving and cutting.

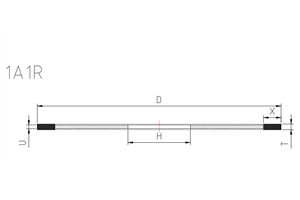

1A1R cutting disc
The working layer thickness is higher than that of steel plates. They have advantages in chip removal and cooling.
Mainly used for deep cutting and grooving of parts.
Specifications of Diamond Cutting Blades for Carbide Cutting
.png)
Model | Diameter(mm) | Thickness(mm) | H(mm) |
1A1 | 20.0≤D≤152.4 | 0.08≤D≤2.0 | 4.0≤D≤114.3 |
1A1R | 30.0≤D≤400.0 | 0.2≤D≤2.0 | 4.0≤D≤127.0 |
