Henan JCB Superhard Materials Co., Ltd.'s diamond and CBN chain saw blade grinding wheels have a good surface finish and long service life. Superabrasive grinding wheels are suitable for chain saw grinding in the woodworking industry.
Machinery for chainsaw grinding wheels : Timberline, Oregon, Granberg Bar-Mount, Timber Tuff, Blue Max, Stihl, Sportsman Earth, Husqvarna 653000035, Electric Grinder and others chainsaw sharpener.png)

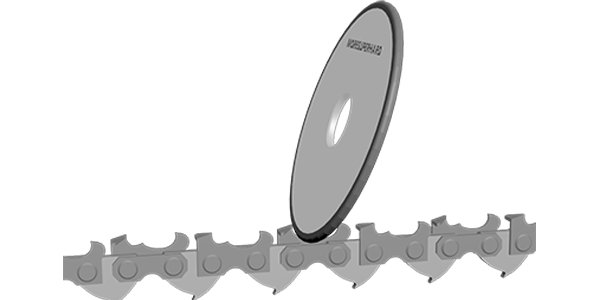

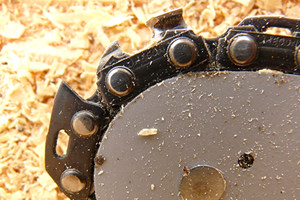

Application of chain saw grinding wheel
* Carbide chain tip grinding diamond grinding wheel
* CBN steel chain grinding wheel

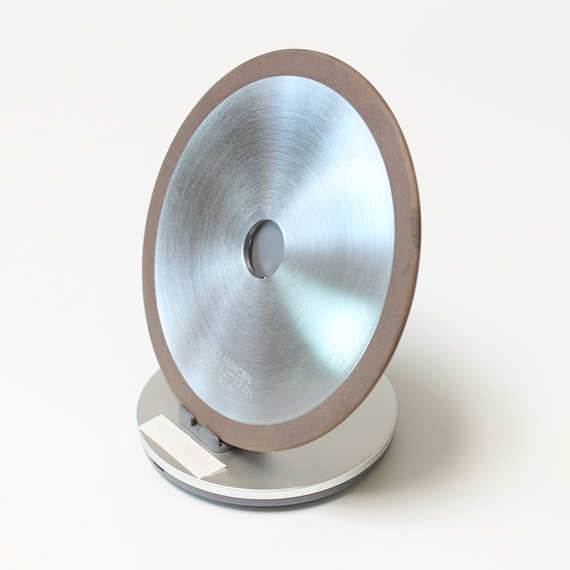

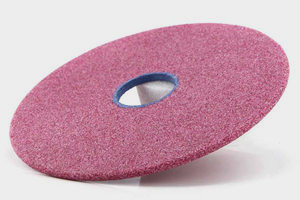

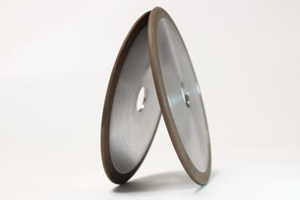

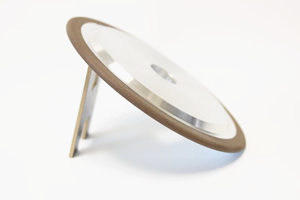

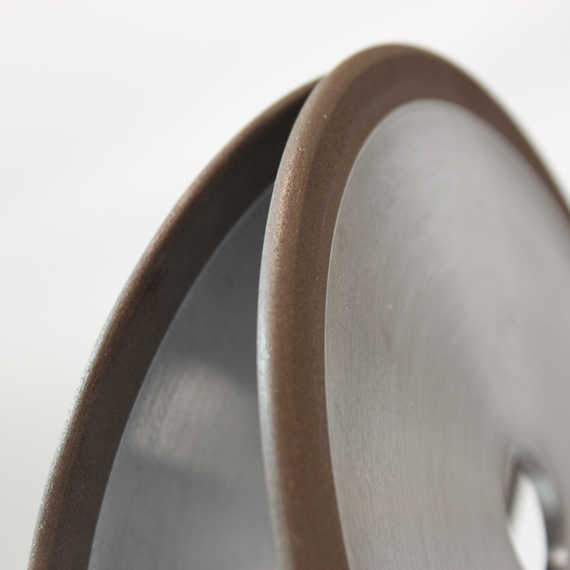

We can supply diamond and cubic boron nitride chain saw grinding wheels and pink aluminum oxide grinding wheels
Why use diamond and cubic boron nitride chainsaw wheels instead of pink grinding wheels
* High roughness
* Chain saws that should not burn or scratch the tooth profile
* Environmentally friendly, not too much dust

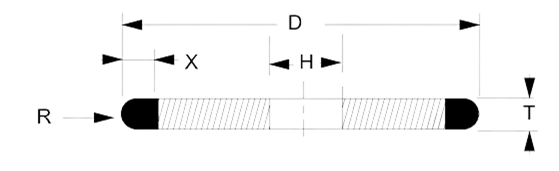

| Diameter (inch/mm) | Inner Hole (inch/mm) | Thickness (inc/mm) | R | Pitch saw chain |

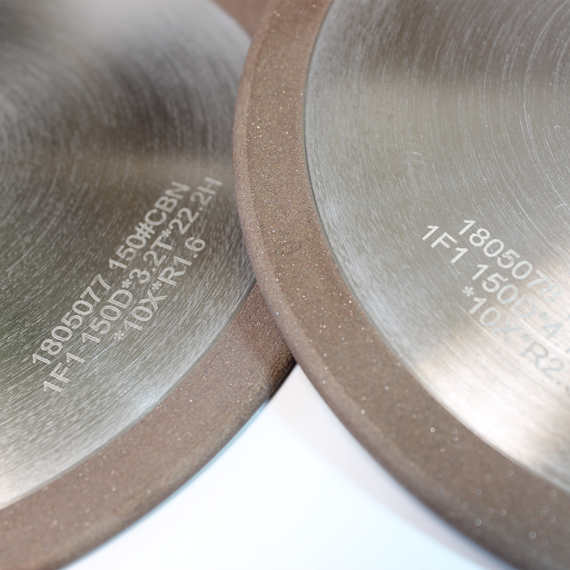

1F1 | 4-1/8" , 100mm | 7/8", 22mm | 1/8", 3.2mm | 1.6 | 0.325 |
4-1/8" , 100mm | 7/8", 22mm | 4/25", 4.0mm | 2 | 0.325 | |
4-1/8" , 100mm | 7/8", 22mm | 4.7mm | 2.35 | 0.404 | |
3F1 | 6”, 150mm | 7/8", 22mm | 4.5mm | 2.25 | 0.404 |
| Special sizes can be produced depending on the saw chain spacing. | |||||
