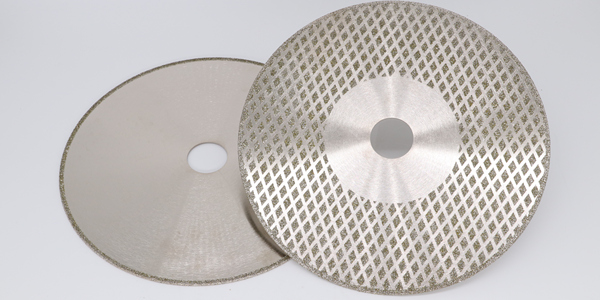

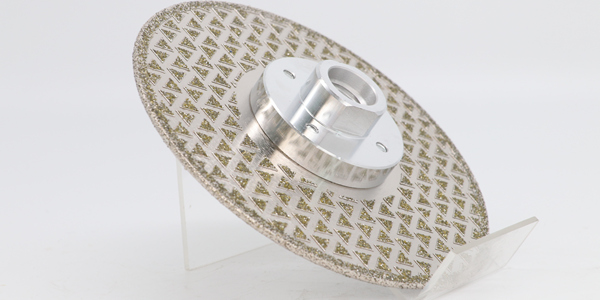

Applied to electroplated diamond cutting wheels and cutting discs
Cutting and grinding marble, granite, thermosetting plastics, fiberglass, pre-sintered and pre-burned (green) materials, fiberglass, electronic carbon, graphite, soft ferrite, PVC, PC boards, etc.

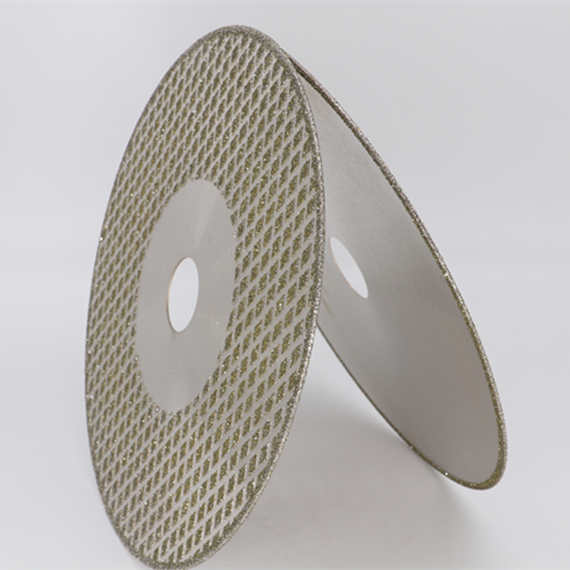

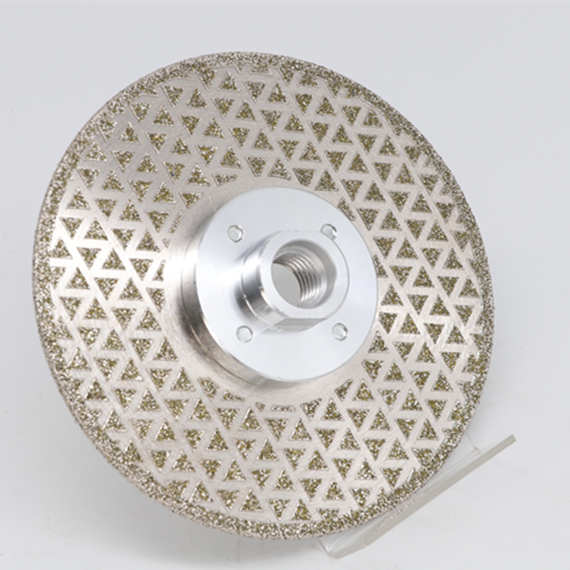

More super-hard electroplated diamond saw blades are usually installed on angle grinders, circular saws and hand-held saws for cutting granite or marble, etc.

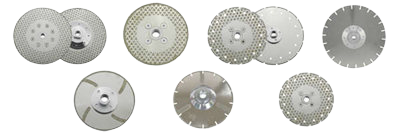

Advantages of Electroplated Diamond Cutting Discs
* Cuts better than sintered small diamond saw blades without causing broken edges
* Very sharp cutting performance and minimal heat generation

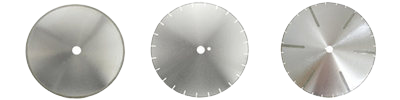

* Continuous rim cutting discs provide smoother cuts on fiberglass, plastic, tile

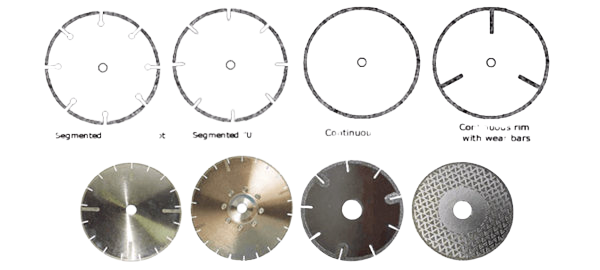

* Segmented edge cutting discs are better for cutting marble, granite and abrasive materials
* "Keyhole" and "U" grooves are common groove types for segmented rims
| Outer Diameter | Arbor hole (mm) | Thickness of Steel core | Rim | |
12" | 300 mm | 25.4 30 50 | 1.8mm 2mm | Continuous Segment |
14" | 350 mm | 25.4 30 50 | 1.8mm 2mm | Continuous Segment |
16" | 400 mm | 25.4 30 50 | 1.8mm 2mm | Continuous Segment |
18" | 450 mm | 25.4 30 50 | 1.8mm 3mm | Continuous Segment |
20" | 500 mm | 25.4 30 50 | 3.0mm | Continuous Segment |
| Outer Diameter | Arbor hole (mm) | Thickness of steel core | Rim | |
4" | 100 mm | 22.23 | 1.4mm | Continuous Segment |
4.5" | 115 mm | 22.23 | 1.4mm | Continuous Segment |
5" | 125 mm | 22.23 | 1.4mm | Continuous Segment |
6" | 150 mm | 22.23 | 1.4mm | Continuous Segment |
| 7" | 180mm | 22.23 | 1.6mm | Continuous Segment |
9" | 230 mm | 22.23 | 1.6mm | Continuous Segment |
| Other sizes and models of diamond cutting saw blades can be made according to customer requirements。 Email: [email protected] | ||||
