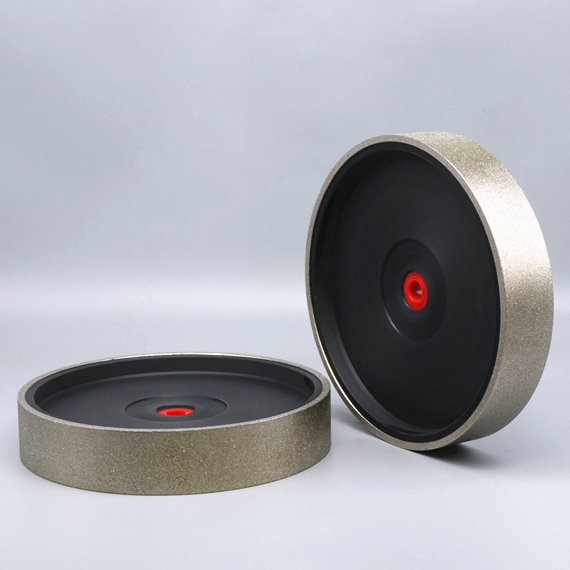

Applications of CBN Bench Grinder Wheel: CBN (cubic boron nitride) grinding wheels are used for sharpening woodturning tools (high speed steel HSS).The cbn grinding wheels are installed on bench grinder
* Note: the small MOQ (2 pieces) and fast delivery time (5- 12 days). There will be a big discount for large orders
| Diameter (inch) | Arbor Hole (inch) | Thickness(inch) | Grit | Radius Edge |
| 6 inch | 1 / 2 inch | 1 inch | 80#, 100#, 180#, 220#, 240#, 300#, 350#, 400#, 600#, 800#, 1200#, 1600# etc. | 1 / 4 inch |
| 6 inch | 1 / 2 inch | 1.5 inch | ||
| 6 inch | 5 / 8 inch | 1.5 inch | ||
| 8 inch | 5 / 8 inch | 1 inch | ||
| 8 inch | 5 / 8 inch | 1.5 inch | ||
| 8 inch | 1-1 / 4 inch | 1 inch | ||
| 8 inch | 1-1 / 4 inch | 1.5 inch |
Body Type and introduction of CBN grinding wheel
Body Type | Introduction |

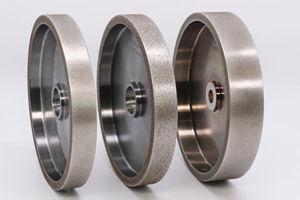

Steel Body
| 1. Steel body has the best rigidity. 2. Steel has a higher melting point than aluminum and is used for dry grinding. 3. The weight is the heaviest of the three. |
Aluminum Body
| 1. The weigh lighter than steel body. 2. Aluminum has a low melting point, so need to be grinding with water 3. Aluminum suitable for polishing. |
Plastic Body
| 1. The weight is the lightest of the three. And the freight is relatively low. 2.The rotational speed should be faster than the steel body when use. 3. Plastic body has the advantages of light weight and low price. |
