Diamond blades are available in continuous and notch edges. For processing of electroplated diamond band saw, the heating temperature of diamond is less than 100°C, so the damage to diamond is small, and then the electroplated diamond band saw can also have a good life time for a long time.
Application of Diamond Band Saw Blade
Cutting of superhard and brittle materials, such as stone, solar monocrystalline silicon, polycrystalline silicon, semiconductors and sapphire, ruby in the LED field, quartz glass, silicon ingots, sapphire ingots, etc.
| Length(mm) | Width(mm) | Thickness(mm) |
| 3230 | 40 | 0.7 |
| 3440 | 40 | 0.7 |
| 3530 | 40 | 0.7 |
| 3700 | 80 | 0.6 ，0.7 |
| 4320 | 60 | 0.5， 0.6， 0.7 |
| 5400 | 60 | 0.5, 0.6 ,0.7 |
| 6095 | 40 | 0.7 |
| Other sizes can be customized on demand | ||
Band saw blade shape

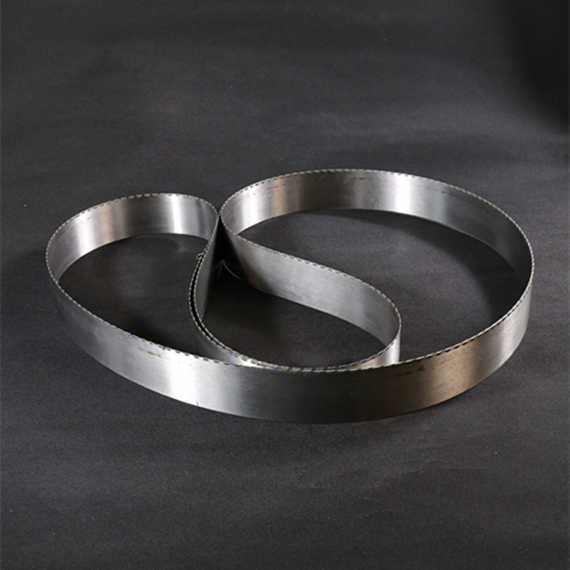

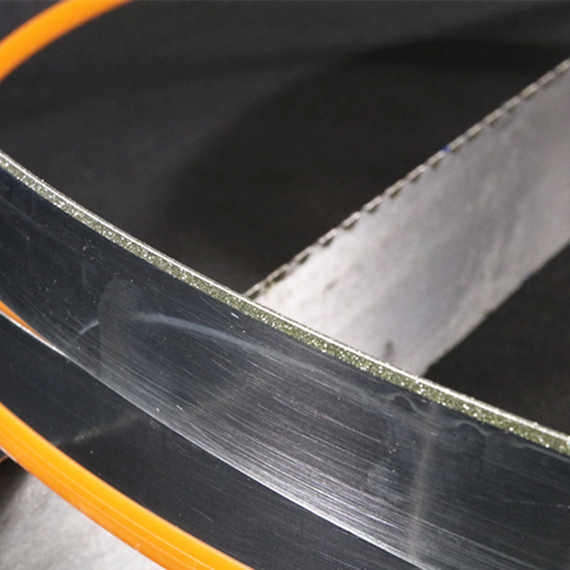

Continuous *Continuous edge design reduces saw marks on the material *Suitable for dry cutting of hard materials such as glass, ceramics, carbon materials, etc. | |

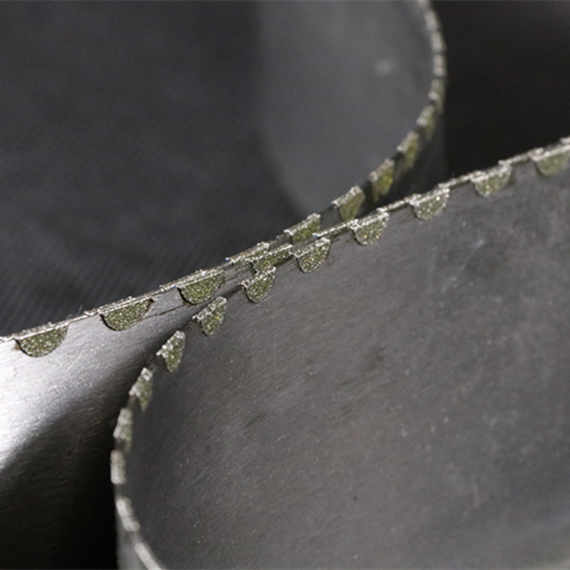

Intermittent type (half-moon type) * Cutting hard and brittle materials * Superior tool life and cutting ability in silicon machining * Allows for greater flexibility in customizing blade edge width and spacing | |
Incision type *Wide width band saw blades are possible *Cutting difficult-to-cut materials *Saw tooth design reduces load and facilitates chip discharge |
Continuous Diamond Band Saw Application Case
* 6.4m length continuous diamond band saw has been sent to Indian customers
| Product | Continuous diamond band saw |
| Size | 6400mmx41mmx1.2mm |
| Application Artifacts | Cutting graphite material |
