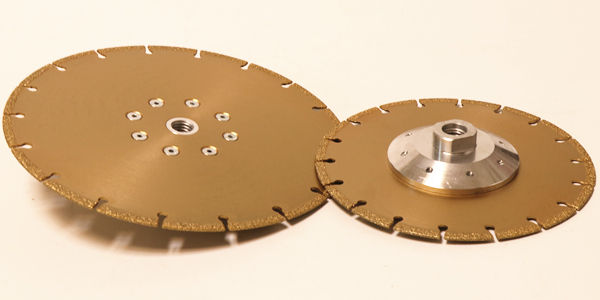

Vacuum brazed saw blades are available in continuous and segmented types. Used for cutting marble, cast iron, tiles, reinforced concrete and other hard composite materials, metal processing, fiberglass, PVC pipes, etc.
Advantages of vacuum brazed diamond wheels
Single layer of fully exposed diamond clad with nickel under high temperature and sharp cutting
Small cutting gap and less chips
40 times longer life than resin grinding discs. 100% higher cutting efficiency for FRP plates
Higher quality than sintered or laser welded diamond wheels. 35% higher cutting efficiency for marble plates
No pollution, low noise, no need for dressing
| model | D (mm) | H (mm) | T (mm) |
| Vacuum brazed diamond grinding wheel | 100 | 22.23 | 1.2 |
| 115 | 22.23 | 1.2 | |
| 125 | 22.23 | 1.2 | |
| 150 | 22.23 25.4 | 1.2 2.4 | |
| 180 | 22.23 | 1.6 | |
| 230 | 22.23 | 1.8 | |
| 350 | 25.40 32 | 2.0 | |
| 400 | 25.40 32 | 2.2 2.6 | |
Particle size: 25/30, 30/35, 35/40 for coarse grinding, 50/60 for fine grinding. Other sizes and grit sizes can be customized according to customer requirements. | |||
