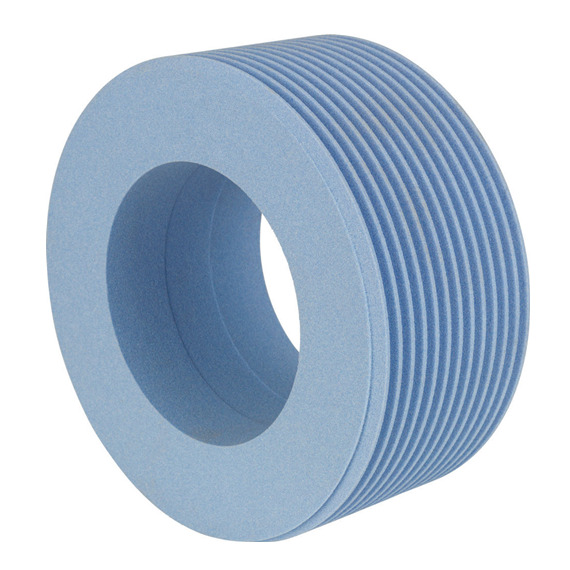

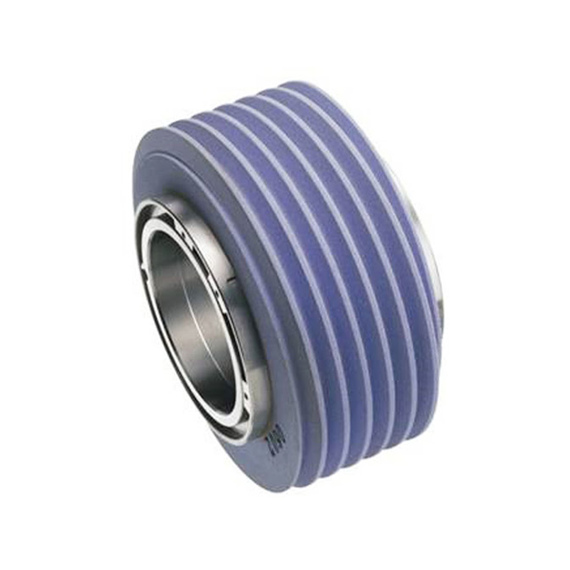

Worm Grinding Wheel

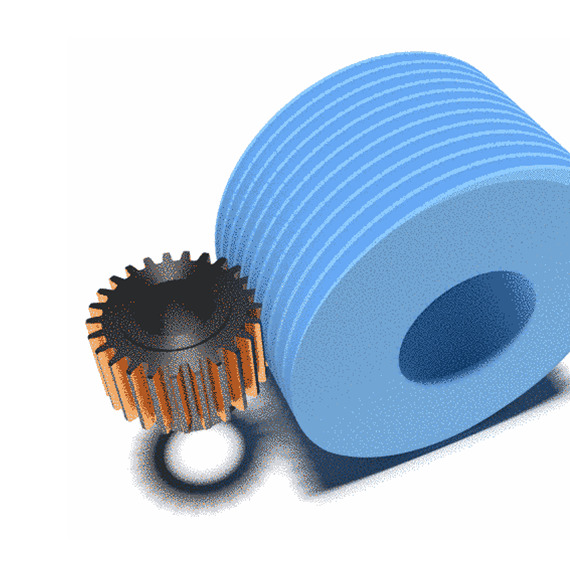

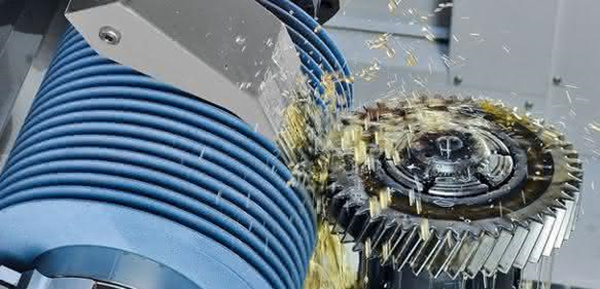

Worm grinding wheels are mainly used for grinding the worm gear and worm gear surface of the reducer.
Advantages of worm wheel grinding wheel
Speeds up to 80m/s
High gear precision
Longer grinding life
Good forming stability and low dressing frequency
Low heat generation
Maintains continuous geometry of involute and helical gears

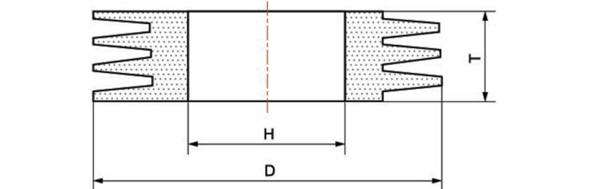

Worm Grinding Wheel Specifications
| D (mm) | T (mm) | H (mm) |
| 220 | 180 | 76.2, 90 |
| 240 | 230 | 110 |
| 250 | 50 | 127 |
| 275 | 125 | 160 |
| 300 | 63,80,100,125,145 | 160 |
| 350 | 63,84,104,125,150 | 160 |
| 400 | 84,104, | 203 |
| 450 | 80,100,125 | 203 |
| Other sizes can be customized according to customer requirements. |
