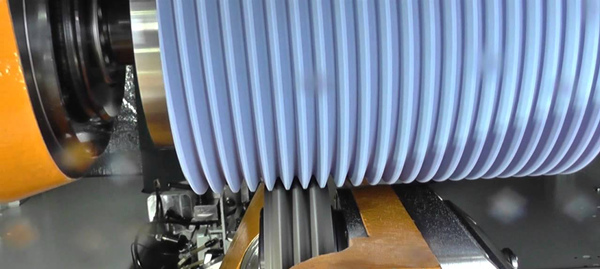

High-precision dressing tools are necessary for accurate contouring and sharpening of grinding worms and honing rings. They determine the quality of machined gears. A grinding tool for forming the tooth profile of a warm-formed universal grindstone for grinding gears. Precision electrodeposition technology, high-precision grinding surface shaping technology, and our original tooth profile design technology can stably maintain high tooth profile accuracy and reduce the cost of the gear grinding process.

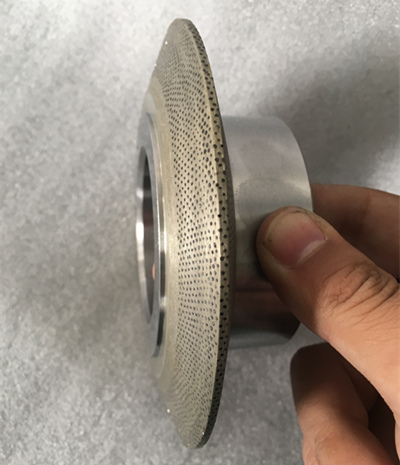

Dressing roller
Excellent, highly versatile tool design
Dressing wheels are used in pairs, each with its own powered dressing spindle
Dressing wheels can be individually angled and optimally positioned for the dressing tool, guaranteeing highest gear quality
The pitch of the grinding worm can be adjusted by varying the distance between the dressing wheels
The tooth profile depth of the grinding worm can be selected individually
Can be used across different modules if required
Root grinding can be integrated using additional design features
The tool can be reborn by regrinding or duplicating the body

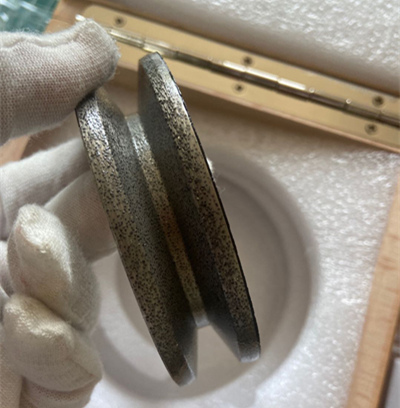

Profile roller dressers
Excellent tool design with low set-up requirements
Particularly suitable for the modular range
The full profile roller dresser is essentially used as a separate tool on a motorised dressing spindle
Suitable for single and multi-pass dressing
Each tool design is specific to the workpiece
The root grinding method is usually used
The tool cannot be regenerated by re-grinding or duplicating the body
