MT-198 PCD&PCBN tool grinder

Multifunctional PCD & PCBN tool grinder with adjustable spindle

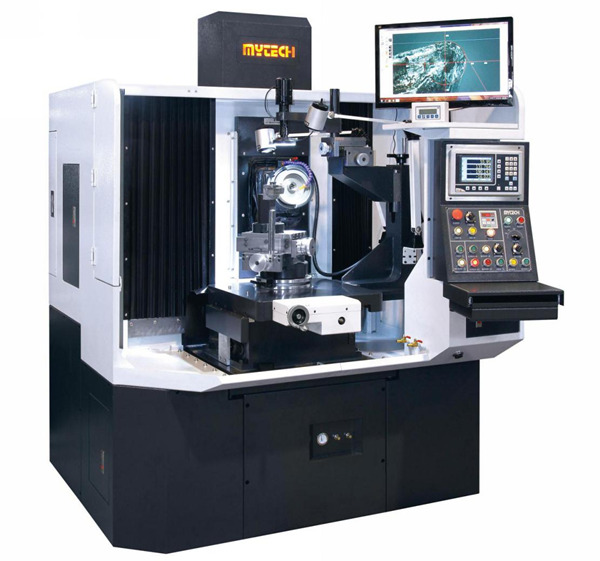

1. Introduction to MT-198 PCD&PCBN tool grinder

MT-198 spindle can be raised and lowered, B-axis break system and MPG handwheel provide more convenience for machine running test when producing special tools.

MT-198 PCD&PCBN tool grinder is a versatile machine, fully suitable for manufacturing and grinding high-quality tools.

A high-end machine tool, MT-198 has creative technology that enables it to conveniently process various special tools, for example, the spindle can move vertically, B-axis break system and MPG handwheel are convenient for setting up and running tests.

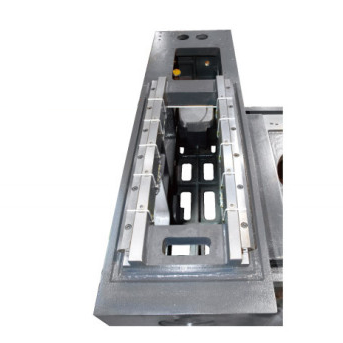

2. Roller type linear guide
1. Roller linear guide
In order to maximize stability and load-bearing capacity, the swivel axis and positioning axis are equipped with Schneeberg large span and precision linear methods. Whether it is heavy load or fine grinding, it can meet various processing requirements.

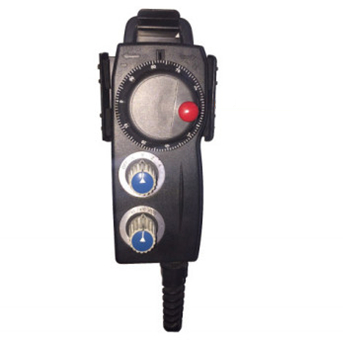

2.MPG (MT-198 standard)
The MPG handwheel provides additional convenience for machine operation testing.

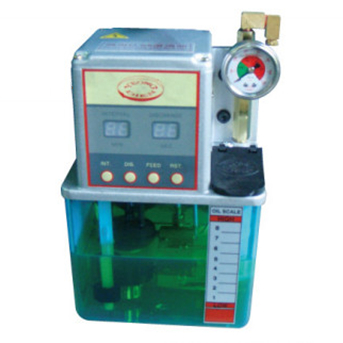

3. Automatic lubricator
Automatic lubricators lubricate the precision linear guides and rollers, ensuring high damping performance, long-term smooth feed and precision grinding.

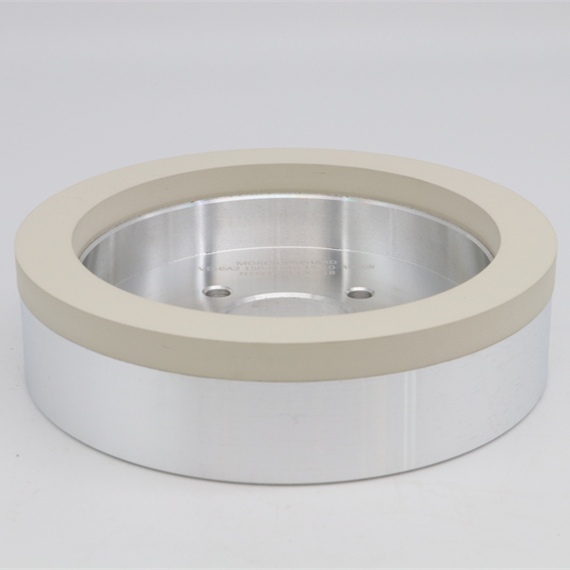

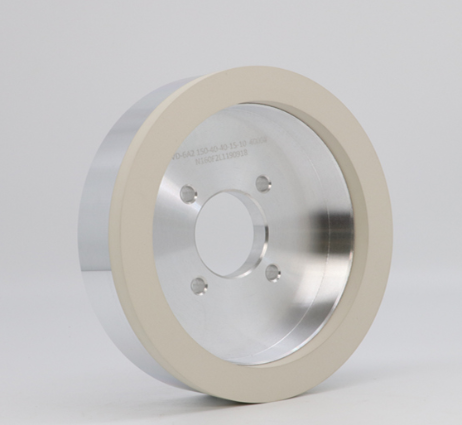

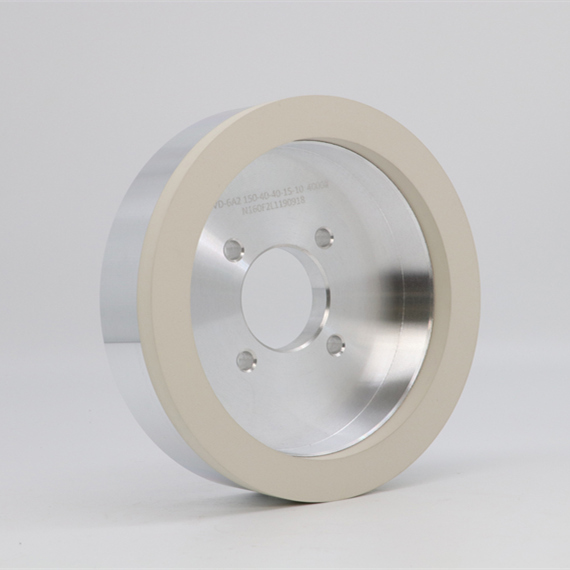

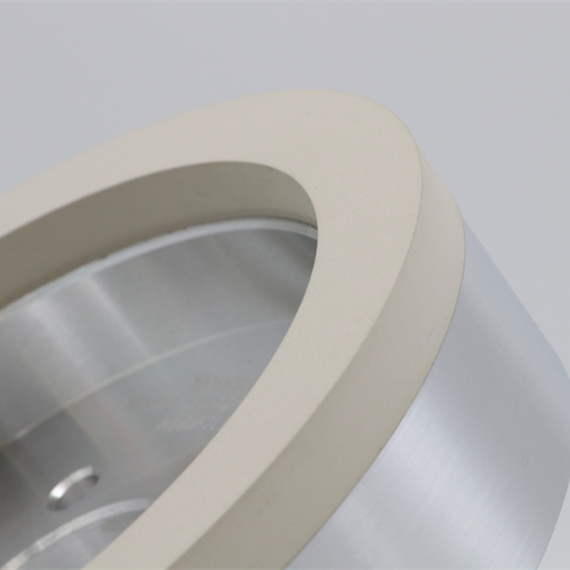

3. Grinding wheel for grinding machine - JCB ceramic diamond grinding wheel

1. The ceramic diamond grinding wheels produced by JCB are suitable for processing PCD tools, carbide blades, cubic boron nitride composite sheets (PCBN) for surface end grinding, external cylindrical and chamfer grinding. With high processing efficiency and long life, they are exported in batches to Germany, Japan, the United States and other countries with the most developed machinery industries. Their technology and R&D capabilities are leading in China.

The tool grinders supporting the first drill can inspect and grind the tools before processing, inspect them after processing, reduce the NG of the blades, and avoid unnecessary grinding and trimming.

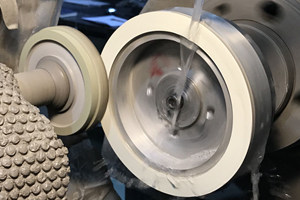

2. JCB's original vitrified diamond dressing wheel is used to dress vitrified grinding wheels. Compared with conventional grinding wheels, diamond dressing wheels have better shape retention performance.

Specifications and Standard Accessories

1. Specifications

2. Standard Accessories
