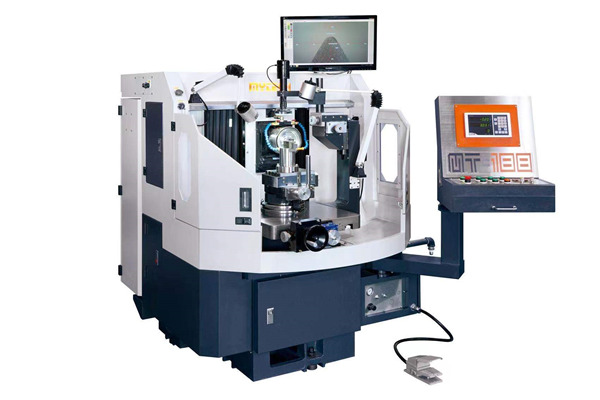

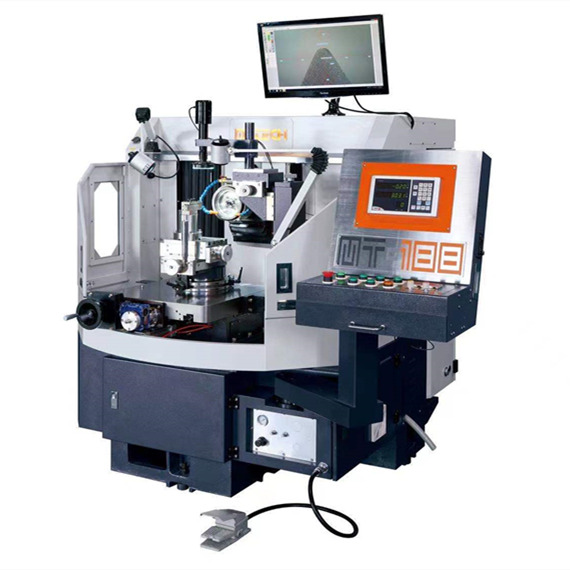

MT-188 PCD&PCBN tool grinder

High Precision Multi-Function PCD & PCBN Tool Grinding Machine

1. Advantages of MT-188 PCD&PCBN tool grinder

1.MT-188 is easy to operate and can manufacture and sharpen blades very economically.

2.It can not only grind PCD/PCBN tools, but also tungsten carbide and Hss tools.

3.MT-188 PCD & PCBN tool grinder is a versatile machine that is fully suitable for manufacturing and sharpening high-quality tools.

2. Standard accessories for tool grinders

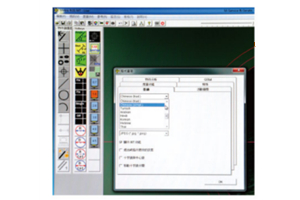

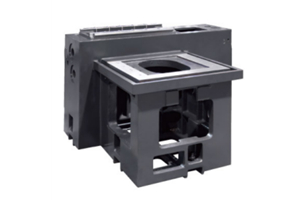

1. German brand CCD system, high-quality casting of columns and bases

The grinder is equipped with German high-precision cam systems and measuring software. The main performance features include: process measurement of multiple languages and CAD graphics and geometric figures. Accuracy and production efficiency have been greatly improved.

The main machine elements, such as the base, worktable and wheel head, have been analyzed by computational fluid dynamics (CFD) to optimize the machine structure. This design achieves the best structural dynamics effect with minimal deformation.



2. Servo motor

The brushless servo spindle motor is much better than the traditional motor, with small size, light weight, high torque, high efficiency (2.2KW), and maximum speed of 6000rpm/min. Speed 6000 rpm.

Large capacity 100 liter water tank with bag filter can keep the coolant clean for a long time to ensure the highest quality.

3. Universal work surface
The single-axis rotatable work surface and the dual-axis tiltable work surface are used for back angle grinding of tools.

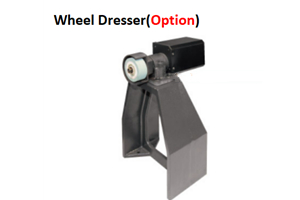

4. Grinding wheel dresser, high-precision dividing head

The bench type wheel dresser is equipped with a power motor for dressing diamond grinding wheels. The accessory now features a compact design, quick installation and reduced non-cutting idle time.

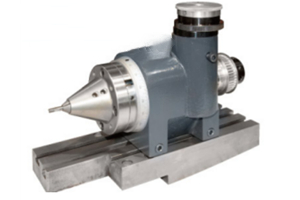

For clamping round tools, the precision ground indexing plate has 24 indexing positions in 15° increments and can also fine-tune the angle. They are often used with NANN's precision chucks and flanges to achieve optimal performance improvement.

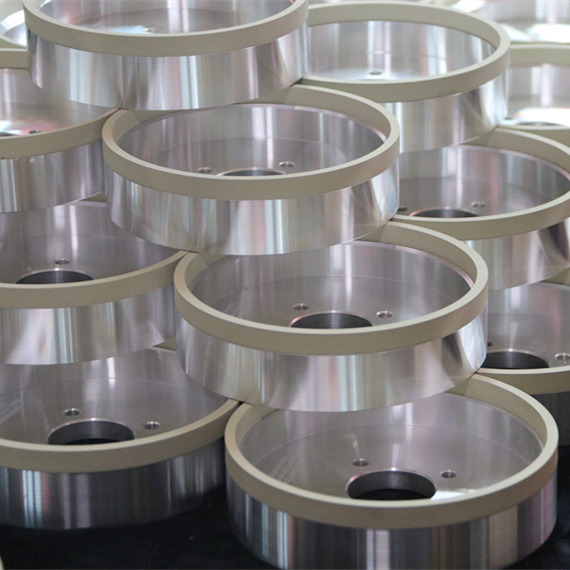

Grinding wheel for grinding machine - JCB ceramic diamond grinding wheel

(1) The ceramic diamond grinding wheels produced by JCB are suitable for processing PCD tools, carbide blades, cubic boron nitride composite sheets (PCBN) for surface end grinding, external cylindrical and chamfer grinding. They have high processing efficiency, long service life, and are exported in batches to Germany, Japan, the United States and other countries with the most developed machinery industries. Their technology and R&D capabilities are leading in China.

The tool grinders that match the first drill can inspect and grind the tools before processing, and inspect them after processing, reducing the NG of the blades and avoiding unnecessary grinding and trimming.



(2) JCB's original vitrified diamond dressing wheel is used to dress vitrified grinding wheels. Compared with conventional grinding wheels, diamond dressing wheels have better shape retention properties.

MT-188 PCD&PCBN Tool Grinding Machine Specifications

1. Specifications

2. Standard accessories:
