Position: Home > Products > PCD Drill Bits > Pile Foundation Series > Roller Cone Bit Legs

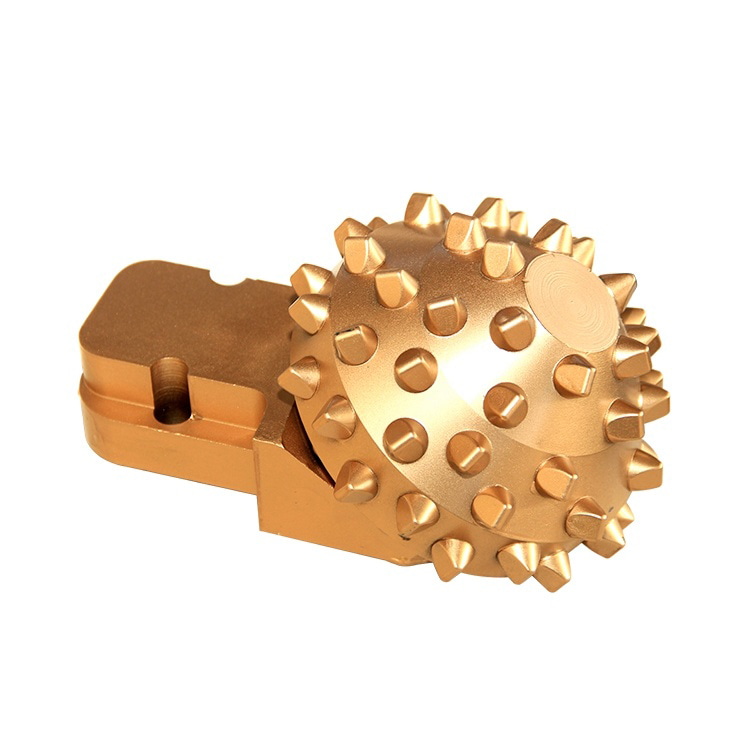

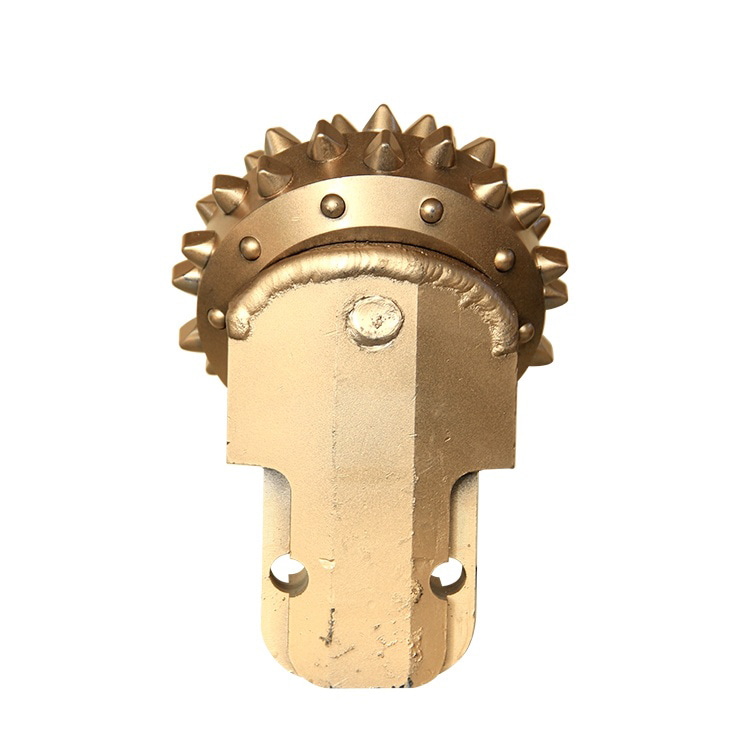

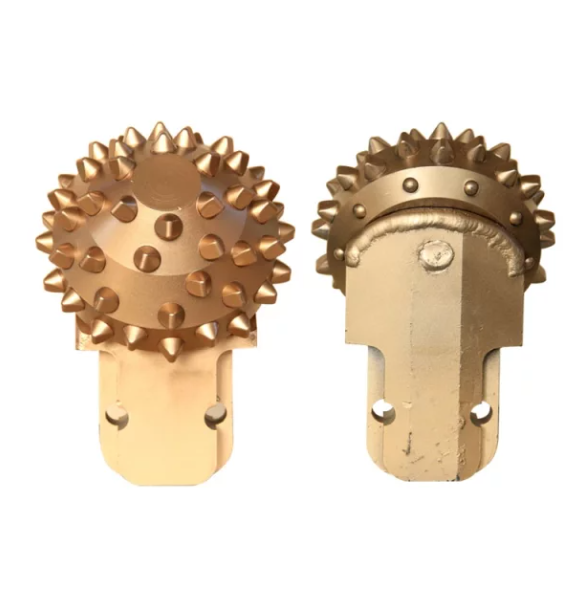

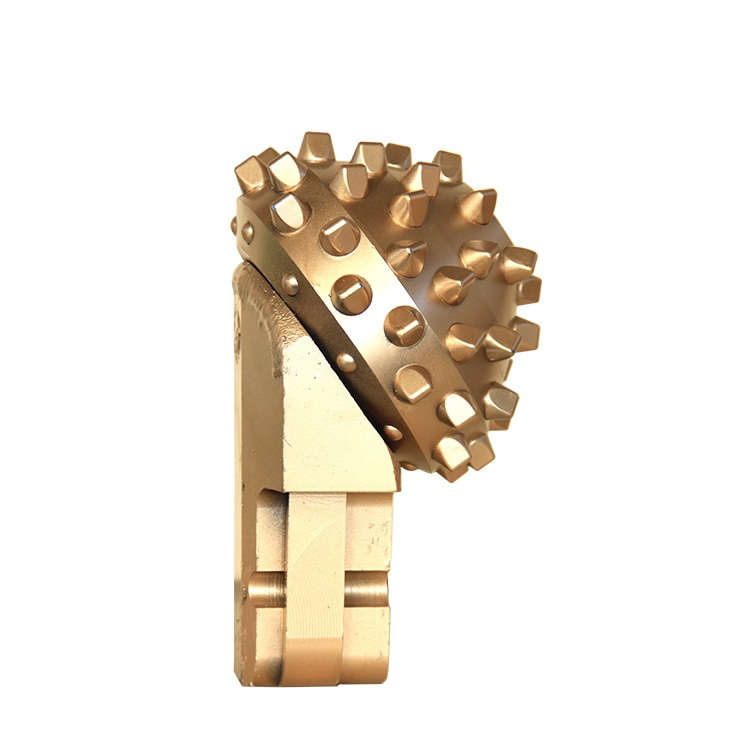

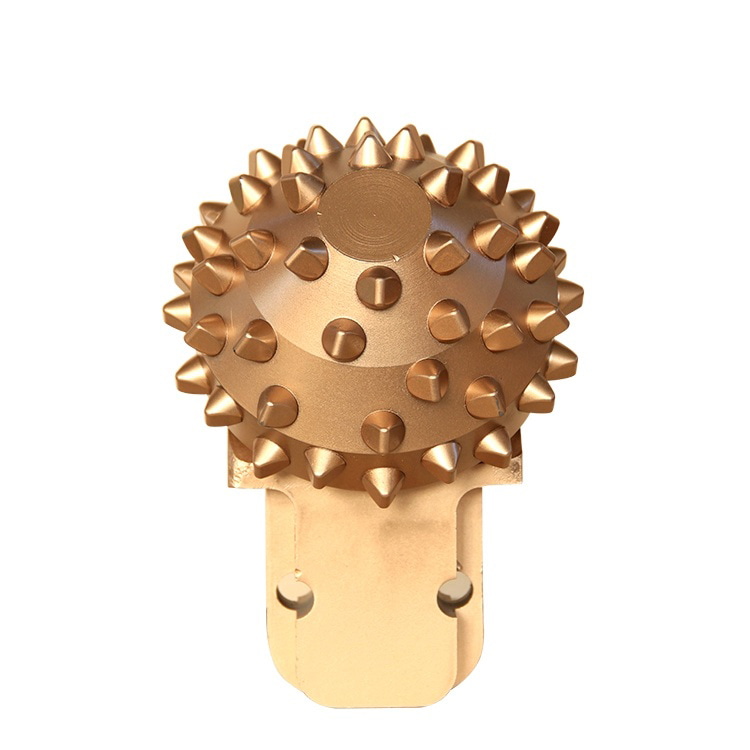

C169 Series Rotary Drilling Cutters
C169 Series Rotary Drilling Cutters
C169 Series Rotary Drilling Cutters
C169 Series Rotary Drilling Cutters
C169 Series Rotary Drilling Cutters
C169 Series Rotary Drilling Cutters
C169 Series Rotary Drilling Cutters
C169 Series Rotary Drilling Cutters
C169 Series Rotary Drilling Cutters
C169 Series Rotary Drilling Cutters

C169 Series Rotary Drilling Cutters

Tel/Wechat/Whatsapp：+8616697772369/+8616697772169

Email：[email protected]

WeChat

Whatsapp

Online Chat Send Email
Product center
Diamond Tools
Diamond Cutting Tools
Concrete & General Purpose Diamond Saw Blades
Orderly Arranged Diamond Saw Blade
Asphalt and Fresh Concrete Special Diamond Saw Blade
Road Cutting Diamond Blades
Wall Saw Blades
Diamond Core Drill Bits
Groove Cutting Diamond Saw Blade
Stone-Specific Diamond Saw Blades
Sintered Diamond Saw Blades
Diamond Wire Saw
Sintered Diamond Large Saw Blades
Sintered Diamond Small Saw Blades
Diamond Core Drills
Wet Diamond Core Drill Bits
Diamond Core Drill Bits
Dry-Cutting Diamond Core Bits (Thin-Wall)
Diamond Cutting Tips
Diamond Grinding & Polishing Tools
Diamond Grinding Wheels
Diamond Grinding Blocks
Diamond Grinding Discs
Other Products
Diamond Brazing Flakes
Brazed Diamond Drill Bits
Cutting Machines
Diamond Grinding Wheels
Ceramic Diamond & CBN Grinding Wheel
Resin Bond Diamond Tools& CBN Grinding Wheels
High-Precision Electroplated Grinding Wheels
Metal Bond Diamond & CBN Grinding Wheels
Vacuum Brazed Diamond Tools
Conventional Grinding Wheels
Dressing Tools
PCD Wear Parts dead center
Grinding & Polishing
Shou Zuan PCD Grinding Machine Distributor
PCD Drill Bits
Vertical Drilling Series
Roller Cone Bits
PCD Drill Bits
Drag Bits
Trenchless Technology Series
Pilot Drill Bits
Reamers
Cone Shell
Pile Foundation Series
Roller Cone Bit Legs
Core Drills
Other Drilling Tools
Adapter
Bit Breaker
Nozzle
PDC Anchor Drill Bits
2-Wing PDC Anchor Drill Bit
3-Wing PDC Anchor Drill Bit
Hard Rock Anchor Drill Bits
PDC Non-Coring Drill Bits
3-Wing Concave PDC Non-Coring Bit
Sintered PDC Non-Coring Bit
4-Wing Concave PDC Non-Coring Bit
3-Wing Drag-Type PDC Non-Coring Bit
4-Wing Drag-Type PDC Non-Coring Bit
Side-Wing Drag-Type PDC Non-Coring Bit
PDC Reaming Non-Coring Bit
PDC Coring Drill Bit
Single-Tube PDC Arc Coring Bit
Double-Tube PDC Ribbed Coring Bit
Hydraulic Reaming & Cavity-Forming Bit
Coal Mining Picks
Coal Mining Cutter Picks
Tunnel Boring Machine Picks
Pneumatic Drill Bits
Cross-Type Pneumatic Drill Bits
X-Type Pneumatic Drill Bits
Taper button Drill Bits
Blast Furnace Drill Bits
Coal Drill Bits
Diamond Geological Drill Bits
K-Series Diamond Drill Bits
X-Series Diamond Drill Bits
S-Series Diamond Drill Bits
Surface-Set Diamond Drill Bits
Alloy Drill Bits
PDC Drill Bits
Brazing Tools
Brazing Tools for Cast Iron Processing
Cast Iron Cutting Discs
Cast Iron Cutting
Cast Iron Cup Grinding Wheels
Cast Iron Flared Cup Grinding Wheels
Brazed Cast Iron Bullet-Shaped Grinding Heads
Brazed Cast Iron Cylindrical Grinding Heads
Brazed Cast Iron Alloy Grinding Wheels
Brazing Tools for Stone Processing
Brazed Cutting Discs
Electroplated Cutting Blades
Brazed Cup Grinding Wheels
Electroplated Grinding Discs
Electroplated Cup Grinding Wheels
Brazed Hand Grinding Wheels
Brazed Round Shank Drill Bits
Brazed Angle Grinder Drill Bits
Hex Shank Drill Bits
Brazed M14 Drill Bits
Sintered Drill Bits
Brazed Milling Cutters
Dry Polishing Pads
Tools for Metal ,Wood & Rubber
Wood-working Cutting Blades
Multi-Oscillating Tool
Brazing Alloy Grit Flat Cup Grinding Wheels
Brazed Alloy Spherical Grinding Heads
Online Chat
Details
Specification
Related products
Chat

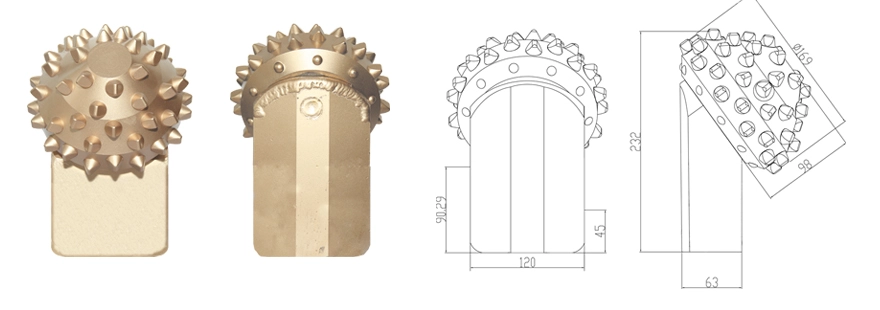

C169 Series Replaceable

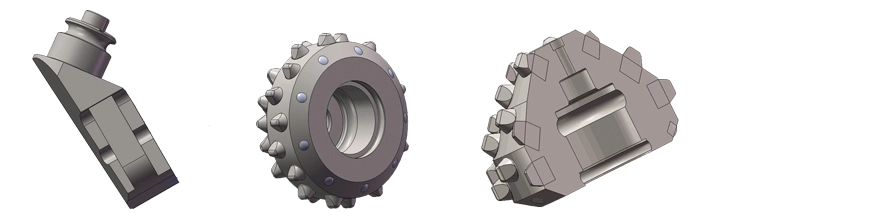

Bearing structure







C169 Series Features

1Sliding sealed bearings with diameter protection
2Larger wheel body, fully covered with cloth teeth, longer service life
3Claw tip carbide protection

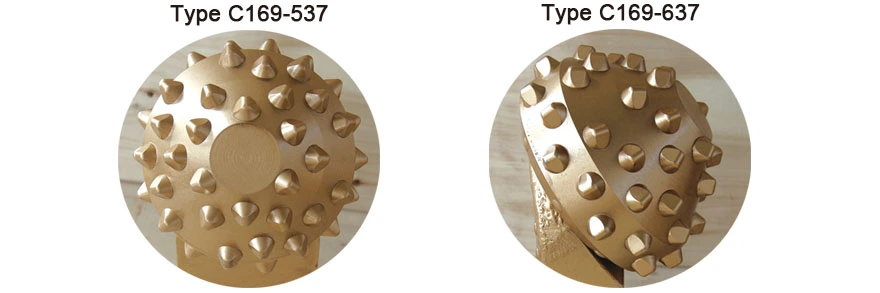

4The C169-537 model uses 17mm wedge-shaped teeth, and the C169-637 model uses 16mm cone-shaped teeth
5

C169 series cone palm is suitable for drilling hard and extremely hard rocks above 100MPa. The large diameter alloy teeth are anti-breaking and more wear-resistant, suitable for large diameter barrel drilling.




C169 Series Replaceable

Material
Gear15MnNi4Mo
Tooth Palm20CrNiMo
teethCarbide inserts
teeth
Number of Teeth/Diameter45 pieces / 15mm
Main Tooth HeightMain gear total height: 18.5mm, buried depth: 10.5mm, exposed: 8mm
Bearing and Lubrication

Bearing Wear-resistant Alloy:

A: large shaft

B: thrust surface

C: small shaft

ABC  √image.png
Oil Injection MethodNon-vacuum oil filling
