Laser Welding Technology:Diamond Saw Blades
Introduction
Diamond saw blades are essential tools in construction and stone processing industries, widely used for cutting stone, concrete, asphalt, and other hard materials. What makes these blades truly effective is the advanced technology that bonds the diamond-containing segments to the steel core—with laser weldingemerging as the superior method that has revolutionized saw blade performance and safety
Unlike traditional welding methods, laser welding creates an exceptionally strong metallurgical bond between the blade segments and core, resulting in products that can withstand the extreme conditions of modern cutting applications, including high-temperature dry cutting
What Makes Laser Welded Diamond Saw Blades Superior?
1. Unmatched Welding Strength
The most significant advantage of laser welding is the exceptional bond strengthit creates. While traditional brazing methods produce welding strengths of only 350-600MPa, laser welding achieves bending fracture strengths of up to 1800MPa—making the bond stronger than the segments themselves
This superior strength means that under extreme conditions, the segments themselves are more likely to break than the weld, virtually eliminating the dangerous problem of segment detachment during operation
2. Enhanced Safety for Demanding Applications
Laser-welded blades are specifically engineered for high-reliability applications. The continuous metallurgical bond ensures segments remain securely attached even under:
High-speed cutting conditions
Elevated temperature dry cutting
Variable load impacts
Continuous heavy-duty operation
This safety improvement is particularly crucial for large-diameter blades (exceeding 2000mm) that operate at speeds up to 20m/s, where traditional welded blades would fail under centrifugal force and thermal stress
3. Precision Engineering with Minimal Thermal Impact
Laser welding employs an extremely focused heat source with a spot diameter of just 0.2-0.3mm, creating a narrow weld seam of only 1-2mm width but with penetration depth reaching 1.5-4mm
This precision results in:
Minimal heat-affected zones
Negligible blade distortion
Preservation of diamond integrity in segments
Consistent blade geometry and cutting performance
The Laser Welding Process: Technical Excellence
Critical Technical Parameters
Achieving optimal weld quality requires precise control of multiple parameters :
Laser Power: Typically 1000-2500W for appropriate power density
Welding Speed: Ranging from 10-150cm/min depending on application
Beam Offset: Critical offset of 0.1-0.3mm toward the steel core
Inclination Angle: Optimal angle of 5°-15° for best corner welding effect
Defocus Amount: Approximately 1/3 of the plate thickness
Advanced Transition Layer Technology
A key innovation in laser welding diamond blades is the use of specially formulated transition layersbetween the segment and steel core
Recent research indicates that Fe-based transition layers demonstrate the highest tooth strength (1986.6MPa), followed by Co-based and Cu-based formulations, with Cu-based layers showing the most uniform microstructure with significantly reduced porosity
These transition layers prevent diamond graphitization during welding (critical since synthetic diamonds graphitize at 740°C-838°C) and minimize thermal stress cracks
Comparison with Traditional Welding Methods
Table: Laser Welding vs. Traditional Brazing Methods
Characteristic | Laser Welding | Traditional Brazing |
Bond Strength | 1800MPa (metallurgical combination) | 350-600MPa (physical combination) |
Thermal Impact | Minimal heat-affected zone | Significant thermal distortion |
Safety Profile | Excellent for dry cutting | Risk of segment detachment at high temperatures |
Production Efficiency | Approximately 2 minutes per blade (300mm, 21 segments) | Slower production rates |
Material Cost | No silver solder required | Consumes expensive silver solder pads |
Industry Applications and Future Directions
Laser-welded diamond blades have become the standard for professional applications where reliability cannot be compromised
The technology continues to evolve, with research focusing on:
Large-diameter blades(1600-2200mm) for monumental stone cutting
Advanced transition layer formulationsusing pre-alloyed powders
Real-time quality monitoringsystems during welding
Nanotechnology applicationsin segment composition
Conclusion
Laser welding represents a revolutionary advancement in diamond saw blade technology, offering professionals unprecedented safety, reliability, and performance. By creating a metallurgical bond that exceeds the strength of traditional physical connections, this technology enables blades to withstand the most demanding cutting applications while significantly reducing the risk of segment detachment accidents
For construction and stone processing professionals, choosing laser-welded diamond blades means investing in both productivity and worksite safety—a combination that delivers long-term value and peace of mind in challenging operational environments.For more information about our laser-welded diamond saw blade products, please contact our technical specialists who can recommend the ideal blade configuration for your specific application requirements.

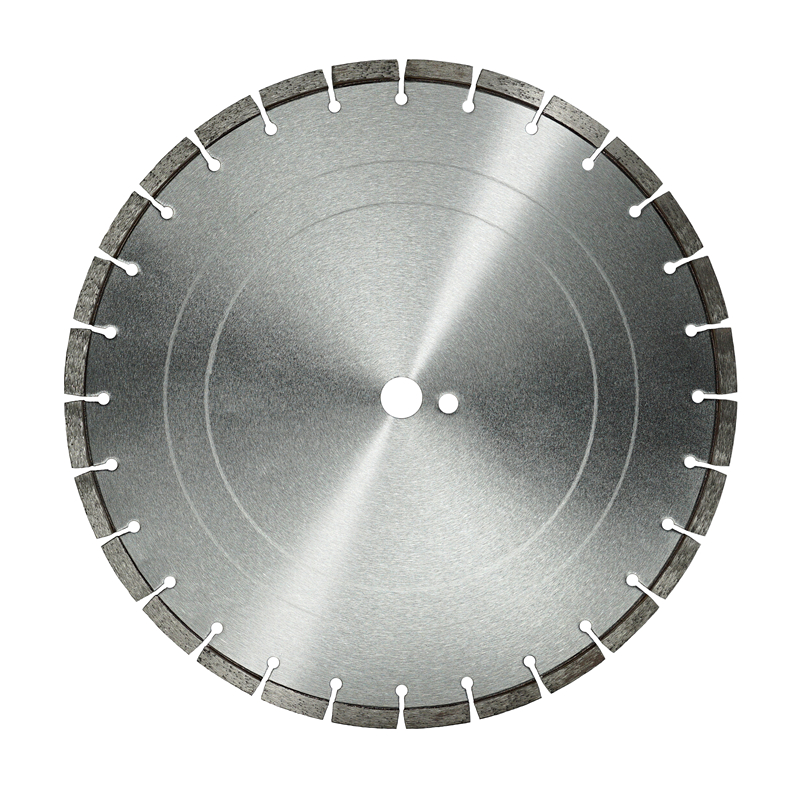

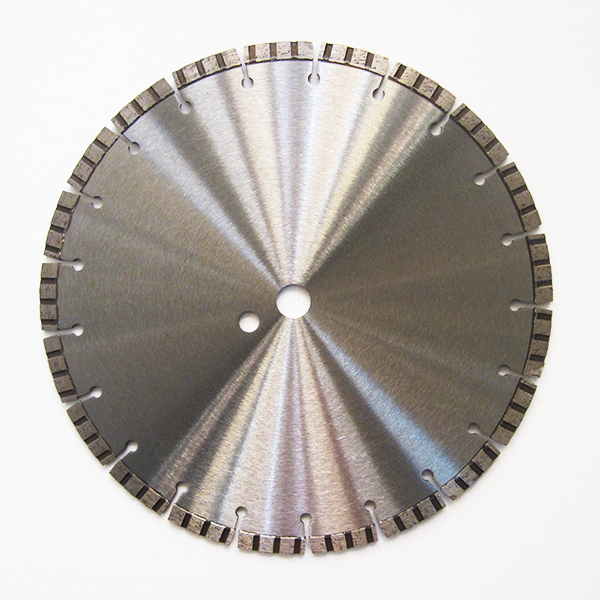

LASER WELDS – DRY CUT/wet cut

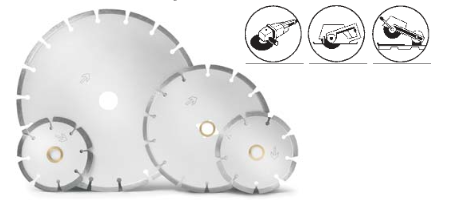

Ideal for cutting cured and reinforced concrete, roof tile, red brick and other building materials.
