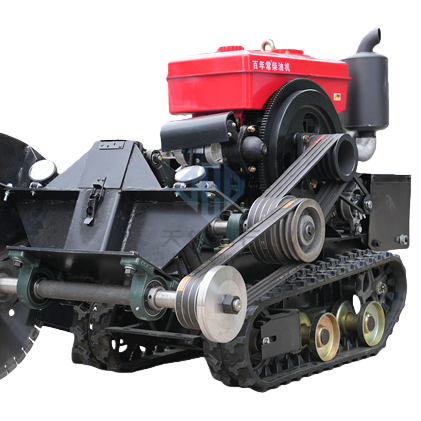

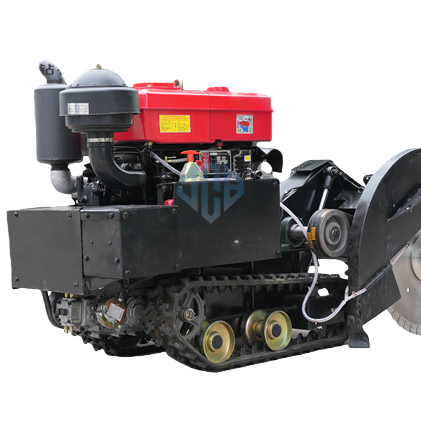

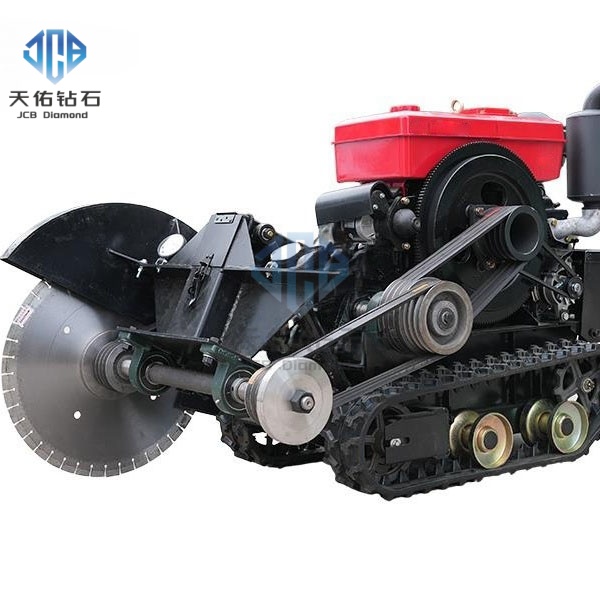

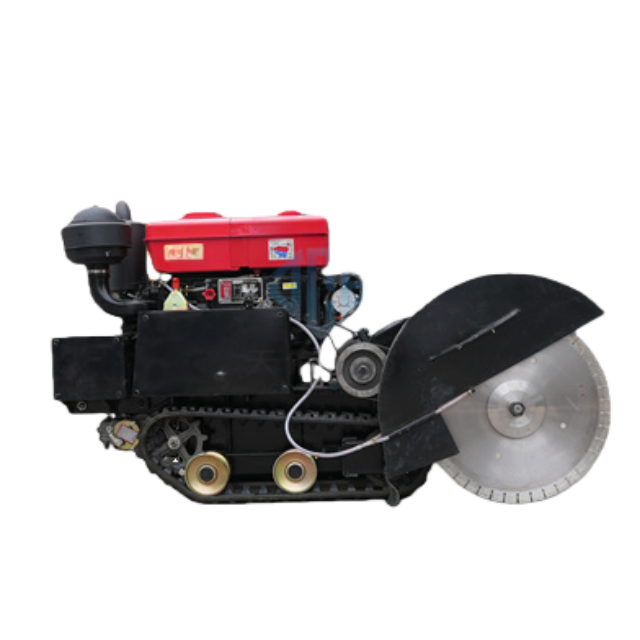

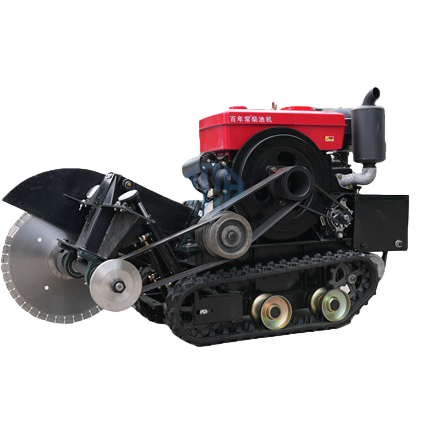

Track-Mounted Road Cutting Machine
Product Description
The Track-Mounted Road Cutting Machine is a fully automatic, remotely controlled cutting machine with excellent dynamic performance. Remote operation significantly ensures operator safety, enhances construction efficiency, and meets reliable construction requirements.
Application Scope
Primarily used for cutting operations on asphalt, cement concrete pavement, concrete products, stone, etc., in various industries such as municipal works, construction, building materials, telecommunications, roads, bridges, water supply, power pipelines, and airport construction.
Key Features & Advantages
Track Mobility:Equipped with rubber tracks for self-propelled movement, enabling effortless operation. Features a travel lock function to prevent rolling.
High Efficiency:Delivers efficient, smooth, and stable cutting performance.
Remote Control:Allows remote control for forward/reverse movement, left/right turning, throttle adjustment, and one-touch raising/lowering of the cutting head. Offers convenient and easy operation.
Versatile Saw Blade Installation:Designed for left or right-side blade mounting, with the capability for dual blade installation.
Wide Applicability:Suitable for cutting various ground surfaces and pavements.
Adjustable Cutting Depth:Accommodates different blade sizes (adjustable), with a maximum cutting depth of 50 cm.
Product Details
Alloy Saw Blade:Hardened alloy saw blade with diamond segments ensures sharp and fast cutting.

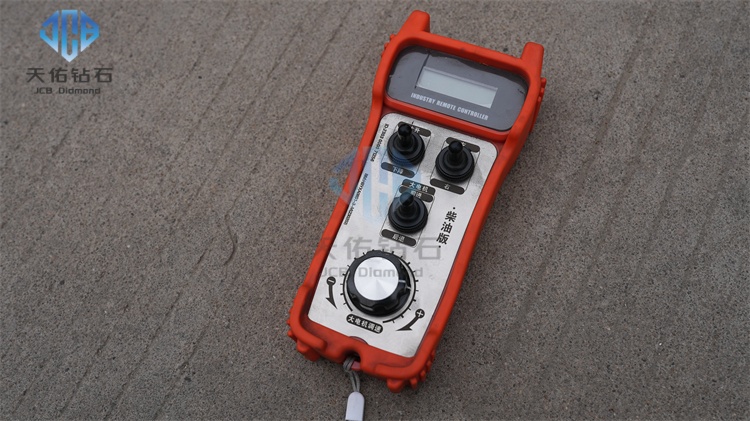

Remote Controller:Comprehensive remote control functionality, simple to operate.
Precision Spindle:High-grade bearing spindle ensures smooth transmission, reliable operation, and long service life.

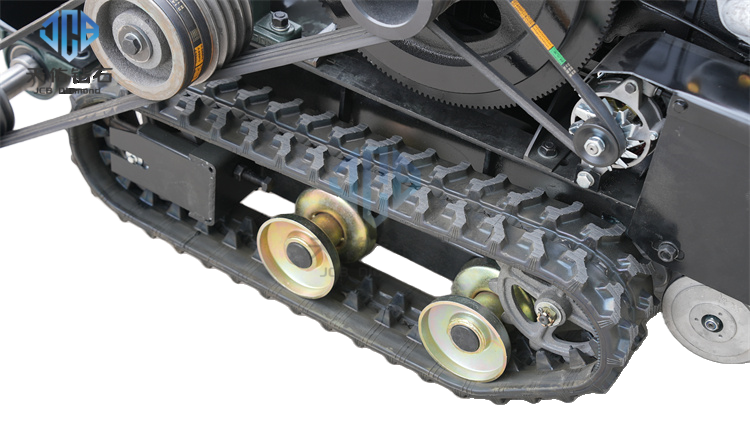

Reinforced Tracks:Thickened rubber tracks offer excellent passability, anti-slip properties, wear resistance,strong grip, and stable operation.
Diesel Power:Powered by a CHANGCHAI (China) 35 HP water-cooled diesel engine, providing sufficient power and stable operation.
Product Parameters
Parameter | Specification |
Product Name | Track-Mounted Road Cutting Machine |
Approx. Weight | 650 kg |
Saw Blade Size | Min. 400 mm / Max. 1.2 m |
Cutting Capacity | Max. Depth: 50 cm; Speed: ~100 meters/hour (at 10 cm depth) |
Overall Dimensions (L*W*H) | 1.6 m *1.0 m *1.1 m |
Engine Power | 35 HP Diesel |
Track Width | 15 cm |
Track Length | 100 cm |
Starting Method | Electric Start |
Operation Mode | Remote Control |
