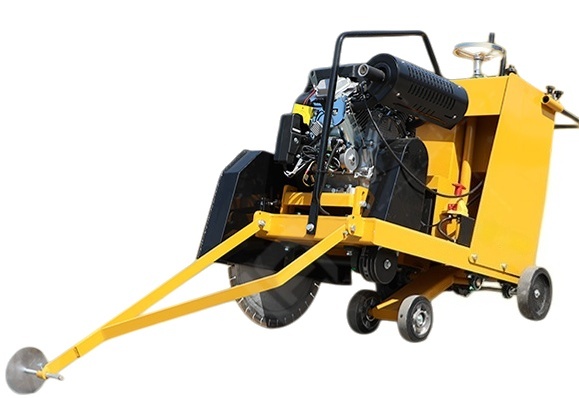

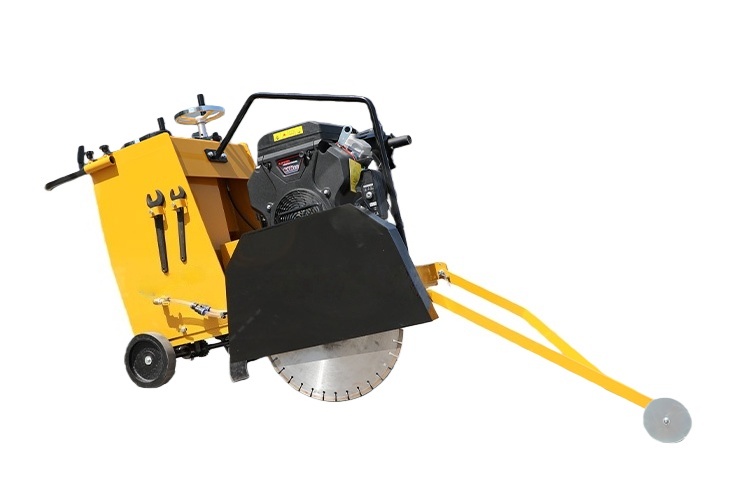

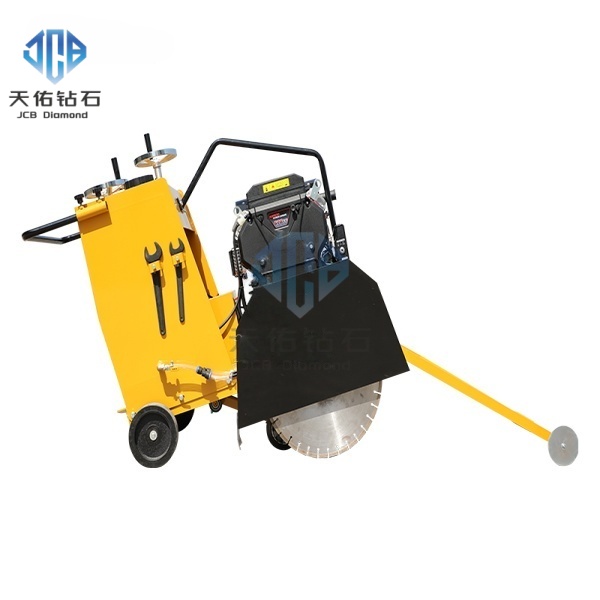

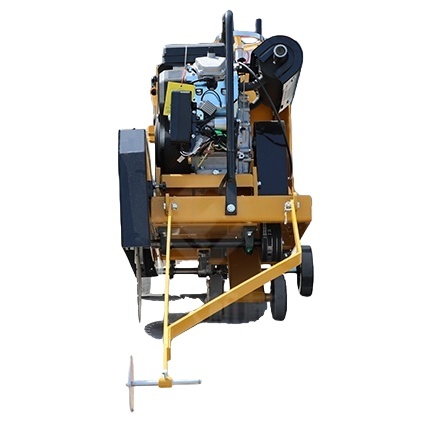

Product Name: Large-Diameter Walk-Behind Road Cutting Machine
Product Overview
This large-diameter road cutting machine is a robust, walk-behind industrial solution designed for high-performance concrete and asphalt pavement cutting. Featuring a bright yellow, mobile rigid box-type frame for superior stability, it ensures straight, precise cuts while effectively resisting warping and vibration. The machine is engineered for demanding applications in road construction, repair, and utility trenching.
Core Features & Advantages
High-Capacity Cutting:Equipped to handle large-diameter blades (600mm/700mm), achieving a maximum cutting depth of 260mm. The mechanical hand-crank drive allows for precise depth adjustment.
Powerful Performance:Powered by a LONCIN 2V78-2 gasoline engine, delivering 13.4KW (approx. 18 HP) of reliable power for efficient cutting operations.
Semi-Automatic Operation:Features a semi-automatic propulsion system that allows the machine to move forward and backward, reducing operator effort and enhancing productivity.
Integrated Dust Suppression System:Includes a large-capacity 50L steel water tank (more durable than plastic alternatives) for effective blade cooling and dust control, extending blade life and ensuring a cleaner worksite.
Enhanced Stability and Safety:
Integrated Blade Guard:A one-piece safety guard protects the operator from flying debris.
Guidance Wheel:Ensures the machine tracks straight, improving cutting accuracy and work efficiency.
Rubber Walking Wheels:Multi-layer, waterproof, and high-elasticity wheels provide excellent grip and prevent displacement during cutting.
For more information,please visit our Facebook.
Whatsapp:+852 9062 5710
Technical Parameters Table
Parameter | Specification | Notes |
Model | Large-Diameter Walk-Behind Cutter | |
Overall Dimensions (LWH)** | 1350 * 680 * 1140 mm | Compact footprint |
Weight | 120 kg | |
Blade Diameter | 600 mm / 700 mm | Optional |
Max. Cutting Depth | 210 mm / 260 mm | Corresponding to blade size |
Engine Model | LONCIN 2V78-2 | Gasoline |
Power Output | 13.4 kW | |
Starting Method | Electric Start (12V) | Easy operation |
Fuel Tank Capacity | 16 L | |
Water Tank Capacity | 50 L | Steel construction |
Propulsion | Semi-Automatic (Forward/Reverse) | |
Drive Mode | Mechanical Hand-Crank | |
Lifting Method | Manual | |
Frame Type | Mobile Rigid Box-Type | Ensures straight cuts, resists vibration |
