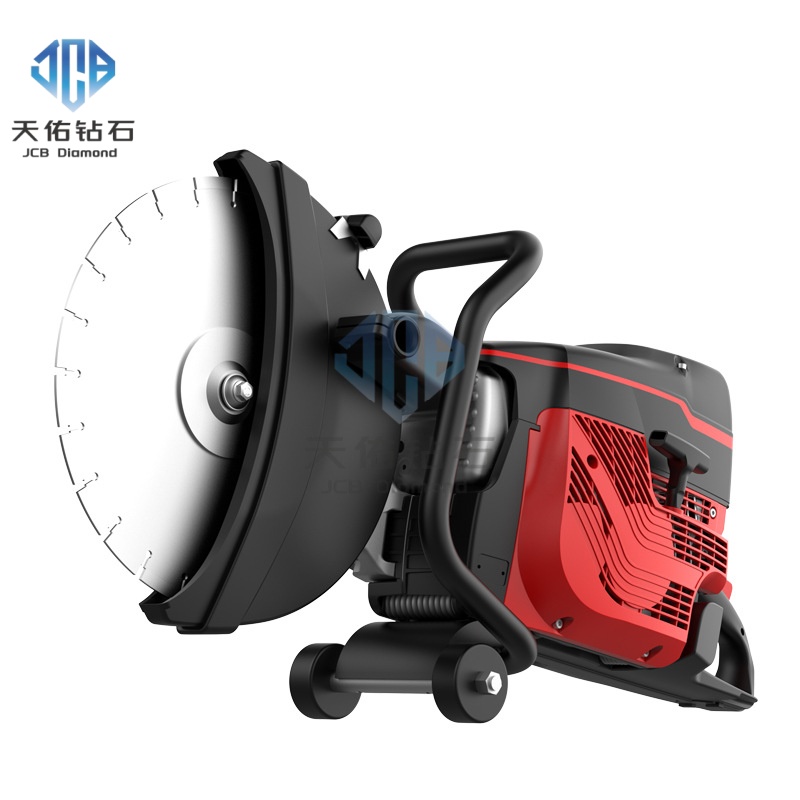

Product Introduction: JCB-400 Industrial-Grade Handheld Power Cutter

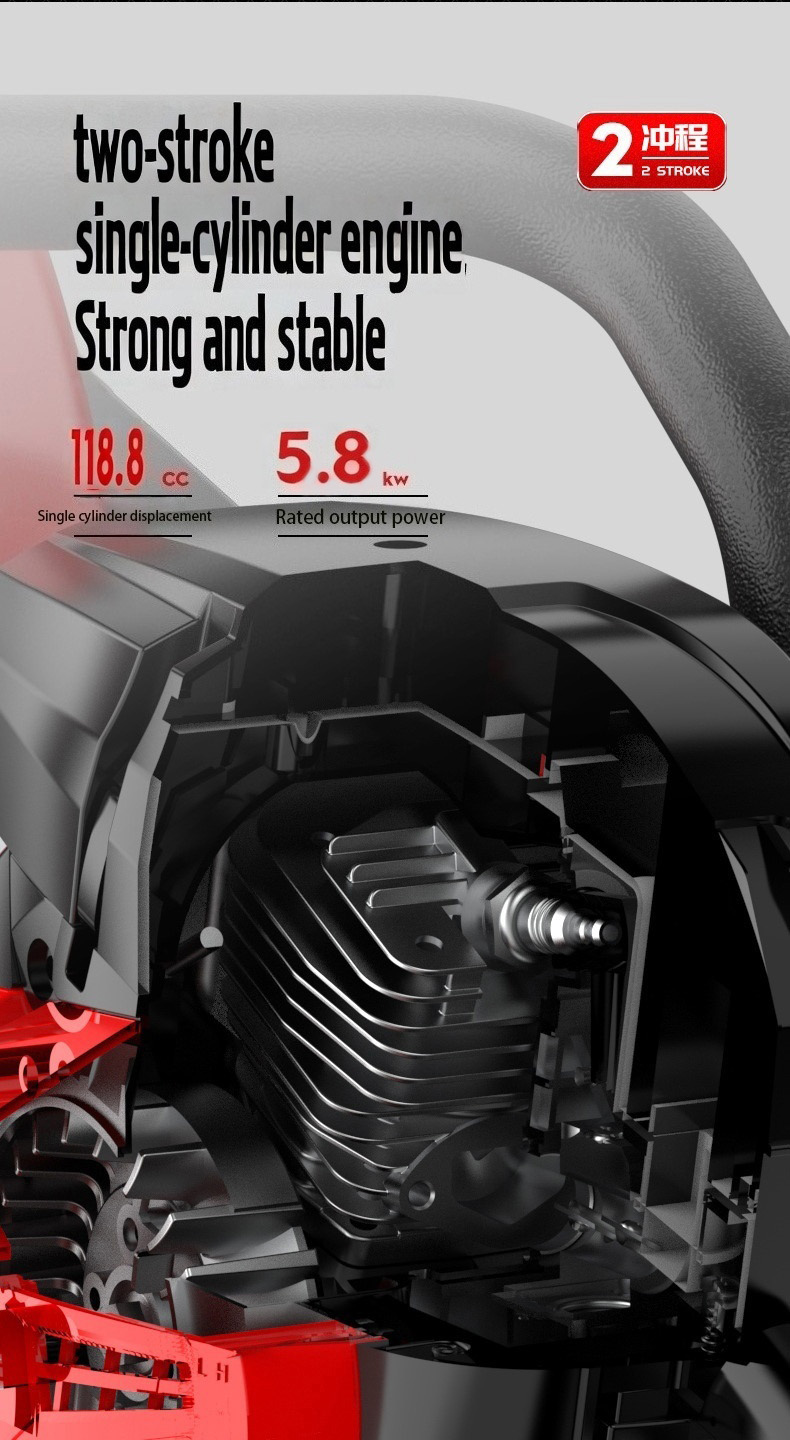

The JCB-400 is an industrial-grade handheld power cutter engineered for the most demanding applications in construction, roadwork, and heavy demolition. It is distinguished by its exceptional power output, derived from a high-performance 118.8cc, two-stroke, single-cylinder enginethat delivers a robust 5.8 kWof rated power. This substantial engine capacity ensures superior torque and cutting speed for challenging materials like reinforced concrete, stone, and asphalt.

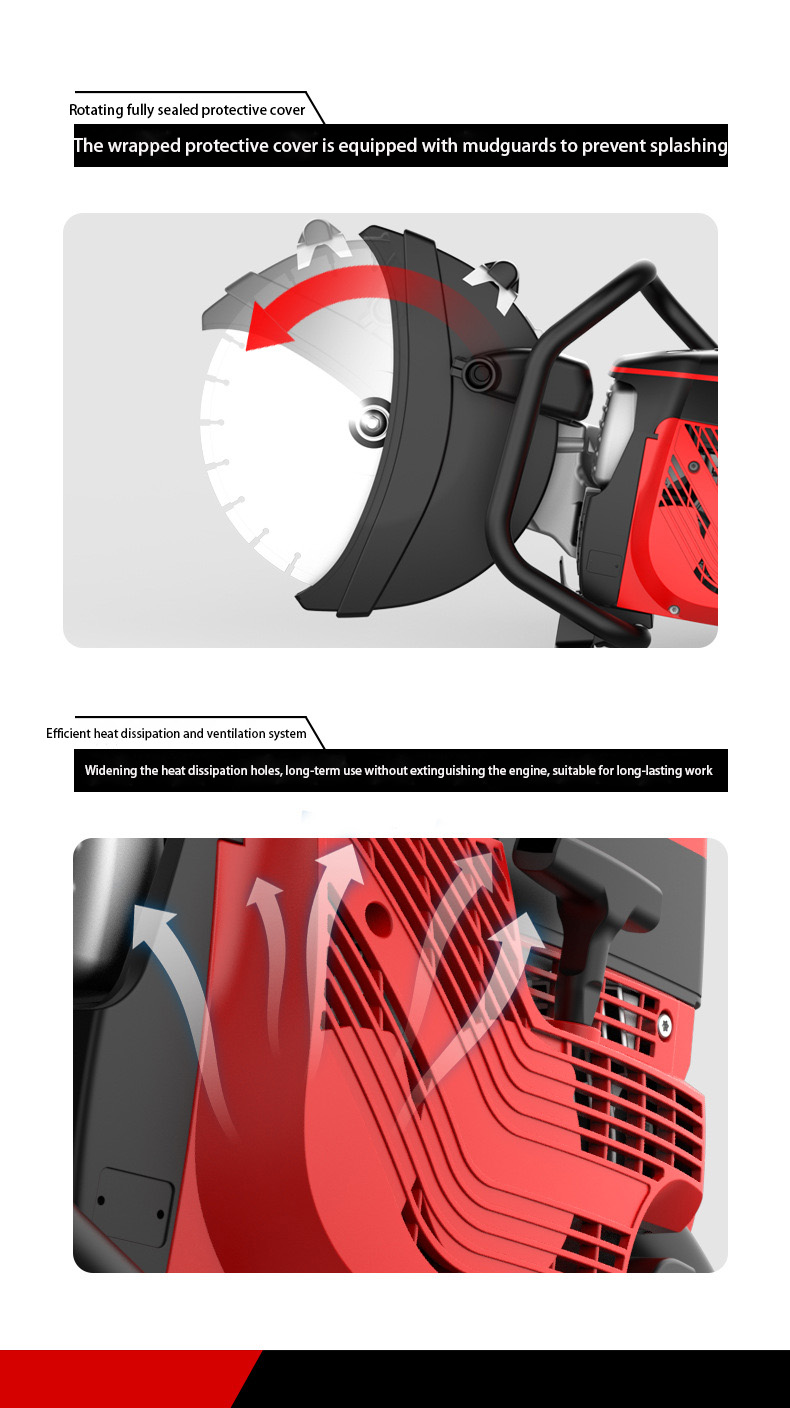

A critical design feature is the Enhanced High-Efficiency Cooling and Ventilation System. The engine housing is equipped with strategically widened heat dissipation holes that facilitate optimal airflow, effectively managing thermal load. This advanced system prevents overheating, enabling continuous, long-duration operation without power loss or engine shutdown, which is essential for high-productivity work sites.

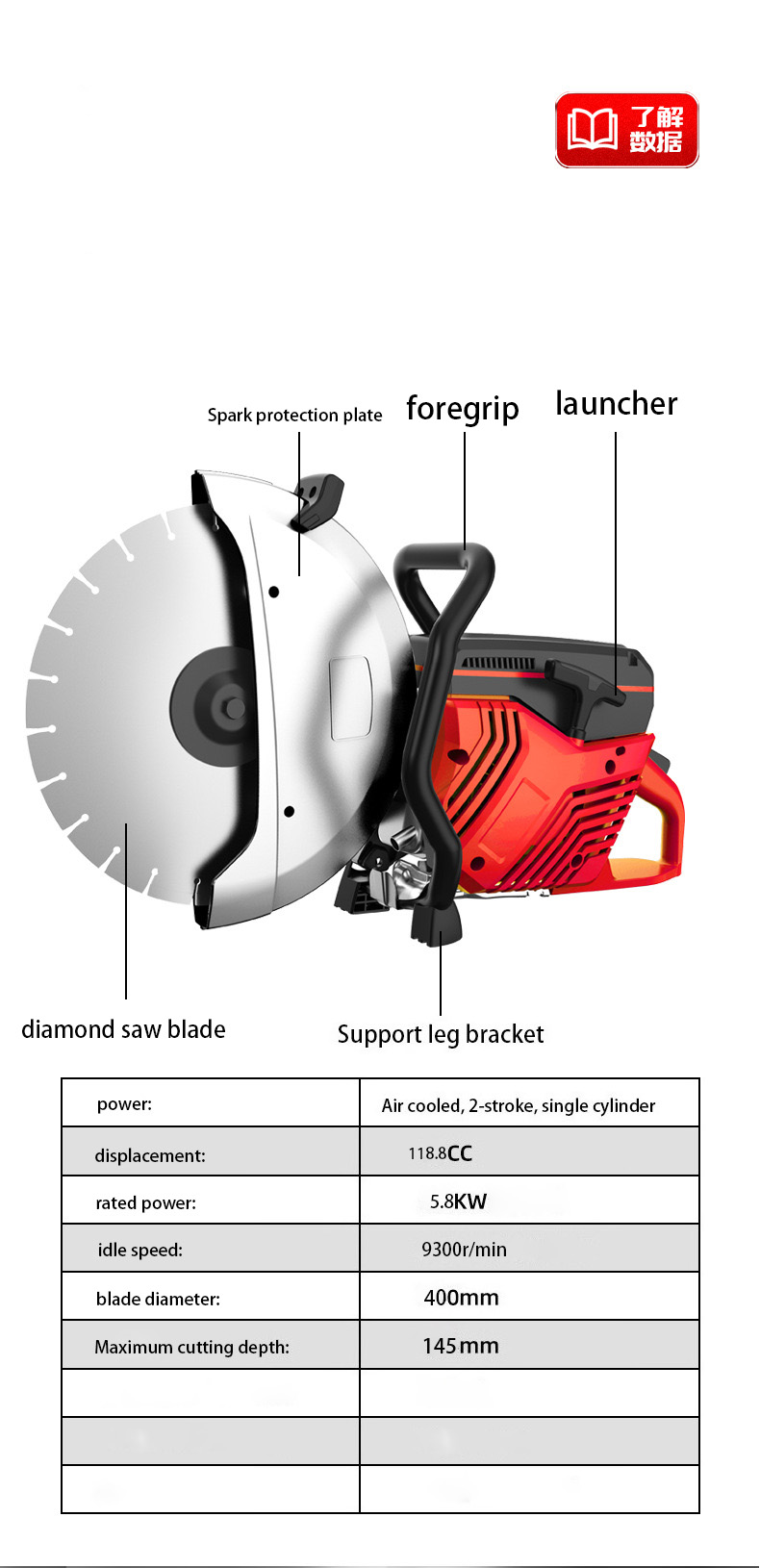

Product Specifications Table: Model JCB-400
Category | Specification |
Model | JCB-400 |
Engine Type | Air-cooled, 2-Stroke, Single-Cylinder |
Displacement | 118.8 cc |
Rated Power | 5.8 kW |
Idle Speed | 9300 r/min |
Blade Specification | Diamond Saw Blade |
Blade Diameter | 400 mm (16") |
Maximum Cutting Depth | 145 mm (5.7") |
Key Safety Features | • Spark Protection Plate |
Key Design Features | • Enhanced High-Efficiency Cooling System |
Intended Use | Heavy-duty cutting of concrete, asphalt, reinforced masonry, and stone. |
Key Differentiators from Previous Models:
Significantly larger engine displacement (118.8 cc vs. 65 cc).
Substantially higher rated power (5.8 kW vs. 2.9 kW).
Larger diamond saw blade (400 mm vs. 350 mm) for increased cutting depth.
