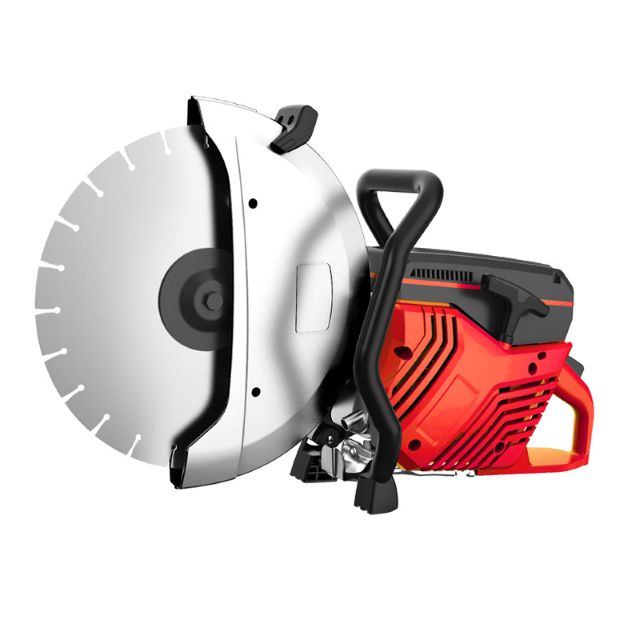

Product Introduction: Professional Heavy-Duty Handheld Concrete Cutter

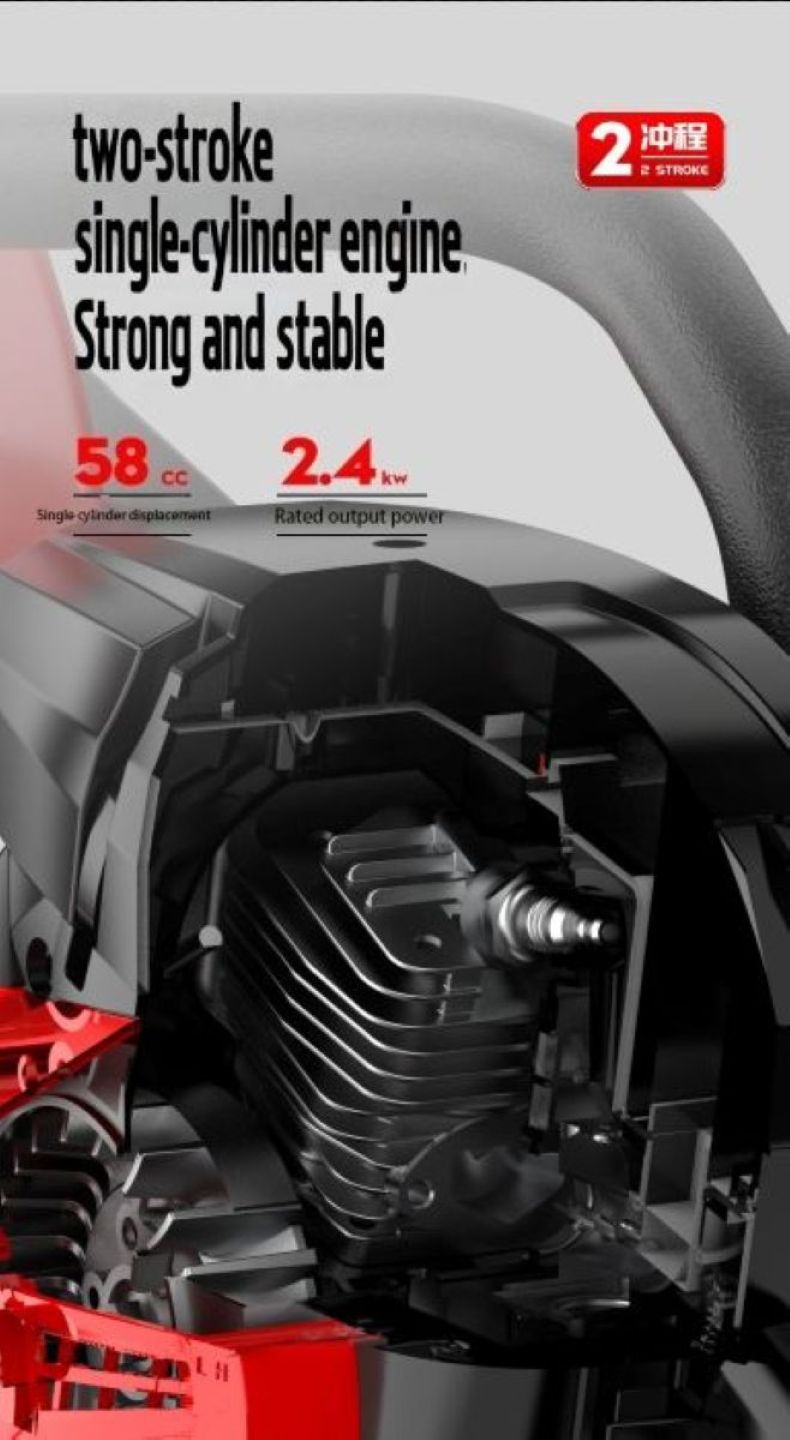

This professional-grade handheld cutter is engineered for robust performance and exceptional durability in demanding cutting applications, such as concrete, asphalt, and masonry. Its core is powered by a high-efficiency, two-stroke, single-cylinder engine, delivering reliable power for continuous operation.

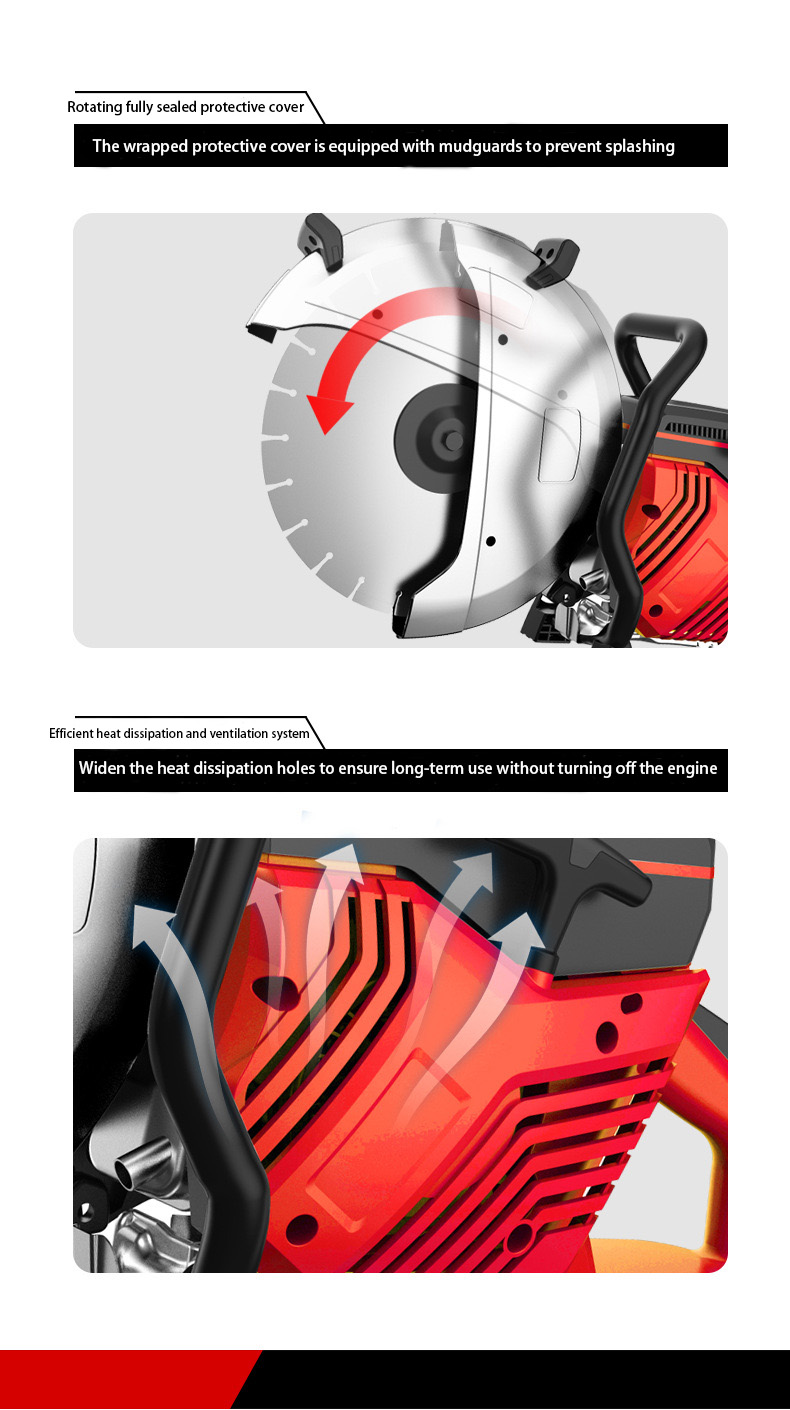

A key feature is the Cooling and Ventilation System. This advanced design incorporates widened heat dissipation holes and optimized airflow pathways, ensuring the engine maintains an optimal operating temperature. This prevents overheating and engine shutdown, making the tool suitable for long-lasting, intensive work sessions.
Safety and operator convenience are paramount. The machine is equipped with a fully sealed, rotating protective cover that includes integrated mudguards to effectively prevent debris and slurry splashing. For precise and stable cuts, it features an adjustable support leg bracket. The cutting performance is driven by a large 300mm diamond saw blade, capable of achieving a maximum cutting depth of 105mm, ensuring high productivity on the job site.
Product Specifications Table
Feature | Specification |
Engine Type | Air-cooled, 2-Stroke, Single-Cylinder |
Displacement | 58 cc |
Rated Power | 2.4 kW (3.2 HP) |
Idle Speed | 2800 - 3200 r/min |
Saw Blade Rotation Speed | 4800 r/min |
Blade Type | Diamond Saw Blade |
Blade Diameter | 300 mm |
Maximum Cutting Depth | 105 mm |
Oil/Gasoline Mixture Ratio | 550 ml |
Gross Weight | 12.5 kg / 11.5 kg |

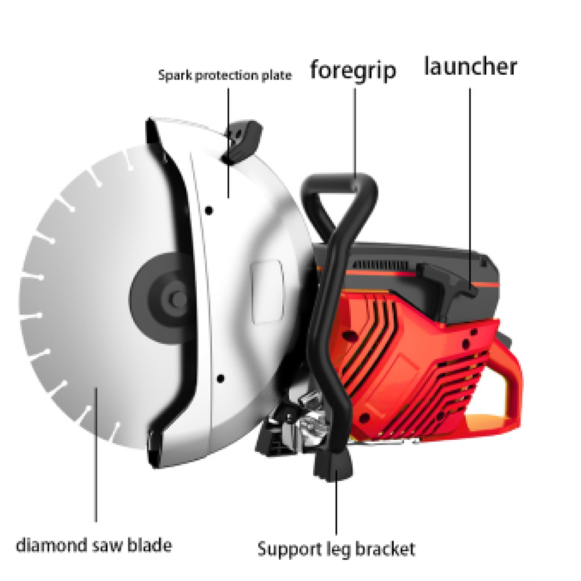

Key Features | Cooling & Ventilation System, Spark Protection Plate, Rotating Fully Sealed Protective Cover, Support Leg Bracket |
