Product Overview

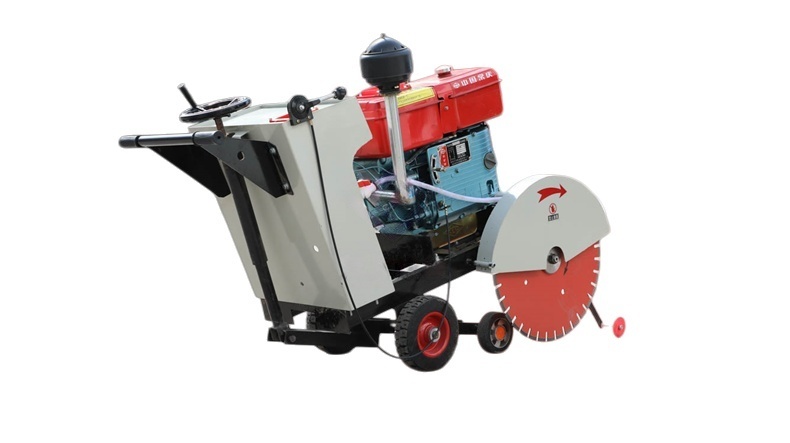

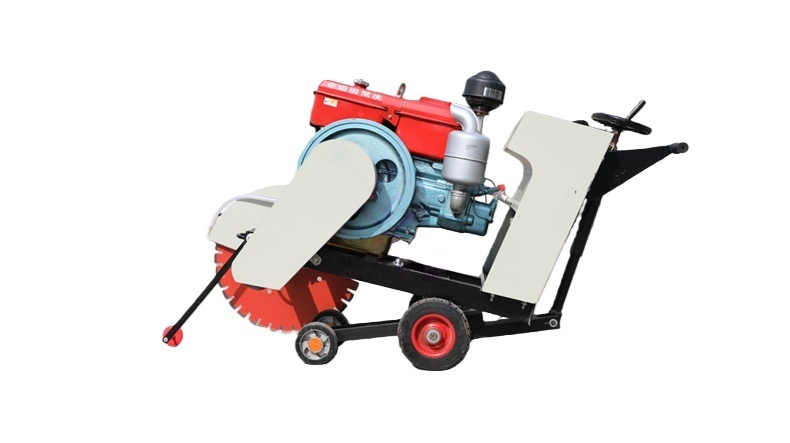

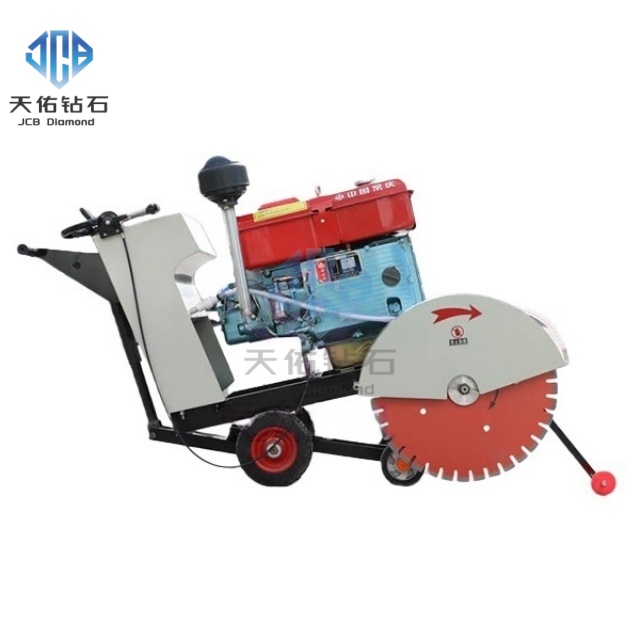

The JCB-600 Water-Cooled Diesel Road Cutting Machine, also known as a concrete pavement joint cutter, is widely used for cutting asphalt, cement concrete pavement, concrete products, stone, and other materials. It is applicable in various industries including municipal works, construction, building materials, highways, bridges, water supply, thermal pipelines, and airport construction. This machine boasts excellent dynamic performance, high working efficiency, and reliable operation.
Product Advantages
Fast Cutting & Powerful:Delivers robust power with configurable power options to meet diverse needs.
Adjustable Cutting Depth:The machine body can be modified to accommodate larger diameter blades for increased cutting depth.
Multi-Purpose Integrated Spindle:Features a versatile spindle shaft suitable for both grooving and cutting applications.
High-Quality Material:Constructed from superior materials that are lightweight, high-hardness, durable, and offer a long service life.
Removable Water Tank:Equipped with a detachable water tank featuring an extra-large filler opening and quick-connect couplings, making water refills easy and straightforward.
Product Features
Compact Structure:Easy to transport and handle.
Hydraulic Motor:Lightweight, compact size, and allows for flexible transmission layout.
Excellent Performance:Provides strong power, low vibration, and low noise levels.
Stable Operation:Reliable and consistent performance.
Powerful & Efficient:Offers strong power, stable performance, fuel efficiency, and easy starting.
Typical Applications
Soft and hard cutting of transverse and longitudinal joints during cement pavement construction.
Localized cutting of damaged pavement surface or base layer during road pothole repair; can be used in conjunction with a pavement breaker for removing old/damaged pavement sections.
Can be used for sealing joints along straight-line cracks in cement pavements when fitted with dry-cutting blades.
Particularly suitable for deep cutting operations on airport runways and highway cement pavements.
Technical Parameters
Parameter | Specification |
Diesel Engine Power | 15 HP |
Blade Diameter | 600 mm |
Max. Cutting Depth | 200 mm |
Blade Linear Speed | 47 ~ 59 m/s |
Water Tank Capacity | 50 L |
Shipping Weight | Approx. 260 kg |
Packaging Dimensions | 1500 x 850 x 900 mm |
